Stimulation genv3
About the Stimulation genv3 PCB
Stimulation genv3 is an open source PCB design by AErbsloeh, published on GitHub under the MIT license. It is a 4-layer board measuring 147.2 × 96.3 mm, with 120 components from 38 distinct parts.
Other key parts include the AD8421A, ADG1419BRMZ, ADP5071AREZ-R7, AD5754AREZ and ADA4610-2ARMZ. By type, the board carries 46 capacitors, 27 resistors, 22 ICs, 11 connectors, 4 switches and 2 inductors.
From the project

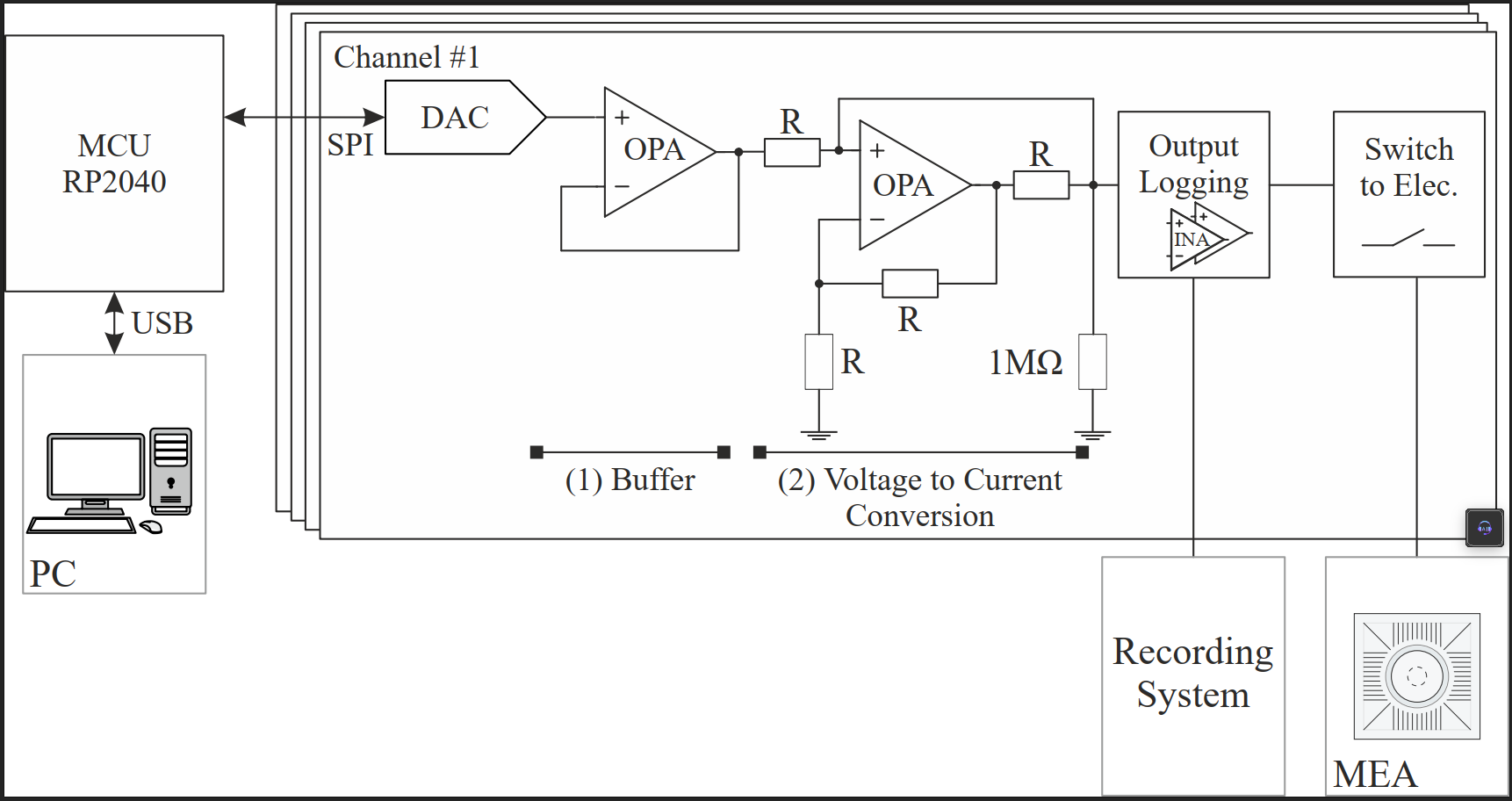

Hardware Design Files for Experimental Stimulation Platform (Gen 3)
Alternatively, static characterization can be done using MicroPython control code on Pico and commuicationg via UART from computer using another python script. See directory 3staticcharacterization_control. In general if speed is not an issue, e.g. low frequency rectangular waveforms, MicroPython control is an easy to use alternative.
Main components on the Stimulation genv3
Stimulation genv3 bill of materials (BOM)
120 components, 38 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | AD8421A | RM_8_ADI-M | IC1, IC2, IC4, IC5, IC7, IC8, IC10, IC11 |
| 4 | ADG1419BRMZ | SOP65P490X110-8N | IC3, IC6, IC9, IC12 |
| 1 | ADP5071AREZ-R7 | RE-20-1_ADI-L_ADP5071 | U1 |
| 1 | AD5754AREZ | RE_24_ADI | U2 |
| 4 | ADA4610-2ARMZ | RM-8_ADI-L | U3, U4, U7, U8 |
| 1 | ADR421ARMZ | MSOP-8_3x3mm_P0.65mm | U9 |
| 1 | PMOD | PinHeader_2x06_P2.54mm_Horizontal | U10 |
| 2 | DFSL240 | D_PowerDI-123 | U11, U12 |
| 1 | Conn_02x13_Counter_Clockwise | FAKE_PICO_Connect | J1 |
| 1 | Alt_Supply | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | USB4125-GF-A_REVA2 | GCT_USB4125-GF-A_REVA2 | J3 |
| 1 | Alt_VDD_Banana | Banana_Cliff_FCR7350B_S16N-PC_Horizontal | J4 |
| 1 | Alt_AGND_Banana | Banana_Cliff_FCR7350B_S16N-PC_Horizontal | J5 |
| 1 | Alt_VSS_Banana | Banana_Cliff_FCR7350B_S16N-PC_Horizontal | J6 |
| 3 | Conn_ElecOut_ElecRef | PinHeader_2x04_P2.54mm_Vertical | J7, J9, J12 |
| 1 | Conn_02x08_Odd_Even | PinHeader_2x08_P2.54mm_Vertical | J8 |
| 1 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical | J10 |
| 8 | BNC-MALE-H | TE_1-1337445-0 | Elec1, Elec2, Elec3, Elec4, I_Elec_Log1, Stim_EN1, Stim_Status1, V_Elec_Log1 |
| 2 | SW_Rotary_1x4_MP | SWITCH_RM104772BCB | SW2, SW3 |
| 1 | ~ | ANT33FAR2S25RE | SW4 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SW_DIP_x06 | 418127160906 | SW5 |
| 1 | 3.3uH | XAL40XX | L1 |
| 1 | 6.8uH | WE-MAPI_4030_74438357068 | L2 |
| 36 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +28 |
| 6 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C44, C45, C47, C50, C52, C56 |
| 2 | 47nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C51, C57 |
| 2 | 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C53, C54 |
| 2 | 0R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R15 |
| 5 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R13, R27, R34, R36 |
| 8 | 10R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R14, R28, R35, R40, R41, R42, R43 |
| 1 | 2M43R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R9 |
| 1 | 5k6R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R23 |
| 1 | 137kR | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R30 |
| 2 | 5k1 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R37, R38 |
| 1 | 118kR | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R39 |
| 1 | 12kR | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R47 |
| 1 | 2M32R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R48 |
| 4 | MORNTA2502AT5 | MORNTA2502AT5 | RN1, RN2, RN3, RN4 |
Stimulation genv3 design files
The KiCad project lives in the AErbsloeh/stimulation_genv3 repository on GitHub; these links point at the commit this page was built from.
- Layout1_kicad/ShieldPCB.kicad_pcb
- Schematic1_kicad/ShieldPCB.kicad_sch
Stimulation genv3: common questions
How big is the Stimulation genv3 PCB?
The Stimulation genv3 measures 147.2 × 96.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Stimulation genv3?
120 components, from 38 distinct parts. The full bill of materials is listed on this page.
Where can I download the Stimulation genv3 design files?
From the AErbsloeh/stimulation_genv3 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Stimulation genv3 design in my own project?
Yes, under the terms of its MIT license, which AErbsloeh chose for the repository.
