Muon
About the Muon PCB
Muon is an open source PCB design by ai03-2725, published on GitHub under the MIT license. It is a 2-layer board measuring 20 × 13.5 mm, with 7 components from 6 distinct parts.
Other key parts include the C2836386. By type, the board carries 2 connectors, 2 resistors, 1 IC, 1 fuse and 1 diode.
From the project

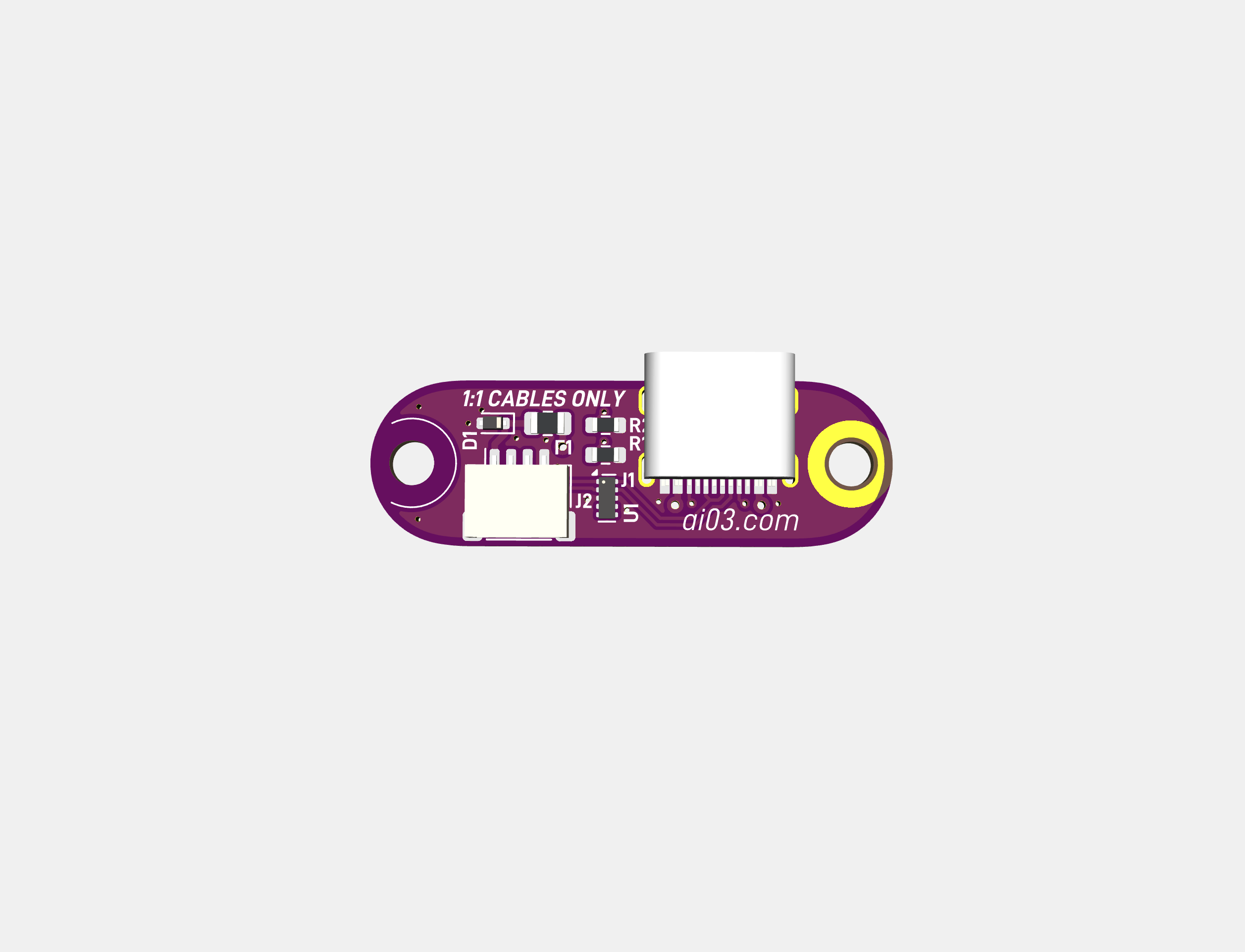

Minimal USB-C to JST-SH daughterboard PCB
Currently in development; not finalized or tested.
- Physically compact - 31.50 x 10.00 mm for Variant A - 20.00 x 13.50 mm for Variant B - Balanced minimizing of dimensions with a focus on ease of implementation on the case-side - Physically robust - 2x M2.5 screws for a balance between robustness, ease of manufacturing, user-friendliness, and physical compactness - 1.6mm PCB to counter cable torque and resist over-tensioned screw-in by users - Minimal, practical implementation - Single-sided for easy assembly - whether at a factory or reflowing at home - Two-layer for affordable…
Main components on the Muon
Muon bill of materials (BOM)
7 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2836386 TPD4E05U06DQA | USON-10_2.5x1.0mm_P0.5mm | U1 |
| 1 | C165948 HRO_TYPE-C-31-M-12 | HRO-TYPE-C-31-M-12-Assembly-Minimal | J1 |
| 1 | C160404 SM04B-SRSS-TB | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal_SmallerPads | J2 |
| 1 | C968441 SMD0805-100-16 | Fuse_0805_2012Metric | F1 |
| 1 | C727161 ESD5Z5V0 | D_SOD-523 | D1 |
| 2 | C25905 5.1k | R_0603_1608Metric | R1, R2 |
Muon design files
The KiCad project lives in the ai03-2725/muon repository on GitHub; these links point at the commit this page was built from.
- LayoutVar-B/muon.kicad_pcb
- SchematicVar-B/muon.kicad_sch
- BOMVar-B/Production/BOM.csv
Muon: common questions
How big is the Muon PCB?
The Muon measures 20 × 13.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Muon?
7 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Muon design files?
From the ai03-2725/muon repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Muon design in my own project?
Yes, under the terms of its MIT license, which ai03-2725 chose for the repository.
