Allankeyboard
About the Allankeyboard PCB
Allankeyboard is an open source PCB design by AIIan-Li, published on GitHub under the MIT license. It is a 2-layer board measuring 310 × 125 mm, with 161 components from 10 distinct parts.
Other key parts include the Nice_Nano_V2. By type, the board carries 80 switches, 80 diodes and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

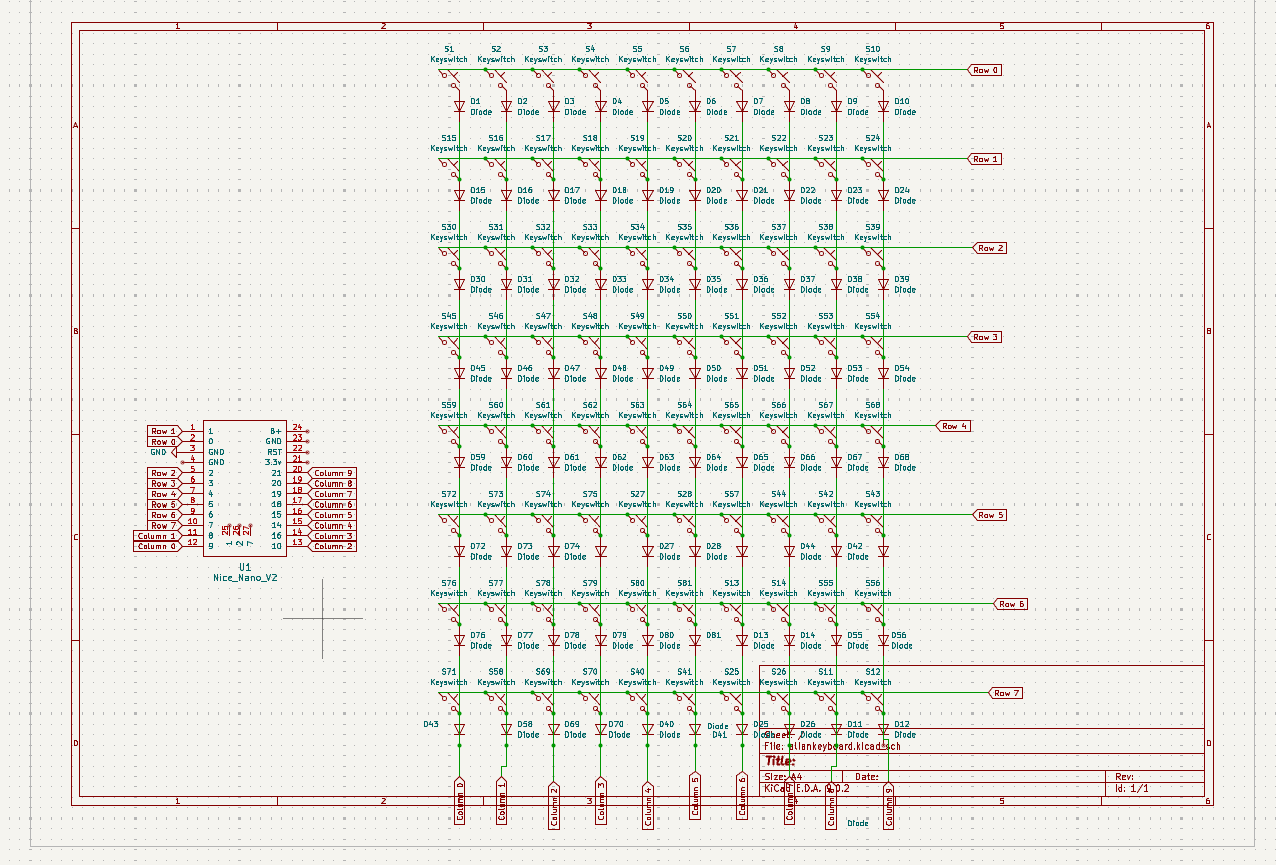

Allan's keyboard
The case was made in Fusion 360 and is gasket mounted. 8 screws to ensure the keyboard is secure when printing in two parts.
The firmware was made with KMK however I intend to recreate firmware in ZMK for full bluetooth capabilities( I am currently learning as I don't want to just copilot/vibecode everything)
Main components on the Allankeyboard
Allankeyboard bill of materials (BOM)
161 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Nice_Nano_V2 | Nice_Nano_V2 | U1 |
| 69 | Keyswitch | SW_Cherry_MX_1.00u_PCB | S1, S2, S3, S4, S5, S6, S7, S8 +61 |
| 1 | Keyswitch | SW_Cherry_MX_2.00u_PCB | S28 |
| 1 | Keyswitch | SW_Cherry_MX_1.50u_Plate | S30 |
| 1 | Keyswitch | SW_Cherry_MX_1.50u_PCB | S43 |
| 2 | Keyswitch | SW_Cherry_MX_1.75u_PCB | S45, S70 |
| 2 | Keyswitch | SW_Cherry_MX_2.25u_PCB | S57, S59 |
| 3 | Keyswitch | SW_Cherry_MX_1.25u_PCB | S72, S73, S74 |
| 1 | Keyswitch | SW_Cherry_MX_6.25u_PCB | S75 |
| 80 | Diode | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +72 |
Allankeyboard design files
The KiCad project lives in the AIIan-Li/allankeyboard repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/allankeyboard.kicad_pcb
- Schematicpcb/allankeyboard.kicad_sch
- BOMBOM.csv
Allankeyboard: common questions
How big is the Allankeyboard PCB?
The Allankeyboard measures 310 × 125 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Allankeyboard?
161 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Allankeyboard design files?
From the AIIan-Li/allankeyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Allankeyboard design in my own project?
Yes, under the terms of its MIT license, which AIIan-Li chose for the repository.
