Scsbaf40
About the Scsbaf40 PCB
Scsbaf40 is an open source PCB design by AIn0n, published on GitHub under the BSD-2-Clause license. It is a 2-layer board measuring 213.9 × 119.4 mm, with 84 components from 4 distinct parts.
By type, the board carries 40 relays, 40 diodes and 4 connectors.
It belongs with the keyboards designs in this gallery.
From the project

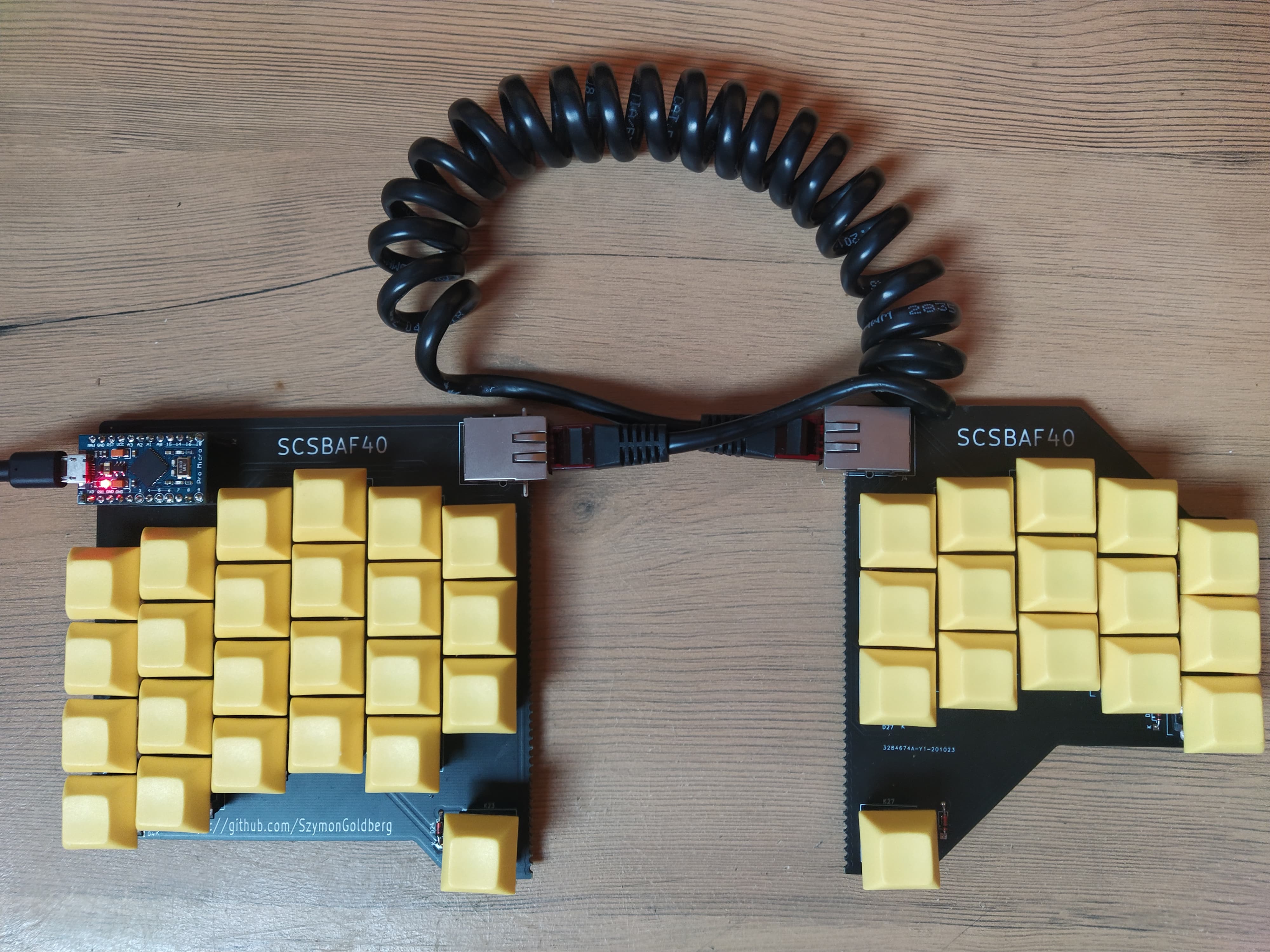

Staggered Columns Split Budget AF 40% ergonomic keyboard
Staggered Columns Split Budget AF 40% ergonomic keyboard
The SCSBAF40 keyboard is 40% Staggered Columns Split Budget AF ergonomic keyboard. Heavly inspired by REVIUNG34 and Squiggle.
Project goals: - single arduino, simple design - split - staggered columns with dimensions fitting my fingers length - easy to build with easily obtainable and cheap parts - all software written in arduino IDE - minimum 40 keys (that's main difference between this project and squiggle or reviung)
Scsbaf40 bill of materials (BOM)
84 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x12_Female | PinSocket_1x12_P2.54mm_Vertical | J1, J2 |
| 2 | 8P8C_LED_Shielded | RJ45_Wuerth_7499010001A_Horizontal | J3, J4 |
| 40 | KEYSW | SW_Cherry_MX_1.00u_PCB | K1, K2, K3, K4, K5, K6, K7, K8 +32 |
| 40 | D | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +32 |
Scsbaf40 design files
The KiCad project lives in the AIn0n/scsbaf40 repository on GitHub; these links point at the commit this page was built from.
Scsbaf40: common questions
How big is the Scsbaf40 PCB?
The Scsbaf40 measures 213.9 × 119.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Scsbaf40?
84 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Scsbaf40 design files?
From the AIn0n/scsbaf40 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Scsbaf40 design in my own project?
Yes, under the terms of its BSD-2-Clause license, which AIn0n chose for the repository.
