About the RF-Switch-CG2179M2-HMC544A PCB
RF-Switch-CG2179M2-HMC544A is an open source PCB design by akaFunk, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 32 × 17.6 mm, with 11 components from 7 distinct parts.
Other key parts include the CG2179M2-C4. By type, the board carries 5 connectors, 5 capacitors and 1 IC.
From the project
PCB for the RF switch CG2179M2 or HMC544A

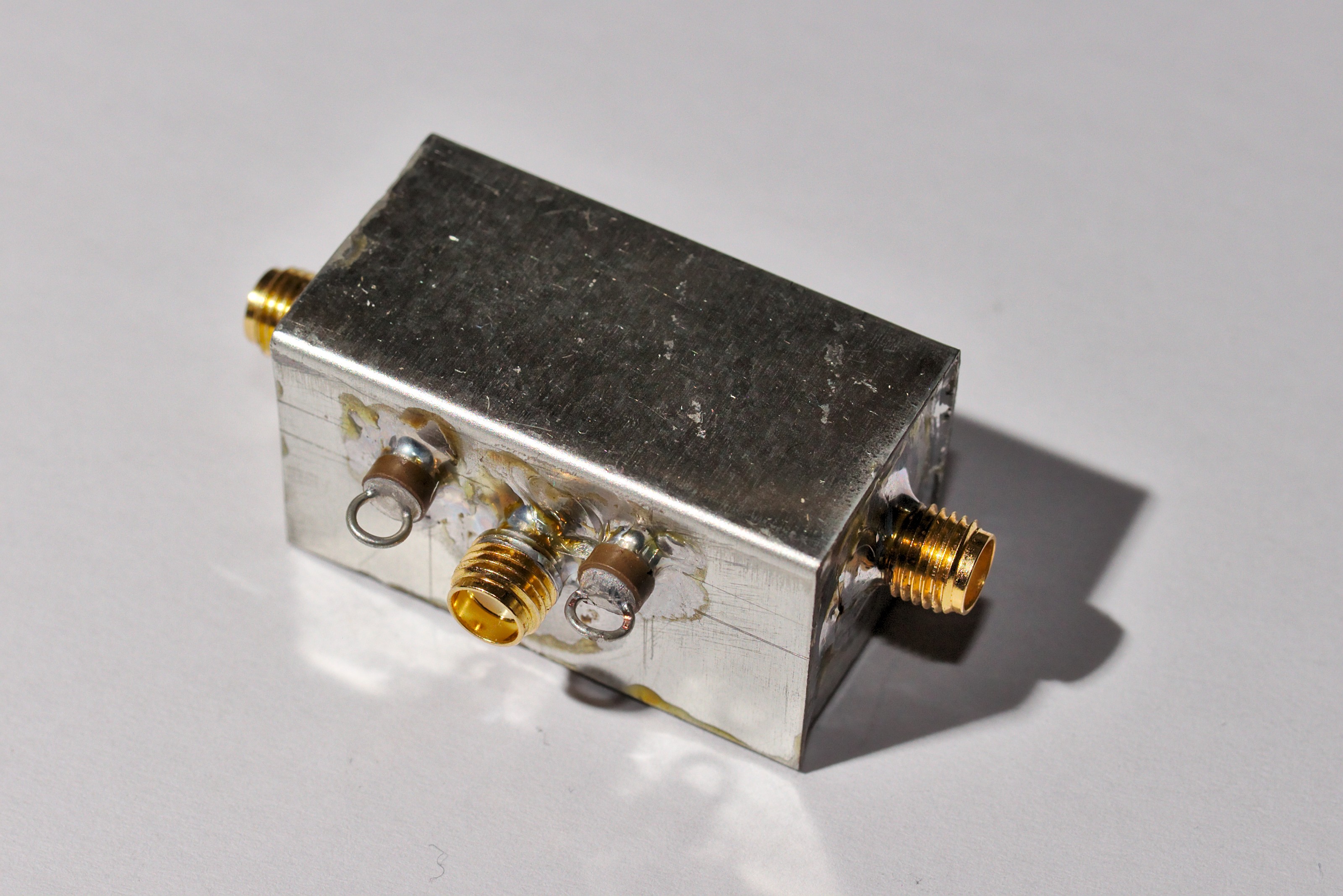

The PCB has a height of 0.6 mm, which is crucial (at least at higher frequencies) and it was ordered in China [3]. The populated PCB was soldered into a tinplate filter housing FG1 of size 37x20x20 mm [4]. To get the control voltages into the housing two 1000 pF feed through capacitor DF 38 [5] were used.
If you wish to use the switch for fast switching you should not populate the two capacitors C4 and C5. Additionally C1, C2 and C3 may be increased for frequencies lower than 100 MHz and decreased for frequencies above 500 MHz. Use proper high frequency capacitors. If DC signal is required…
Main components on the RF-Switch-CG2179M2-HMC544A
RF-Switch-CG2179M2-HMC544A bill of materials (BOM)
11 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CG2179M2-C4 CG2179M2 | SwitchMulti | U1 |
| 1 | 2579819 RF1 | CON-SMA-EDGE | P1 |
| 1 | 2579819 IN | CON-SMA-EDGE | P2 |
| 1 | 2579819 RF2 | CON-SMA-EDGE | P3 |
| 1 | VC1 | Pin_Header_Straight_1x02 | P4 |
| 1 | VC2 | Pin_Header_Straight_1x02 | P5 |
| 5 | 1n | C_0603_HandSoldering | C1, C2, C3, C4, C5 |
RF-Switch-CG2179M2-HMC544A design files
The KiCad project lives in the akaFunk/RF-Switch-CG2179M2-HMC544A repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/Switch.kicad_pcb
- BOMBOM.csv
RF-Switch-CG2179M2-HMC544A: common questions
How big is the RF-Switch-CG2179M2-HMC544A PCB?
The RF-Switch-CG2179M2-HMC544A measures 32 × 17.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RF-Switch-CG2179M2-HMC544A?
11 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RF-Switch-CG2179M2-HMC544A design files?
From the akaFunk/RF-Switch-CG2179M2-HMC544A repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the RF-Switch-CG2179M2-HMC544A design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which akaFunk chose for the repository.
