21 LetsSwamp Assemble L

alg0002·LetsSwamp·design/21_LetsSwamp_Assemble_L/21_LetsSwamp_Assemble_L.kicad_pcb

21 LetsSwamp Assemble L PCB layout, top view — open source board by alg0002
Simulate this board

About the 21 LetsSwamp Assemble L PCB

21 LetsSwamp Assemble L is an open source PCB design by alg0002, published on GitHub under the MIT license. It is a 2-layer board measuring 122.3 × 85 mm, with 52 components from 5 distinct parts.

Other key parts include the Waveshare_RP2040-Zero. By type, the board carries 25 diodes, 24 switches, 2 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

DIY keyboard "Let's Swamp"

Let's Swamp is an ortholinear split keyboard.

4x6x2=48keys Controller board : Waveshare RP2040-Zero * Supported firmware : - Kermite - PRK Firmware - QMK Firmware

KiCad design files (in design directory) : MIT Firmware files (in firmware directory) : MIT Gerber files (in gerber directory) : MIT Other files: MIT

I have modified Salicylic-acid3/KiCAD_FootPrint to use in this project.

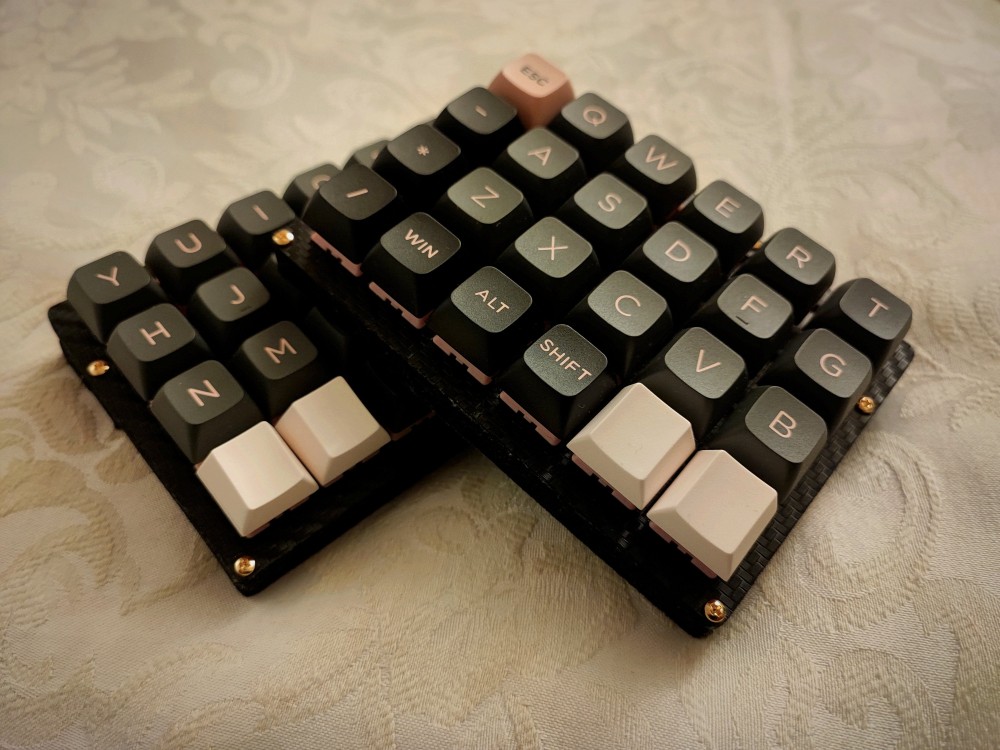

21 LetsSwamp Assemble L, from the project README
From the project README

Main components on the 21 LetsSwamp Assemble L

Waveshare_RP2040-Zero

21 LetsSwamp Assemble L bill of materials (BOM)

52 components, 5 distinct parts.

QtyPartRefs
1
Waveshare_RP2040-Zero
U1
1
MJ-4PP-9
J1
1
Conn_01x03
J2
24
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +16
25
D
D1, D2, D3, D4, D5, D6, D7, D8 +17

21 LetsSwamp Assemble L design files

The KiCad project lives in the alg0002/LetsSwamp repository on GitHub; these links point at the commit this page was built from.

21 LetsSwamp Assemble L: common questions

How big is the 21 LetsSwamp Assemble L PCB?

The 21 LetsSwamp Assemble L measures 122.3 × 85 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 21 LetsSwamp Assemble L?

52 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the 21 LetsSwamp Assemble L design files?

From the alg0002/LetsSwamp repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 21 LetsSwamp Assemble L design in my own project?

Yes, under the terms of its MIT license, which alg0002 chose for the repository.
