Synharmonium PCB layout, top view — open source board by amminadabz
Simulate this board

About the Synharmonium PCB

Synharmonium is an open source PCB design by amminadabz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 291.3 × 154.8 mm, with 187 components from 11 distinct parts.

By type, the board carries 95 diodes and 1 connector.

It belongs with the keyboards, test & measurement and audio designs in this gallery.

From the project

A new kind of musical instrument.

But, if you want to use the Synharmonium's tuning technology with an external synthesizer, it also has full MIDI compatibility (with both DIN and USB).

If you have skills that could help this process along, feel free to join the project. Do send me an email first though, I'd like to know who I'm working with!

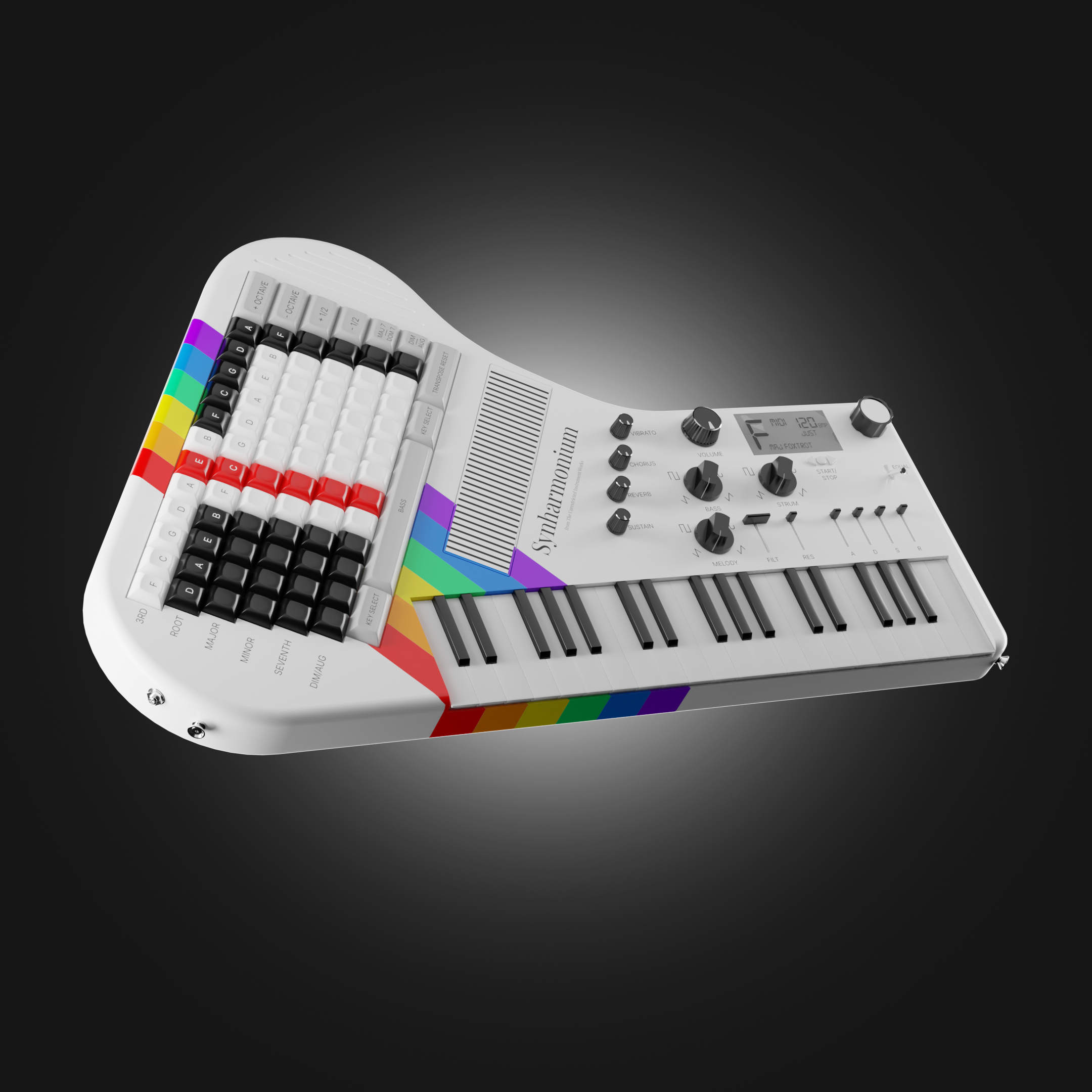

Synharmonium, from the project README
From the project README

Synharmonium bill of materials (BOM)

187 components, 11 distinct parts — part numbers from the project's BOM.
