Mixed-Signal Hackathon
About the Mixed-Signal Hackathon PCB
Mixed-Signal Hackathon is an open source PCB design by Amreen-Kaur, published on GitHub. It is a board, with 15 components from 9 distinct parts.
Other key parts include the plot_v1, amreen_dff, adc_bridge_1 and dac_bridge_1.
From the project
- Final Report - Introduction - The Implementation - Steps to simulate the mixed signal model in eSim - Final schematic in eSim - Results - Softwares/tools used in this simulation - Acknowledgements
- Final Report - Introduction - The Implementation - Steps to simulate the mixed signal model in eSim - Final schematic in eSim - Results - Softwares/tools used in this simulation - Acknowledgements

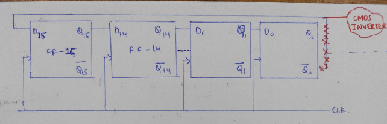

1. The 4-bit Counter made of D-ff. 2. An Inverter to give to the output of the last d-ff into the input.
The Johnson counter has same number of flip flop but it can count twice the number of states the ring counter can count. It can be implemented using D and JK flip flop. Johnson ring counter is used to count the data in a continuous loop. Johnson counter is a self-decoding circuit.
Main components on the Mixed-Signal Hackathon
Mixed-Signal Hackathon bill of materials (BOM)
15 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | plot_v1 | U1, U2 | |
| 4 | amreen_dff | U3, U4, U6, U8 | |
| 2 | adc_bridge_1 | U5, U7 | |
| 1 | dac_bridge_1 | U9 | |
| 1 | sky130_fd_pr__pfet_01v8 | SC1 | |
| 1 | sky130_fd_pr__nfet_01v8 | SC2 | |
| 1 | SKY130mode | scmode1 | |
| 2 | pulse | R1 | v1, v3 |
| 1 | DC | R1 | v2 |
