555-plane

ANG13T·555-plane-pcb·Plane555/Plane555.kicad_pcb

555-plane PCB layout, top view — open source board by ANG13T

About the 555-plane PCB

555-plane is an open source PCB design by ANG13T, published on GitHub. It is a 2-layer board measuring 115.1 × 97.3 mm, with 9 components from 8 distinct parts.

By type, the board carries 3 diodes, 2 resistors, 1 switch and 1 capacitor.

It belongs with the wearables designs in this gallery.

From the project

555 IC Circuit of Airplane PCB with Astable Dual LED Flashing ✈️✨

The duty cycle of a circuit is ratio of the time the signal is active (high) to the total period of the signal. We want the duty cycle of this circuit to be close to 50% in order to get a congruent off/on blinking pattern form the airplane LEDs.

R1:R2 ratio predominately is what sets the duty cycle for the circuit

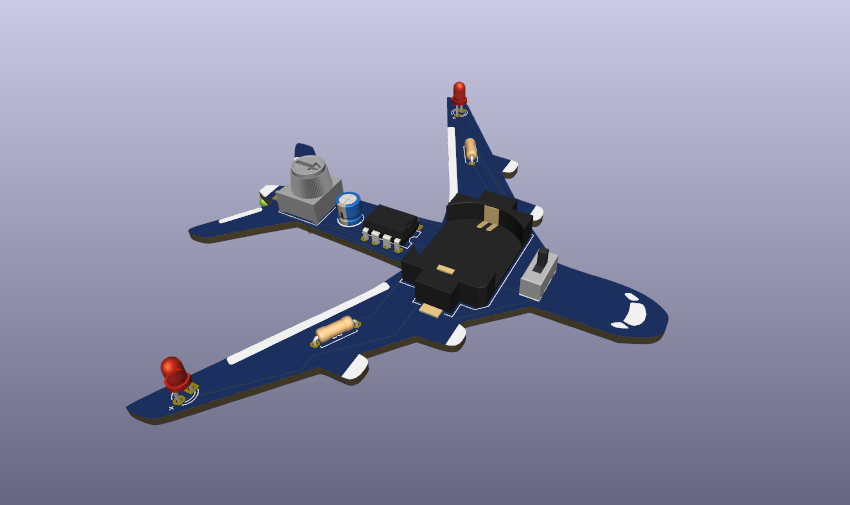

555-plane, from the project README
From the project README

555-plane bill of materials (BOM)

9 components, 8 distinct parts.

QtyPartRefs
1
POT
100k POT
1
LM555xM
555
1
SW_SPDT
SW1
1
LED
D1
2
LED
D2, D3
1
10uf
C1
1
1.2k ohm
R1
1
90 ohm
R2

555-plane design files

The KiCad project lives in the ANG13T/555-plane-pcb repository on GitHub; these links point at the commit this page was built from.

555-plane: common questions

How big is the 555-plane PCB?

The 555-plane measures 115.1 × 97.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 555-plane?

9 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the 555-plane design files?

From the ANG13T/555-plane-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 555-plane design in my own project?

The repository has no license, so all rights stay with ANG13T. Use it as a reference, and ask the author before reusing the design.
