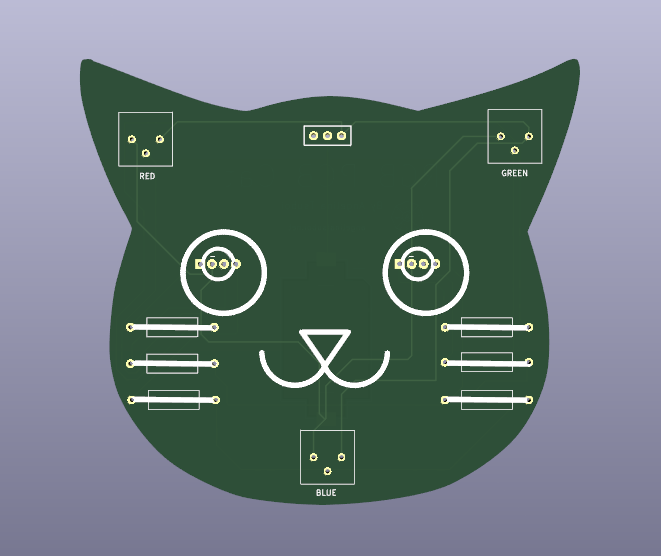

Rgb cat PCB layout, top view — open source board by ANG13T

About the Rgb cat PCB

Rgb cat is an open source PCB design by ANG13T, published on GitHub under the MIT license. It is a 2-layer board measuring 91.9 × 81.1 mm, with 13 components from 7 distinct parts.

By type, the board carries 6 resistors, 2 diodes, 1 battery holder and 1 switch.

It belongs with the wearables designs in this gallery.

From the project

A cat-shaped RGB PCB badge to teach the basics of soldering 😺

Rgb cat, from the project README
From the project README

Rgb cat bill of materials (BOM)

13 components, 7 distinct parts.

QtyPartRefs
1
BAT
BT1
1
RED
RV1
1
GREEN
RV2
1
BLUE
RV3
1
SW_SPDT
SW1
2
LED_RKGB
D1, D2
6
R
R1, R2, R3, R4, R5, R6

Rgb cat design files

The KiCad project lives in the ANG13T/rgb-cat repository on GitHub; these links point at the commit this page was built from.

Rgb cat: common questions

How big is the Rgb cat PCB?

The Rgb cat measures 91.9 × 81.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rgb cat?

13 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rgb cat design files?

From the ANG13T/rgb-cat repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rgb cat design in my own project?

Yes, under the terms of its MIT license, which ANG13T chose for the repository.
