Polarfire som
About the Polarfire som PCB
Polarfire som is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 71 components from 28 distinct parts.
Other key parts include the TPS2117DRLR, PAC1934T-I/J6CX, MP5424GRM-0000-Z and MP8869SGL-P. By type, the board carries 30 capacitors, 28 resistors, 5 ICs, 5 inductors, 2 diodes and 1 transistor.
It belongs with the iot & wireless designs in this gallery.
From the project

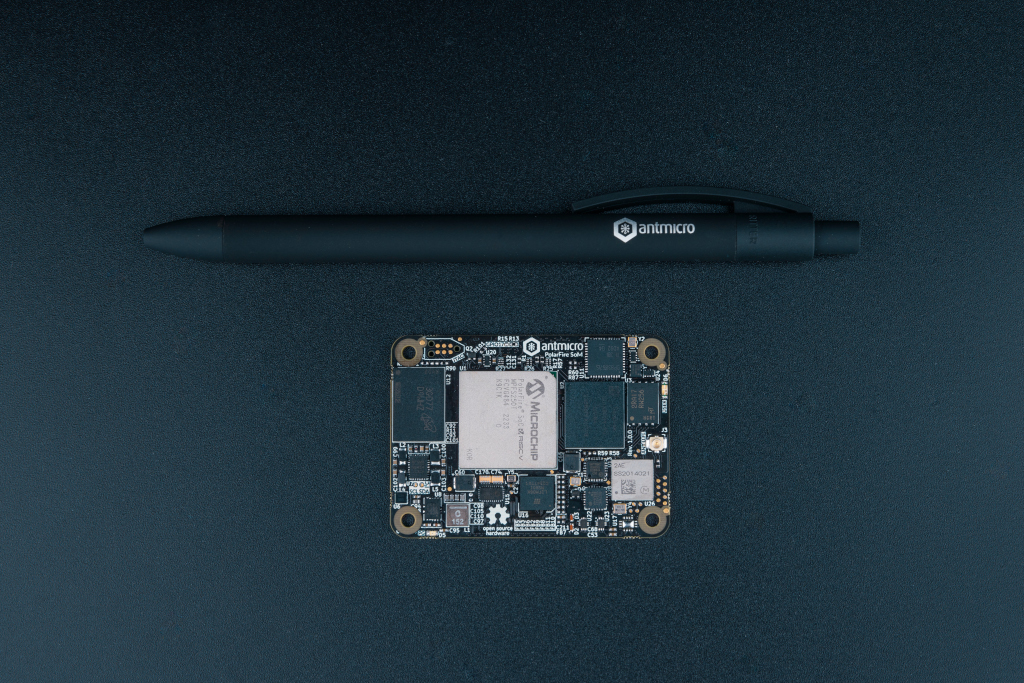

System on Module based on Microchip PolarFire MPFS250T SoC
This project contains open hardware design files for the Antmicro PolarFire System on Module (SoM) built around Microchip PolarFire MPFS250T RISC-V System on Chip. The SoM exposes two 100-pin high density connectors with signal assignment that is electrically compatible with Raspberry Pi Compute Module 4.
The PCB design files were prepared in KiCad 7.
PolarFire SoC MPFS250T 2 GB LPDDR4-1866 SDRAM 8 GB eMMC flash memory Compact size: 55x40mm Gigabit Ethernet PHY (Ti/DP83867ISRGZR) 4-lane PCIe (via MPFS250T built-in XCVR transceivers) 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac WiFi module…
Main components on the Polarfire som
Polarfire som bill of materials (BOM)
71 components, 28 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TPS2117DRLR Texas Instruments | SOT-583 | U4, U5 |
| 1 | PAC1934T-I/J6CX PAC1934T_WLCSP Microchip Technology | WLCSP-16_2.25x2.17x0.68mm_Layout4x4_P0.5x0.5mm | U6 |
| 1 | MP5424GRM-0000-Z MP5424GRM Monolithic Power Systems | QFN-26_3.5x4.5x1mm_P0.45mm | U7 |
| 1 | MP8869SGL-P MP8869S Monolithic Power Systems | MPS_QFN-14_MP8869S | U8 |
| 1 | DMG1012T-7 Diodes Incorporated | SOT-523 | Q6 |
| 1 | AXGD10402KR Littelfuse | D_0402_1005Metric | D1 |
| 1 | LTST-C190GKT LED_G_0603_LTST-C190GKT Lite-On | LED_0603_1608Metric_G | D5 |
| 1 | XEL4020-152MEC L_1u5_7.5A_Coilcraft-XEL4020 Coilcraft | L_Coilcraft-XEL4020 | L1 |
| 2 | AOTA-B201208S1R0MT L_1u_3.2A_0805 Abracon | L_0805_2012Metric | L2, L4 |
| 2 | AOTA-B201610S1R5MT L_1u5_2.8A_0806 Abracon | L_0806_2016Metric | L3, L5 |
| 5 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C83, C84, C92, C94, C95 |
| 18 | GRM158R60J226ME01D C_22u_0402 Murata | C_0402_1005Metric | C85, C86, C87, C88, C90, C91, C97, C98 +10 |
| 1 | C1005X5R1E474M050BB C_470n_0402 TDK | C_0402_1005Metric | C89 |
| 4 | GRM155R61A106ME11D C_10u_10V_0402 Murata | C_0402_1005Metric | C93, C101, C104, C112 |
| 1 | GCM155R71H223MA55D C_22n_0402 Murata | C_0402_1005Metric | C96 |
| 1 | CC0402JRNPO9BN220 C_22p_0402 YAGEO | C_0402_1005Metric | C111 |
| 1 | CR0402-FX-3092GLF R_30k9_0402 Bourns | R_0402_1005Metric | R2 |
| 1 | CR0402-FX-2002GLF R_20k_0402 Bourns | R_0402_1005Metric | R3 |
| 10 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R4, R7, R8, R9, R78, R84, R93, R94 +2 |
| 1 | CR0402-FX-4992GLF R_49k9_0402 Bourns | R_0402_1005Metric | R5 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R6, R10, R16, R83 |
| 1 | CR0402-FX-4R70GLF R_4R7_0402 Bourns | R_0402_1005Metric | R11 |
| 1 | CR0402-FX-2053GLF R_205k_0402 Bourns | R_0402_1005Metric | R19 |
| 2 | PMR03EZPJ000 R_0R_22.4A_0603 ROHM Semiconductor | R_0603_1608Metric | R20, R53 |
| 4 | CFN0603AFZ-R010ELF R_0R01_0603 Bourns | R_0603_1608Metric | R21, R47, R48, R49 |
| 1 | CR0402-FX-9312GLF R_93k1_0402 Bourns | R_0402_1005Metric | R64 |
| 1 | CR0402-FX-5900GLF R_590R_0402 Bourns | R_0402_1005Metric | R68 |
| 1 | CR0402-FX-1003GLF R_100k_0402 Bourns | R_0402_1005Metric | R69 |
Polarfire som design files
The KiCad project lives in the antmicro/polarfire-som repository on GitHub; these links point at the commit this page was built from.
- Schematicsupply.kicad_sch
Polarfire som: common questions
How many components are on the Polarfire som?
71 components, from 28 distinct parts. The full bill of materials is listed on this page.
Where can I download the Polarfire som design files?
From the antmicro/polarfire-som repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Polarfire som design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
