Touch relay jack

asukiaaa·touch_relay_jack·pcb/touch_relay_jack.kicad_pcb

Touch relay jack PCB layout, top view — open source board by asukiaaa

About the Touch relay jack PCB

Touch relay jack is an open source PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 38.9 × 33.3 mm, with 9 components from 8 distinct parts.

Other key parts include the Pro_Micro. By type, the board carries 3 resistors, 2 diodes, 1 module, 1 transistor, 1 connector and 1 relay.

From the project

Control a audio jack with using relay referencing touch sensor value.

Control a audio jack with using relay referencing touch sensor value.

Pro Micro Pin | Role --------- | ---- D4 | Relay D8 | Touch signal in D9 | Touch signal out

- Relay - Mosfet - Diode - Resistor 1k - Resistor for touch sensor: 220k or 1M - 3.5mm audio jack - LED Green - Pin Socket - Pro Micro

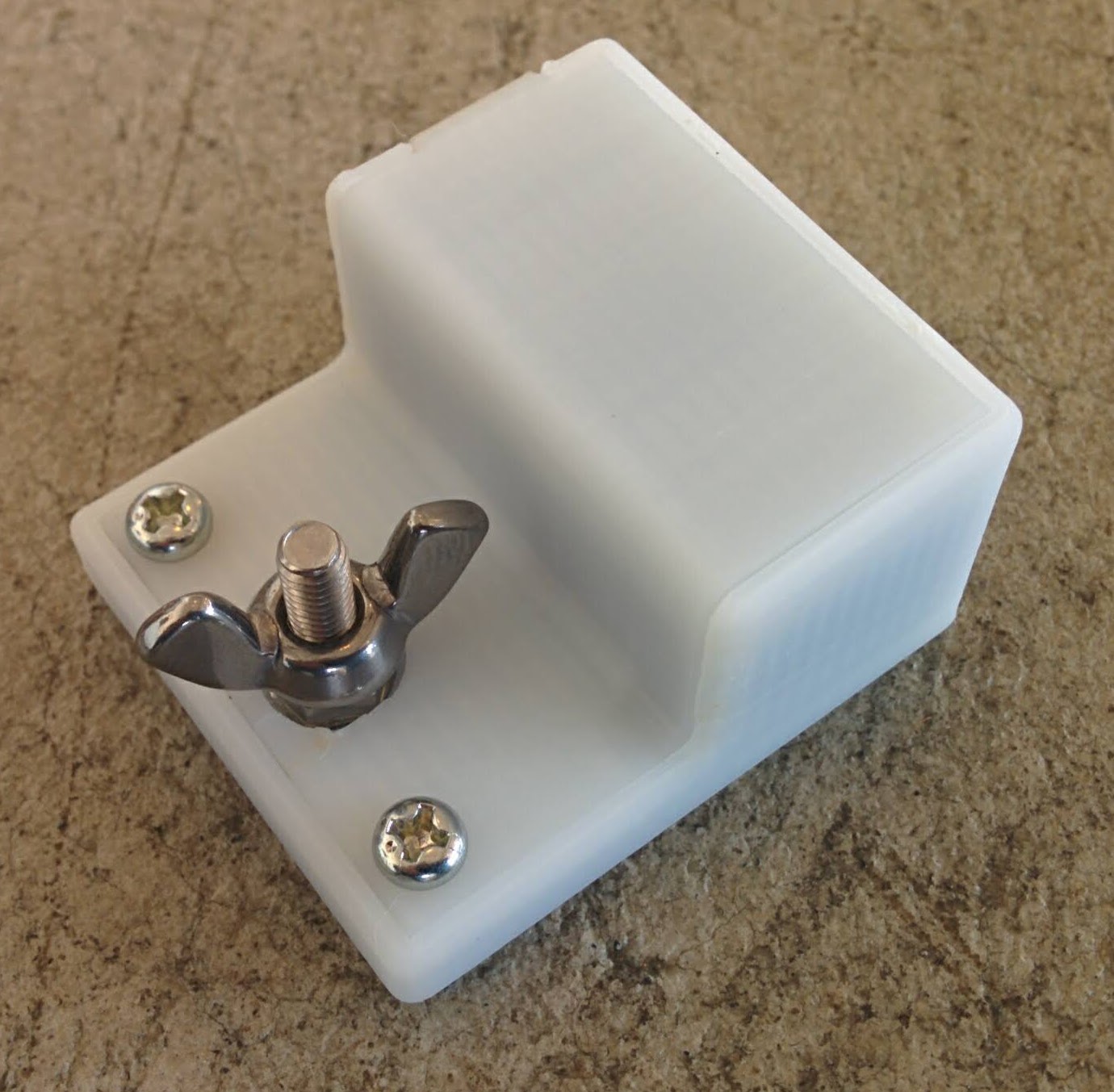

Touch relay jack, from the project README
From the project README

Main components on the Touch relay jack

Touch relay jack bill of materials (BOM)

9 components, 8 distinct parts.

QtyPartRefs
1
Pro_Micro
A1
1
Q_NMOS_GSD
Q1
1
AudioJack3_Ground
J1
1
Y14x-1C-xxDS
K1
1
D_Shockley
D1
1
LED
D2
2
1K
R1, R2
1
1M
R3
