Atreyu-D10·hackpad·design/pcb/Hackpad.kicad_pcb

Hackpad PCB layout, top view — open source board by Atreyu-D10

About the Hackpad PCB

Hackpad is an open source PCB design by Atreyu-D10, published on GitHub under the MIT license. It is a 2-layer board measuring 98.3 × 92.3 mm, with 34 components from 5 distinct parts.

Other key parts include the NICE_NANO_V2. By type, the board carries 16 diodes, 14 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A custom macropad for Hackclub

- hackpad - Project Structure - Journal - PCB - Schematic - PCB Design - PCB Render - CAD - BOM - Software

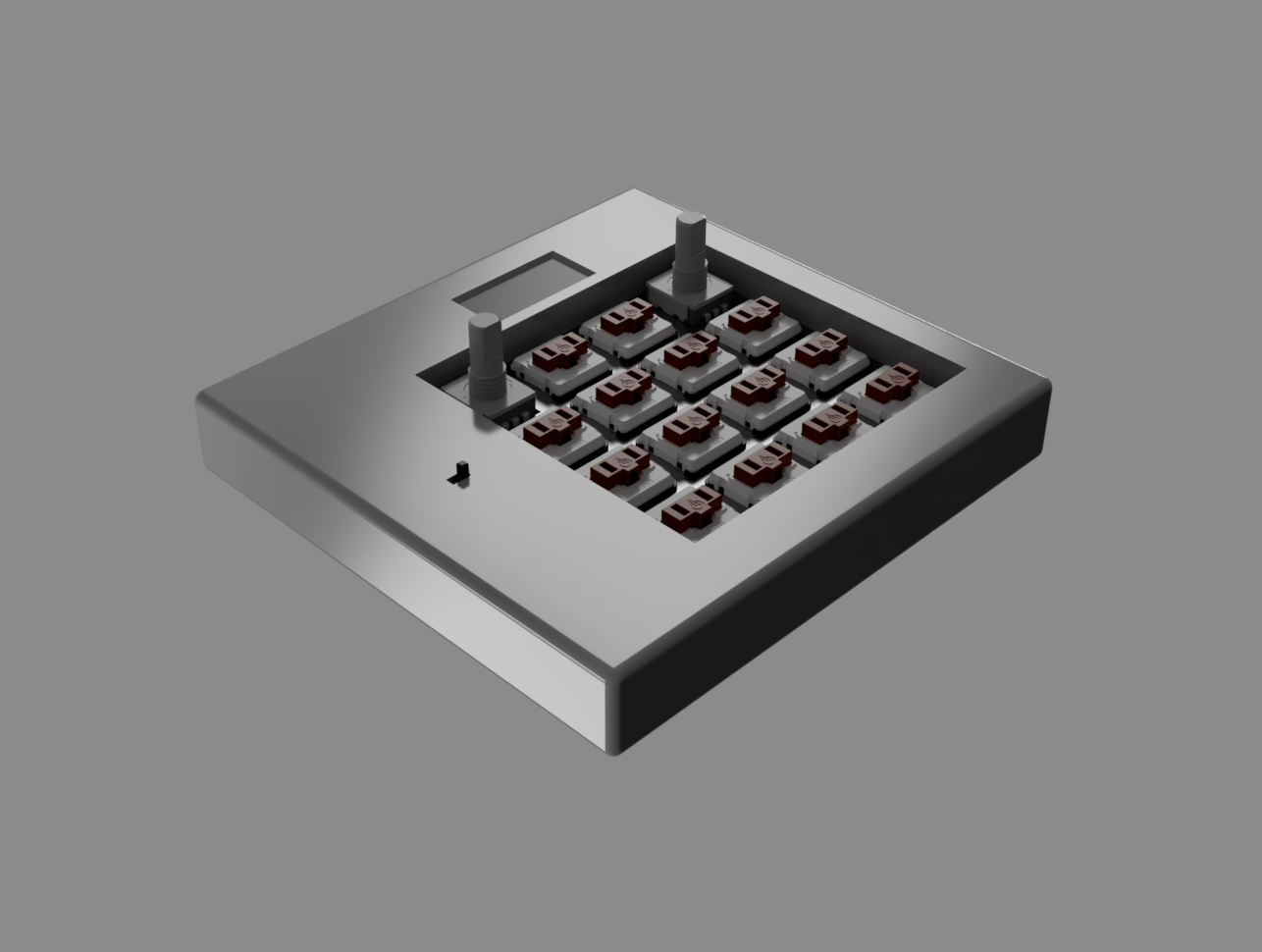

A fully wireless macropad with 14 Choc v1 Ambient Nocturnal switches, 2 rotary encoders (with a push-button each), and a small screen! The case is in two sections - a top and bottom, and joins together via 8 magnets, half in each side of the case (you can see the magnet holes in the various views).

Hackpad, from the project README
From the project README

Main components on the Hackpad

NICE_NANO_V2

Hackpad bill of materials (BOM)

34 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NICE_NANO_V2
Nice_Nano_V2
U1
1
nice!view
Display1
2
PEC11R-4215F-S0024
MT1, MT2
14
Switch
SW2, SW3, SW5, SW6, SW7, SW8, SW9, SW10 +6
16
Diode
D1, D2, D3, D4, D5, D6, D7, D8 +8

Hackpad design files

The KiCad project lives in the Atreyu-D10/hackpad repository on GitHub; these links point at the commit this page was built from.

Hackpad: common questions

How big is the Hackpad PCB?

The Hackpad measures 98.3 × 92.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad?

34 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackpad design files?

From the Atreyu-D10/hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hackpad design in my own project?

Yes, under the terms of its MIT license, which Atreyu-D10 chose for the repository.
