MP2-ESC

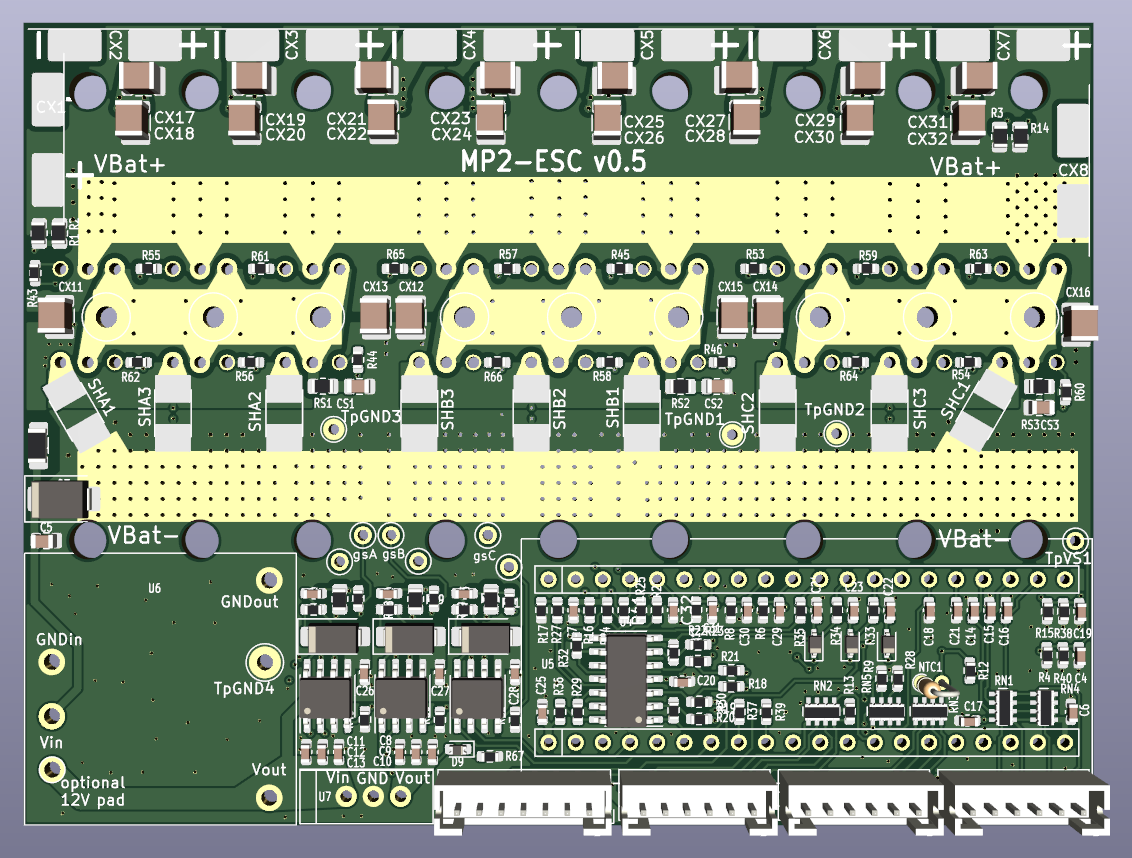

About the MP2-ESC PCB
MP2-ESC is an open source STM32 PCB design by badgineer, published on GitHub under the BSD-3-Clause license. It is a 4-layer board measuring 100 × 75 mm, with 202 components from 49 distinct parts.
Its main chip is the STM32F401CCU6_Balckpill, from the STM32 family. Other key parts include the L6498DTR, NCS20034DR2G, PQDE6W-Q110 / RD5-110S12W and TO220_replacement_module. By type, the board carries 72 resistors, 31 capacitors, 7 ICs, 7 diodes, 4 connectors and 3 jumpers.
It belongs with the power & battery designs in this gallery.
From the project
Multi-Platform, Modular, Powerful ESC
Remove all sources of power when operating on the board. This includes soldering, mounting the board, connecting wires, or plugging in the pill Use an USB isolator when connecting to your computer DO NOT USE LIPO BATTERIES INDOORS The board stores considerable capacitance -- a spark when you connect to your power supply Ideally you should use a current limited power supply when testing Before powering up follow all recommendations in our building tips section.
Main components on the MP2-ESC
MP2-ESC bill of materials (BOM)
202 components, 49 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | L6498DTR | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2, U3 |
| 1 | NCS20034DR2G | SOIC-14_3.9x8.7mm_P1.27mm | U4 |
| 1 | STM32F401CCU6_Balckpill | Blackpill_STM32F401CEU6 | U5 |
| 1 | PQDE6W-Q110 / RD5-110S12W | PQDE6W | U6 |
| 1 | TO220_replacement_module | TO220_replacement_module | U7 |
| 1 | Conn_01x07 | JST_PH_B7B-PH-K_1x07_P2.00mm_Vertical | J1 |
| 3 | Conn_01x06 | JST_PH_B6B-PH-K_1x06_P2.00mm_Vertical | J2, J3, J4 |
| 8 | 470uF | CAP_Polaryzed | CX1, CX2, CX3, CX4, CX5, CX6, CX7, CX8 |
| 22 | 470NF 470nF | C_1210_3225Metric | CX11, CX12, CX13, CX14, CX15, CX16, CX17, CX18 +14 |
| 3 | SolderJumper_3_Open | SolderJumper-3_P1.3mm_Open_RoundedPad1.0x1.5mm_NumberLabels | JP1, JP2, JP3 |
| 9 | PhasePad | PhasePad | PH1, PH2, PH3, PH4, PH5, PH6, PH7, PH8 +1 |
| 18 | CRST030N10N | TO220_horizontal_smallgate | QA1, QA2, QA3, QA4, QA5, QA6, QB1, QB2 +10 |
| 9 | 0.5MR 0.5mR | Shunt_2512_6332Metric | SHA1, SHA2, SHA3, SHB1, SHB2, SHB3, SHC1, SHC2 +1 |
| 1 | 12V Pad | TestPoint_THTPad_D2.0mm_Drill1.0mm | Tp12V1 |
| 10 | TestPoint | TestPoint_THTPad_D2.0mm_Drill1.0mm | TpGND1, TpGND2, TpGND3, TpGS1, TpGS2, TpGS3, TpGS4, TpGS5 +2 |
| 1 | TestPoint | TestPoint_THTPad_D3.0mm_Drill1.5mm | TpGND4 |
| 3 | US1M | D_SMA | D1, D2, D3 |
| 3 | C191023 D_Small | D_SOD-323 | D4, D5, D6 |
| 1 | LED | D_0603_1608Metric | D9 |
| 9 | 10UF 10uF | C_0603_1608Metric | C1, C2, C3, C8, C9, C10, C11, C12 +1 |
Show 29 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100NF 100nF | C_0805_2012Metric | C5 |
| 7 | 100N 100n | C_0603_1608Metric | C6, C7, C20, C21, C26, C27, C28 |
| 6 | 1NF 1nF | C_0603_1608Metric | C14, C15, C16, C22, C23, C24 |
| 1 | 100N 100nF | C_0603_1608Metric | C17 |
| 2 | 1UF 1uF | C_0603_1608Metric | C18, C32 |
| 1 | 3.3NF 3.3nF | C_0603_1608Metric | C19 |
| 1 | 10NF 10nF | C_0603_1608Metric | C25 |
| 3 | 47PF 47pF | C_0603_1608Metric | C29, C30, C31 |
| 2 | 4R7 | R_0805_2012Metric | R1, R2 |
| 3 | 150K 150k | R_0805_2012Metric | R5, R7, R10 |
| 3 | 3K3 3k3 | R_0603_1608Metric | R6, R8, R11 |
| 2 | 1K8 1k8 | R_0603_1608Metric | R9, R28 |
| 8 | 10K 10k | R_0603_1608Metric | R12, R27, R47, R48, R49, R50, R51, R52 |
| 7 | 2K2 2k2 | R_0603_1608Metric | R13, R19, R20, R22, R23, R25, R26 |
| 1 | 360K 360k | R_0805_2012Metric | R14 |
| 1 | 8K2 8k2 | R_0603_1608Metric | R15 |
| 1 | 1k | R_0603_1608Metric | R16 |
| 1 | 22K 22k | R_0603_1608Metric | R17 |
| 4 | 100K 100k | R_0603_1608Metric | R18, R21, R24, R70 |
| 2 | 220K 220k | R_0603_1608Metric | R29, R38 |
| 3 | 47K 47k | R_0603_1608Metric | R30, R31, R32 |
| 3 | R150 | R_0603_1608Metric | R33, R34, R35 |
| 1 | 47R | R_0603_1608Metric | R36 |
| 3 | R100 | R_0603_1608Metric | R37, R39, R41 |
| 3 | 2R2 | R_0603_1608Metric | R42, R68, R69 |
| 18 | 4R7 | R_0603_1608Metric | R43, R44, R45, R46, R53, R54, R55, R56 +10 |
| 1 | 30K 30k | R_0603_1608Metric | R67 |
| 2 | 10K 10k | R_Array_Concave_4x0603 | RN1, RN4 |
| 3 | 470R | R_Array_Concave_4x0603 | RN2, RN3, RN5 |
MP2-ESC design files
The KiCad project lives in the badgineer/MP2-ESC repository on GitHub; these links point at the commit this page was built from.
MP2-ESC: common questions
What microcontroller does the MP2-ESC use?
The MP2-ESC is built around the STM32F401CCU6_Balckpill, from the STM32 family.
How big is the MP2-ESC PCB?
The MP2-ESC measures 100 × 75 mm, has 4 copper layers and is 1.69 mm thick.
How many components are on the MP2-ESC?
202 components, from 49 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MP2-ESC design files?
From the badgineer/MP2-ESC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MP2-ESC design in my own project?
Yes, under the terms of its BSD-3-Clause license, which badgineer chose for the repository.
Can I test firmware for the MP2-ESC without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
