HC2000
About the HC2000 PCB
HC2000 is an open source PCB design by badrianiulian, published on GitHub. It is a 2-layer board measuring 478 × 183 mm, with 7 components from 6 distinct parts.
By type, the board carries 3 connectors, 1 switch, 1 transformer and 1 inductor.

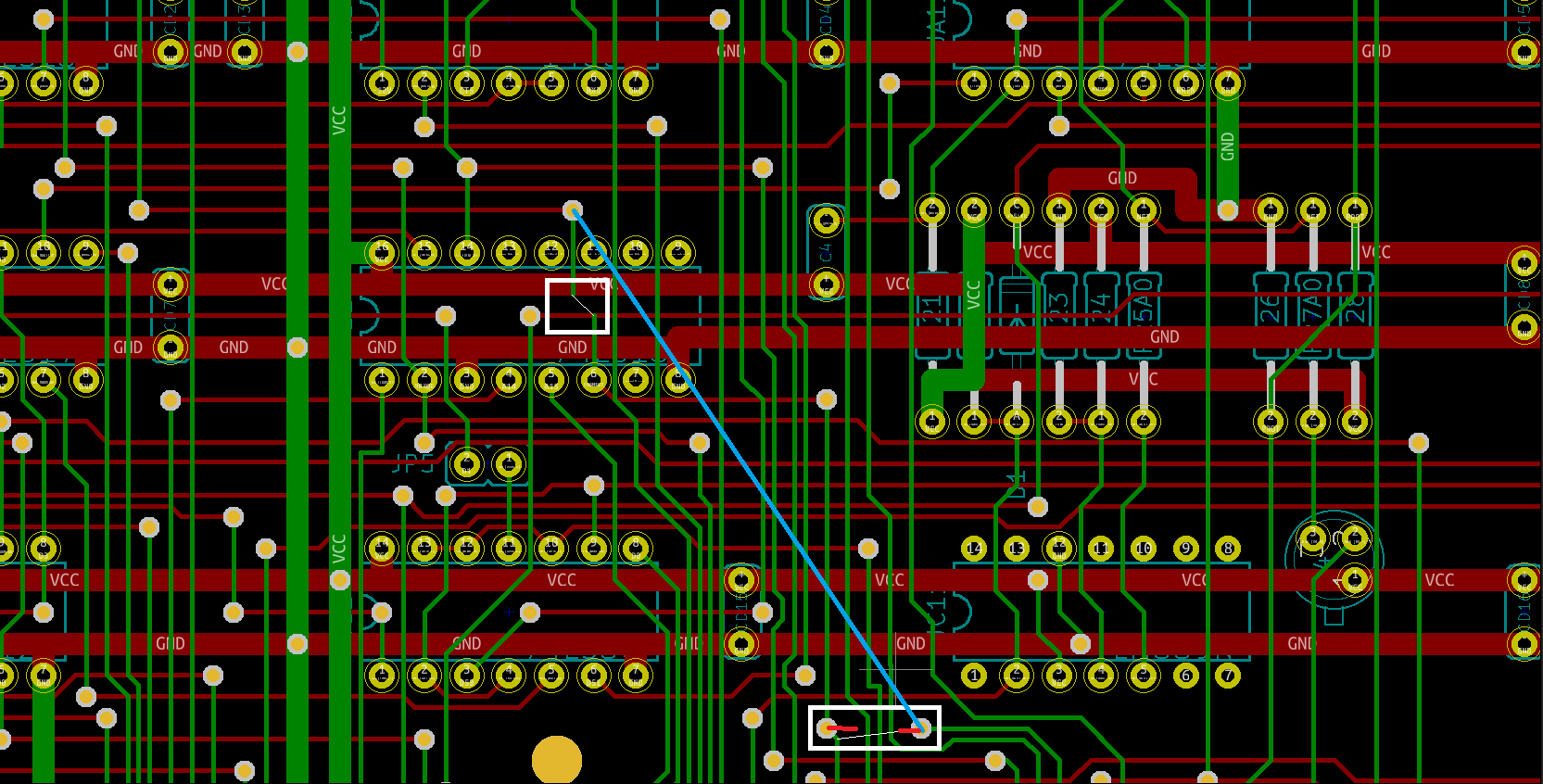

From the project
HC2000 Project
Ce s-a folosit pentru a crea acest proiect: - Versiunea originală a schemei HC-2000 Rev B care a fost obținută prin intermediul grupului Romanian Home Computer (mulțumiri speciale domnului George Chirtoacă) - Schema Eagle a HC-2000 Rev B realizată de dl. Liviu Grama, care este de asemenea membru al grupului Romanian Home Computer - Un exemplar fizic al unui HC-2000 Rev E furnizat de dl. Oică Cezar pentru reparații
HC2000 bill of materials (BOM)
7 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | . | HC-POWER | J4, J6 |
| 1 | HCBUS | HC_Bus_Edge_Connector | Z1 |
| 1 | >VALUE | RESET_SW | SW1 |
| 1 | BD139 | TO-126-3_Vertical | T1 |
| 1 | UM6116-3 | DIL24 | UX1 |
| 1 | 100 | PIS2816 | L1 |
HC2000 design files
The KiCad project lives in the badrianiulian/HC2000 repository on GitHub; these links point at the commit this page was built from.
- LayoutHC2000.kicad_pcb
- SchematicHC2000.kicad_sch
- BOMBOM.xlsx
HC2000: common questions
How big is the HC2000 PCB?
The HC2000 measures 478 × 183 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HC2000?
7 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the HC2000 design files?
From the badrianiulian/HC2000 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the HC2000 design in my own project?
The repository has no license, so all rights stay with badrianiulian. Use it as a reference, and ask the author before reusing the design.
