Glacier elettronica
About the Glacier elettronica PCB
Glacier elettronica is an open source PCB design by bagnasconicolo, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 80 × 55 mm, with 59 components from 42 distinct parts.
Other key parts include the LT3461, TLC555/LMC555, MAX961, MCP1402 and LP2985AIM5-3.6. By type, the board carries 22 resistors, 10 capacitors, 8 ICs, 3 connectors, 2 transistors and 2 diodes.
From the project
Front-end di lettura per un rivelatore di muoni cosmici basato su SiPM + scintillatore: amplificatore veloce, discriminatore a soglia regolabile, generazione del bias del SiPM, uscita TTL e buffer d'uscita verso Arduino.
Front-end di lettura per un rivelatore di muoni cosmici basato su SiPM + scintillatore: amplificatore veloce, discriminatore a soglia regolabile, generazione del bias del SiPM, uscita TTL e buffer d'uscita verso Arduino.

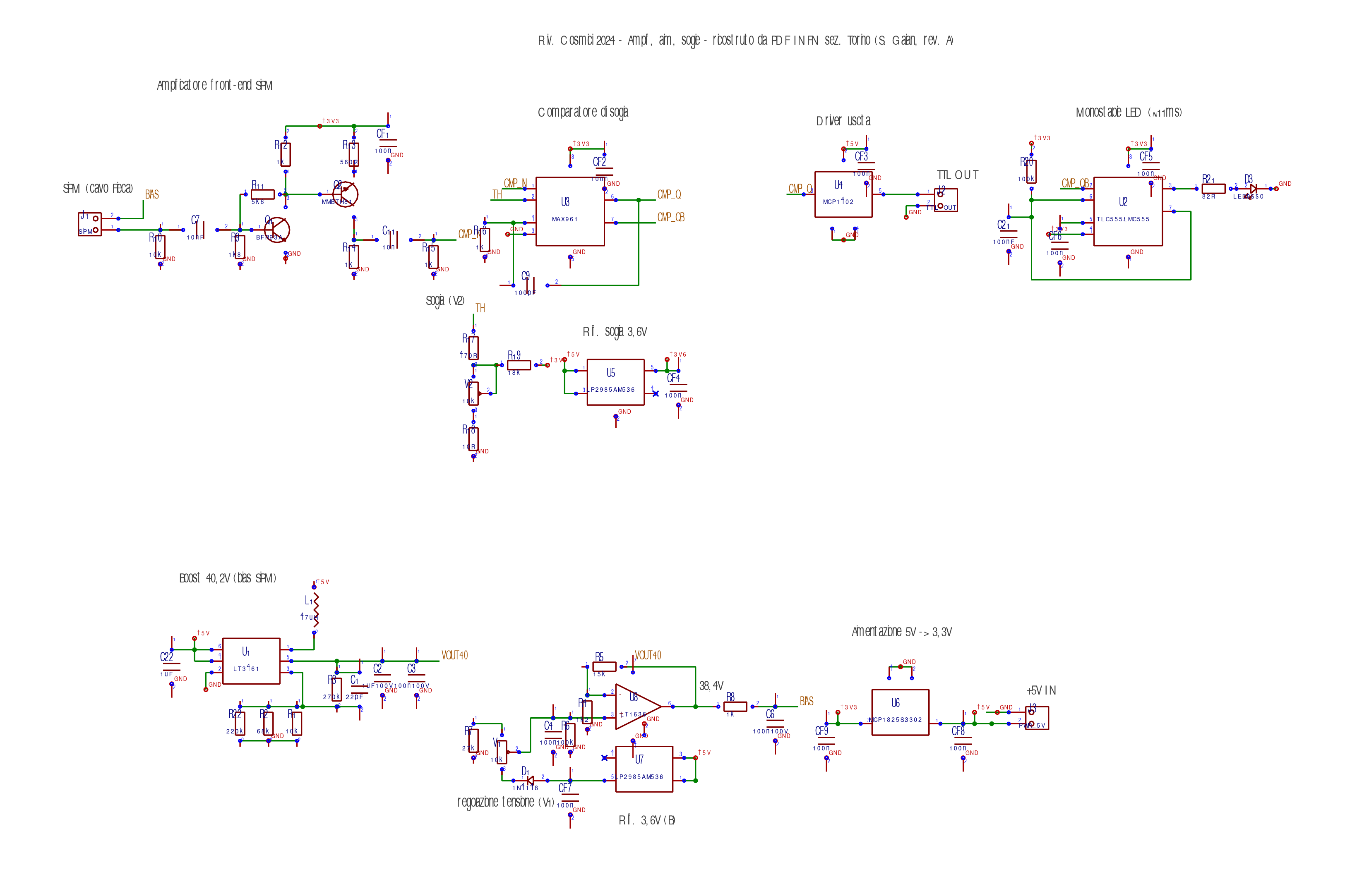

Ricostruzione completa in KiCad — dal solo PDF scansionato dello schema originale INFN sez. Torino ("Riv. Cosmici 2024 — Amplif, alim, soglie", S. Gallian) — accompagnata da simulazioni circuitali non lineari, un verificatore che gira direttamente dallo schema, un sito didattico interattivo e il firmware Arduino per il conteggio.
Main components on the Glacier elettronica
Glacier elettronica bill of materials (BOM)
59 components, 42 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LT3461 | SOT23-6 | U1 |
| 1 | TLC555/LMC555 | SOIC8 | U2 |
| 1 | MAX961 | SOIC8 | U3 |
| 1 | MCP1402 | SOT23-5 | U4 |
| 2 | LP2985AIM5-3.6 | SOT23-5 | U5, U7 |
| 1 | MCP1825S-3302 | SOT223 | U6 |
| 1 | LT1636 | SOIC8 | U8 |
| 1 | BFR93A | SOT23 | Q1 |
| 1 | MMBTH81 | SOT23 | Q2 |
| 1 | SiPM | HDR1x02 | J1 |
| 1 | TTL_OUT | HDR1x02 | J2 |
| 1 | PWR_5V | HDR1x02 | J3 |
| 9 | 100n | C_0805 | CF1, CF2, CF3, CF4, CF5, CF6, CF7, CF8 +1 |
| 2 | 10k | TRIM_3296W | V1, V2 |
| 1 | 1N4148 | D_DO35 | D1 |
| 1 | LED rosso | LED_0805 | D3 |
| 1 | 47uH | L_PWR_5050 | L1 |
| 1 | 22pF | C_0805 | C1 |
| 1 | 1uF 100V | C_1210 | C2 |
| 2 | 100n 100V | C_1206 | C3, C6 |
Show 22 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100n | C_0805 | C4 |
| 1 | 10nF | C_0805 | C7 |
| 1 | 100pF | C_0805 | C9 |
| 1 | 10n | C_0805 | C11 |
| 1 | 100nF | C_0805 | C21 |
| 1 | 1uF | C_0805 | C22 |
| 2 | 10k | R_0805 | R1, R10 |
| 1 | 68k | R_0805 | R2 |
| 1 | 270k | R_0805 | R3 |
| 1 | 1k2 | R_0805 | R4 |
| 1 | 15k | R_0805 | R5 |
| 2 | 100k | R_0805 | R6, R20 |
| 1 | 27k | R_0805 | R7 |
| 5 | 1k | R_0805 | R8, R12, R14, R15, R16 |
| 1 | 1k8 | R_0805 | R9 |
| 1 | 5k6 | R_0805 | R11 |
| 1 | 560R | R_0805 | R13 |
| 1 | 470R | R_0805 | R17 |
| 1 | 10R | R_0805 | R18 |
| 1 | 18k | R_0805 | R19 |
| 1 | 82R | R_0805 | R21 |
| 1 | 220k | R_0805 | R22 |
Glacier elettronica design files
The KiCad project lives in the bagnasconicolo/glacier-elettronica repository on GitHub; these links point at the commit this page was built from.
Glacier elettronica: common questions
How big is the Glacier elettronica PCB?
The Glacier elettronica measures 80 × 55 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Glacier elettronica?
59 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Glacier elettronica design files?
From the bagnasconicolo/glacier-elettronica repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Glacier elettronica design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which bagnasconicolo chose for the repository.
