Adapter blackpill

Bastardkb·adapter-blackpill·adapter/adapter.kicad_pcb

Adapter blackpill PCB layout, top view — open source STM32 board by Bastardkb
Simulate this board

About the Adapter blackpill PCB

Adapter blackpill is an open source STM32 PCB design by Bastardkb, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 93.5 × 67.4 mm, with 24 components from 9 distinct parts.

Its main chip is the STM32F401 / STM32F411 Blackpill Breakout, from the STM32 family. By type, the board carries 12 connectors, 8 resistors, 2 ICs and 2 switches.

From the project

Blackpill holder pcb with breakouts for rgb, trackball etc.

Blackpill holder pcb with breakouts for rgb, trackball etc.

Copyright Quentin Lebastard and Stefan Kerkmann 2021.

PWM Driver - ok with external pullup and adjusted timings see config.h Serial Half-duplex - ok at default speed and up to 3.75MBit/s see config.h SPI EEPROM - ok, PWM3360 - ok from scope, should work with real hardware Splithand detection - ok Bootloader bodge - ok, can enter reliably everytime Matrix - ok

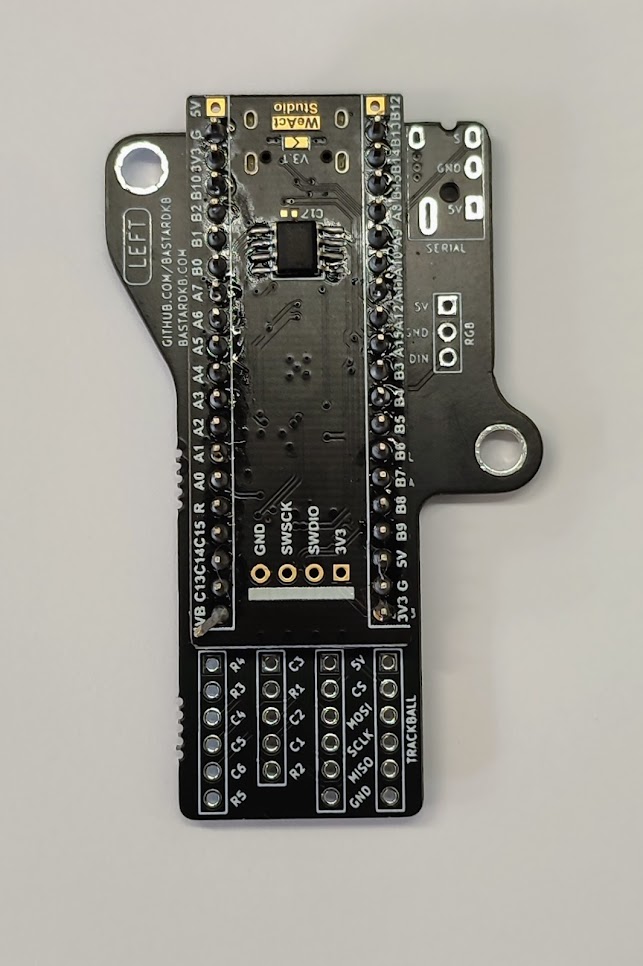

Adapter blackpill, from the project README
From the project README

Main components on the Adapter blackpill

STM32F401 / STM32F411 Blackpill Breakout

Adapter blackpill bill of materials (BOM)

24 components, 9 distinct parts.

QtyPartRefs
2
STM32F401 / STM32F411 Blackpill Breakout
U1, U2
2
Serial
J1, J2
2
RGB
J3, J4
2
Trackball
J5, J7
2
Ribbon
J6, J9
2
Ribbon
J8, J10
2
SPI user
J11, J12
2
USER
SW1, SW2
8
5.1k
R1, R2, R3, R4, R5, R6, R7, R8

Adapter blackpill design files

The KiCad project lives in the Bastardkb/adapter-blackpill repository on GitHub; these links point at the commit this page was built from.

Adapter blackpill: common questions

What microcontroller does the Adapter blackpill use?

The Adapter blackpill is built around the STM32F401 / STM32F411 Blackpill Breakout, from the STM32 family.

How big is the Adapter blackpill PCB?

The Adapter blackpill measures 93.5 × 67.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Adapter blackpill?

24 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Adapter blackpill design files?

From the Bastardkb/adapter-blackpill repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Adapter blackpill design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which Bastardkb chose for the repository.

Can I test firmware for the Adapter blackpill without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
