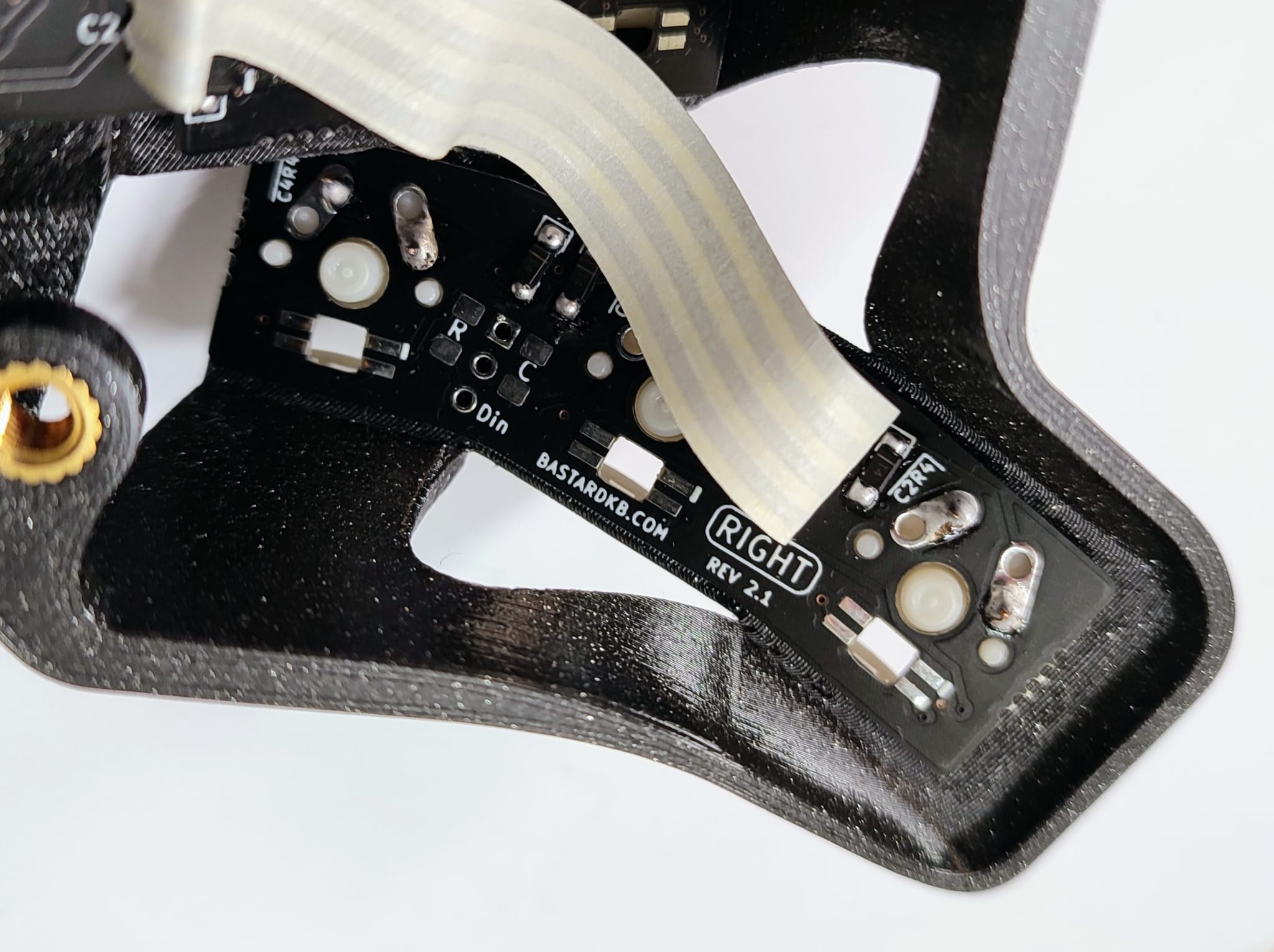

TBK-Mini-PCB-thumb cluster
About the TBK-Mini-PCB-thumb cluster
TBK-Mini-PCB-thumb cluster is an open source PCB design by Bastardkb, published on GitHub. It is a 2-layer board measuring 74.1 × 22.2 mm, with 18 components from 8 distinct parts.
By type, the board carries 9 diodes, 3 switches, 2 connectors, 2 capacitors and 2 resistors.
From the project
Flexible PCB made for the TBK Mini and Skeletyl.
Flexible PCB made for the TBK Mini and Skeletyl.
This repository contains all files necessary to order a PCB.
If you want to modify the design files, the Kicad sources are included. If you just want to order the PCBs, check out the Release section which contain the gerber files.
Order with a 0.6mm or 0.8mm PCB thickness
TBK-Mini-PCB-thumb cluster bill of materials (BOM)
18 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x04_Female | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | Conn_01x03_Female | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 3 | SW_Push | SW_MX_reversible | SW5, SW14, SW19 |
| 3 | D | Diode_TH_SOD123 | D5, D14, D19 |
| 3 | SK6812MINI | YS-SK6812MINI-E_REVERSE | D7, D10, D12 |
| 3 | SK6812MINI | YS-SK6812MINI-E_REVERSE_NO_EDGECUT | D8, D11, D13 |
| 2 | C | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | C1, C2 |
| 2 | R | R_1206_3216Metric_Pad1.42x1.75mm_HandSolder | R1, R2 |
TBK-Mini-PCB-thumb cluster design files
The KiCad project lives in the Bastardkb/TBK-Mini-PCB-thumb-cluster repository on GitHub; these links point at the commit this page was built from.
- Layoutflex/flex.kicad_pcb
- Schematicflex/flex.kicad_sch
TBK-Mini-PCB-thumb cluster: common questions
How big is the TBK-Mini-PCB-thumb cluster?
The TBK-Mini-PCB-thumb cluster measures 74.1 × 22.2 mm, has 2 copper layers and is 0.6 mm thick.
How many components are on the TBK-Mini-PCB-thumb cluster?
18 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the TBK-Mini-PCB-thumb cluster design files?
From the Bastardkb/TBK-Mini-PCB-thumb-cluster repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TBK-Mini-PCB-thumb cluster design in my own project?
The repository has no license, so all rights stay with Bastardkb. Use it as a reference, and ask the author before reusing the design.
