23xx-Adapter
About the 23xx-Adapter PCB
23xx-Adapter is an open source PCB design by Beaupre-Circuit-Design, published on GitHub under the MIT license. It is a 4-layer board measuring 19.7 × 41.9 mm, with 9 components from 2 distinct parts.
Other key parts include the 74HCT138. By type, the board carries 8 resistors and 1 IC.
From the project
Adapter for using a standard JDEC 28/32 pin EPROM/EEPROM to replace a 23xx Rom
This is a rework of the excellent design made by Jim Brain to replace a 23xx ROM with a standard JEDEC 28 or 32 pin EPROM/EEPROM or Flash ROM. The main difference, this version is 1.9mm smaller in width and more centered on the socket, allowing enough spacing to replace all three roms in a C64 long-board version where Jim's is a little bit too large to install two side by side.

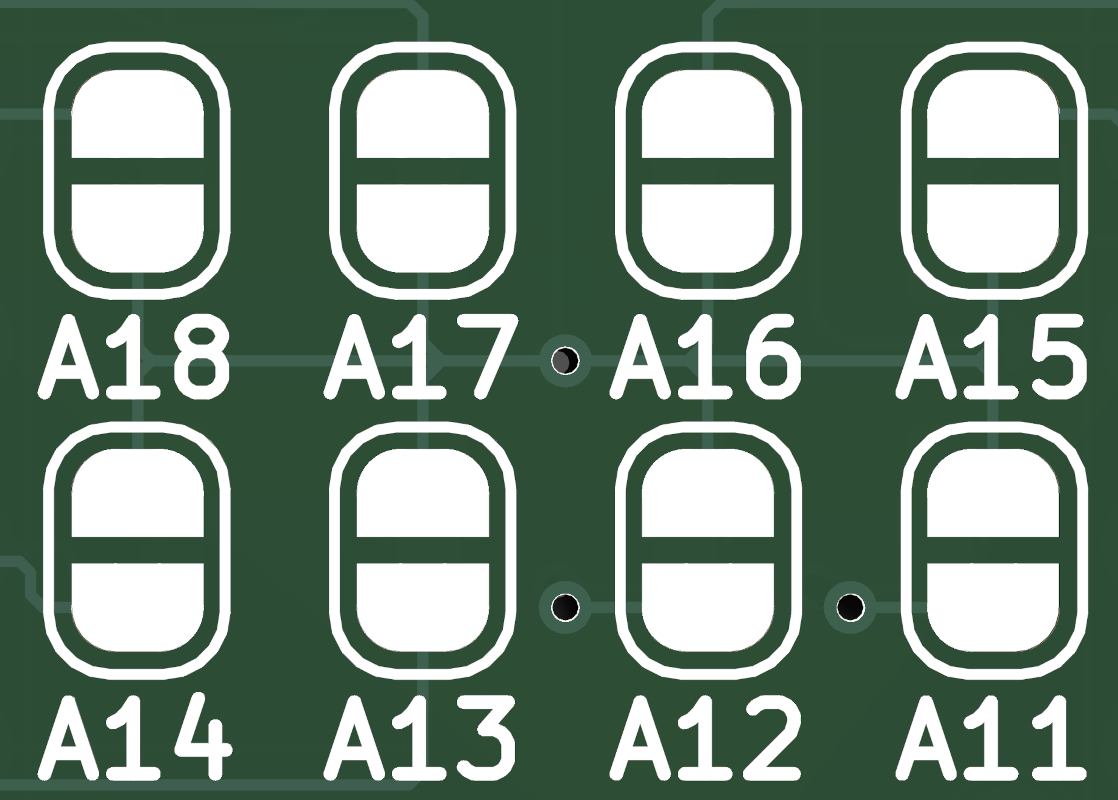

Main components on the 23xx-Adapter
23xx-Adapter bill of materials (BOM)
9 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HCT138 Texas Instruments | SOIC-16_3.9x9.9mm_P1.27mm | U2 |
| 8 | 10KΩ Uniroyal Electronics | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 |
23xx-Adapter design files
The KiCad project lives in the Beaupre-Circuit-Design/23xx-Adapter repository on GitHub; these links point at the commit this page was built from.
23xx-Adapter: common questions
How big is the 23xx-Adapter PCB?
The 23xx-Adapter measures 19.7 × 41.9 mm, has 4 copper layers and is 1.59 mm thick.
How many components are on the 23xx-Adapter?
9 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 23xx-Adapter design files?
From the Beaupre-Circuit-Design/23xx-Adapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 23xx-Adapter design in my own project?
Yes, under the terms of its MIT license, which Beaupre-Circuit-Design chose for the repository.
