Shortcut Keyboard Case BOT PCB layout, top view — open source board by bhoppe-dev

About the Shortcut Keyboard Case BOT PCB

Shortcut Keyboard Case BOT is an open source PCB design by bhoppe-dev, published on GitHub under the BSD-2-Clause license. It is a 2-layer board measuring 100 × 79 mm, with 8 components from 1 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

Open source macro keyboard featuring eight Cherry MX switches, rotary encoder and full configurability.

A programmable macro keyboard project featuring 8 customizable keys and a rotary encoder for volume control. Built with an RP2040 microcontroller and Cherry MX switches.

- 8 programmable macro keys with Cherry MX switches (Blue or Brown) - Rotary encoder with push button for volume control/mute - USB-C connectivity - RP2040 microcontroller - CircuitPython firmware - Windows compatibility - Up to 3 different profiles for key configurations - No additional drivers required

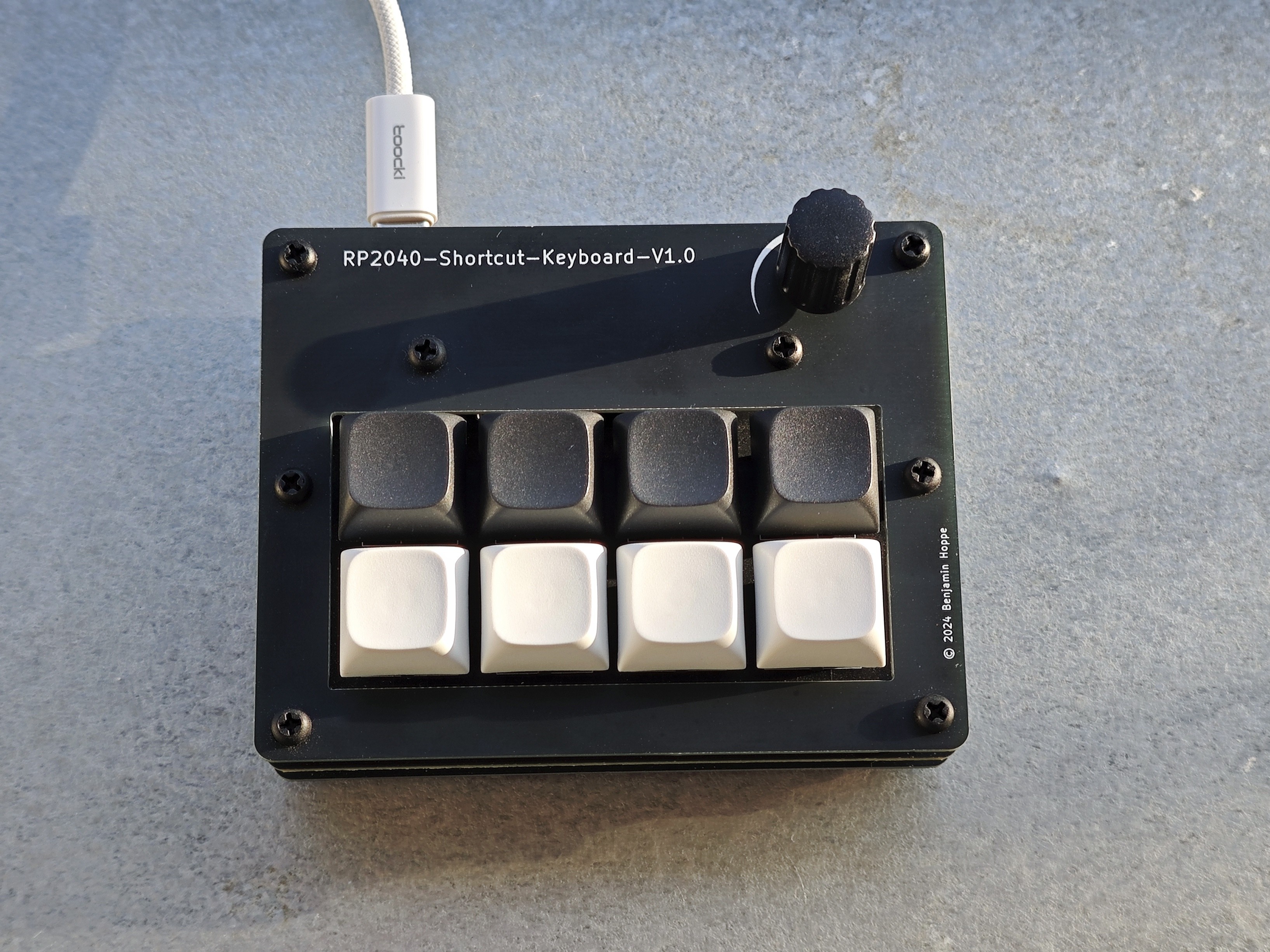

Shortcut Keyboard Case BOT, from the project README
From the project README

Shortcut Keyboard Case BOT bill of materials (BOM)

8 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
8
MountingHole
H1, H2, H3, H4, H5, H6, H7, H8

Shortcut Keyboard Case BOT design files

The KiCad project lives in the bhoppe-dev/Shortcut_Keyboard repository on GitHub; these links point at the commit this page was built from.

Shortcut Keyboard Case BOT: common questions

How big is the Shortcut Keyboard Case BOT PCB?

The Shortcut Keyboard Case BOT measures 100 × 79 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Shortcut Keyboard Case BOT?

8 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Shortcut Keyboard Case BOT design files?

From the bhoppe-dev/Shortcut_Keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Shortcut Keyboard Case BOT design in my own project?

Yes, under the terms of its BSD-2-Clause license, which bhoppe-dev chose for the repository.
