Keys righthand

blueOkiris·ps-ohk·keys-righthand-deprecated-r3/keys-righthand.kicad_pcb

Keys righthand PCB layout, top view — open source board by blueOkiris

About the Keys righthand PCB

Keys righthand is an open source PCB design by blueOkiris, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 190.6 × 229.6 mm, with 83 components from 2 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

Type with only one hand

1) the most common letters used 2) relationships between sounds 3) the shape of a left hand 4) practicality

The PS-OHK (pronounced "psawk" [p͡sɑk̚]) aims to be the ultimate one-handed typing experience all without special modifiers (a standard key count) and a layout that is relatively easy to get used to.

- arduino-cli - make - sdcc - ch55xtool - libusb

Hold program button down, plug in, let go of program button, and run make -C fw upload within 3 seconds

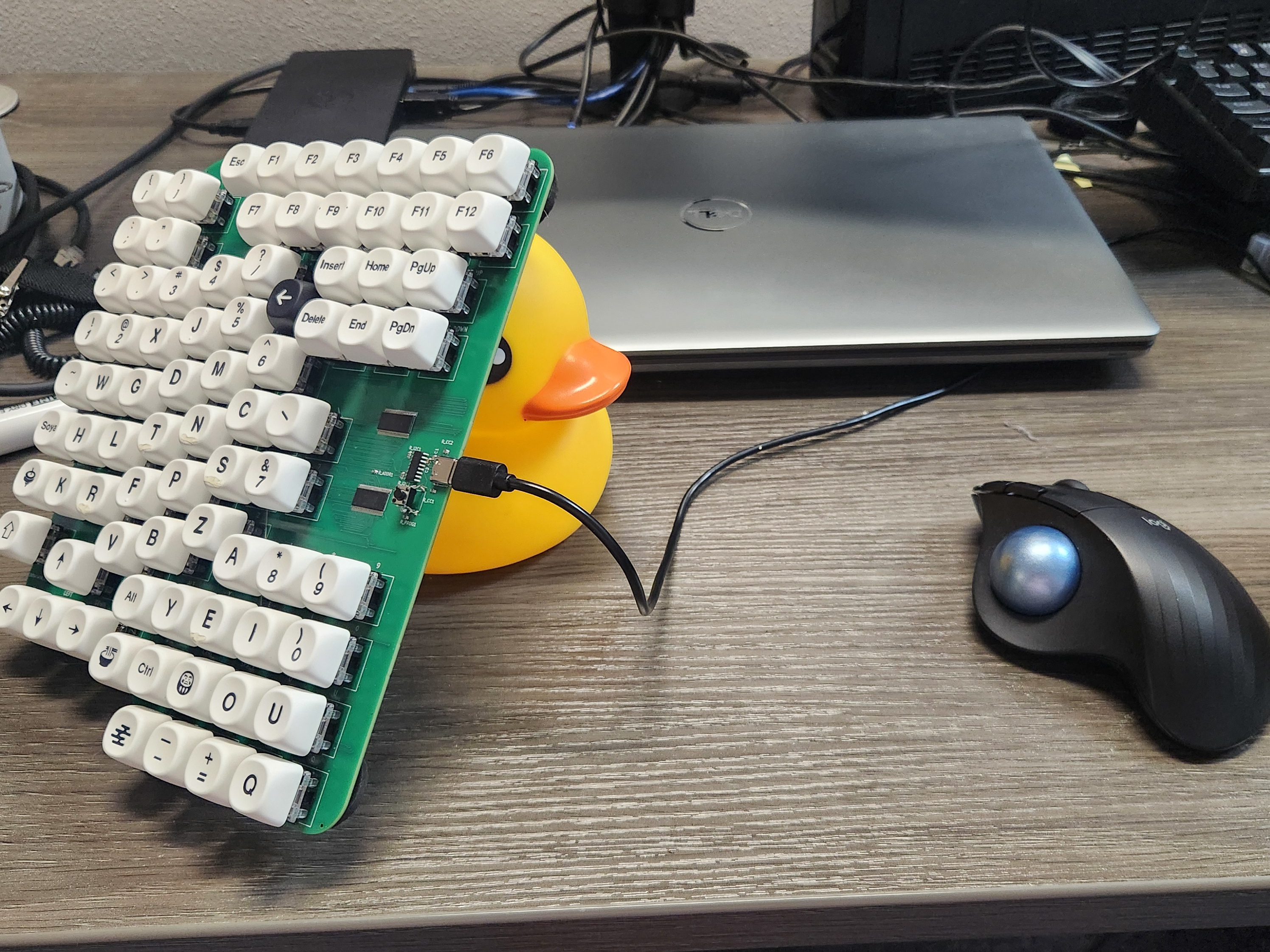

Keys righthand, from the project README
From the project README

Keys righthand bill of materials (BOM)

83 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
Conn_01x20
J1, J2, J3, J4
79
COM-13834
~
S_1, S_2, S_3, S_4, S_5, S_6, S_7, S_8 +71
