BF-036
About the BF-036 PCB
BF-036 is an open source PCB design by botanicfields, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 97.8 × 45.7 mm, with 85 components from 21 distinct parts.
By type, the board carries 64 diodes, 16 switches, 4 capacitors and 1 connector.
From the project

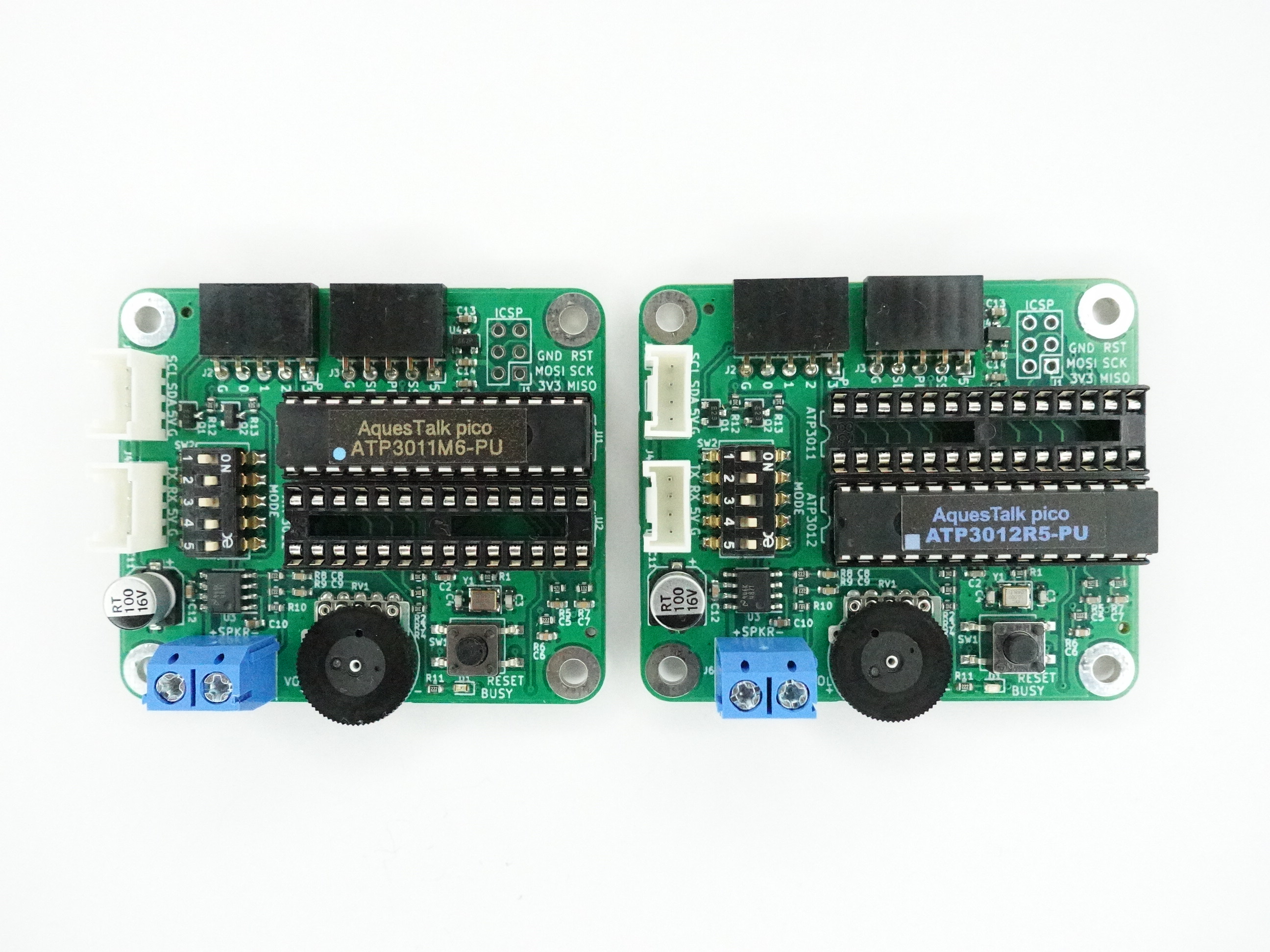

AquesTalk pico LSI into the Grove of M5
DIP: Dual In-line Package I2C: Inte-Integrated Circuit UART: Universal Asynchronous Receiver Transmitter SPI: Serial Peripheral Interface
※ AquesTalk pico LSIは付属しません。 ※ スピーカー、スピーカーケーブルは付属しません。 ※ ケースや足などは付属しません。
※ 1, 2, 3, 4, 5は、DIPスイッチの番号です。DIPスイッチはONでGND接続のため、ON=0, OFF=1です。 (1) ATP3011の場合、SLEEP解除後の'?'送信で自動設定します。ATP3012の場合EEPROMに設定します。 (2) 音声再生の前後にノイズが発生します。
- UARTスピードを設定（ATP3011が対象。UARTのみ。デフォルト: 実行しない） AquesTalk pico LSI (ATP3011) のUARTスピードを設定します。GPIO5がAquesTalk pico LSIのSLEEPピンと接続している必要があります。
BF-036 bill of materials (BOM)
85 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CODE | PinHeader_1x05_P2.54mm_Horizontal | J1 |
| 1 | 0 | SW_PUSH_6mm | SW1 |
| 1 | C54951 1 | SW_PUSH_6mm | SW2 |
| 1 | 2 | SW_PUSH_6mm | SW3 |
| 1 | 3 | SW_PUSH_6mm | SW4 |
| 1 | 4 | SW_PUSH_6mm | SW5 |
| 1 | 5 | SW_PUSH_6mm | SW6 |
| 1 | 6 | SW_PUSH_6mm | SW7 |
| 1 | 7 | SW_PUSH_6mm | SW8 |
| 1 | 8 | SW_PUSH_6mm | SW9 |
| 1 | 9 | SW_PUSH_6mm | SW10 |
| 1 | 10 | SW_PUSH_6mm | SW11 |
| 1 | 11 | SW_PUSH_6mm | SW12 |
| 1 | 12 | SW_PUSH_6mm | SW13 |
| 1 | 13 | SW_PUSH_6mm | SW14 |
| 1 | 14 | SW_PUSH_6mm | SW15 |
| 1 | 15 | SW_PUSH_6mm | SW16 |
| 1 | C72038 D | D_DO-35_SOD27_P7.62mm_Horizontal | D1 |
| 63 | D | D_DO-35_SOD27_P7.62mm_Horizontal | D2, D3, D4, D5, D6, D7, D8, D9 +55 |
| 2 | 100N 10n | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1, C2 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10P 10n | C_Disc_D4.3mm_W1.9mm_P5.00mm | C3, C4 |
BF-036 design files
The KiCad project lives in the botanicfields/PCB-Grove-AquesTalk-pico-LSI repository on GitHub; these links point at the commit this page was built from.
BF-036: common questions
How big is the BF-036 PCB?
The BF-036 measures 97.8 × 45.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BF-036?
85 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BF-036 design files?
From the botanicfields/PCB-Grove-AquesTalk-pico-LSI repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the BF-036 design in my own project?
Yes, under the terms of its CC0-1.0 license, which botanicfields chose for the repository.
