Nafanya PCB layout, top view — open source board by BrettHallen

About the Nafanya PCB

Nafanya is an open source PCB design by BrettHallen, published on GitHub. It is a 2-layer board measuring 193 × 102.3 mm, with 56 components from 49 distinct parts.

By type, the board carries 41 switches, 9 resistors, 4 connectors, 1 speaker and 1 diode.

It belongs with the keyboards and test & measurement designs in this gallery.

From the project

Hardware projects for the Nafanya ZX Spectrum Clone

My particular example has a nice, ceramic Z80 from DDR (East Germany) as well as a ceramic БМК (Basic Matrix Crystal, Soviet version of a ULA or Gate Array).

It looked like the original, good quality capacitors were removed from my machine due to their precious-metal content. They were substituted with poor quality replacements. I, in turn, replaced them with better quality ones ... this greatly stabilised the RGB video output! I also added a lot more decoupling capacitors - there was provision for them on the board but they were not installed.

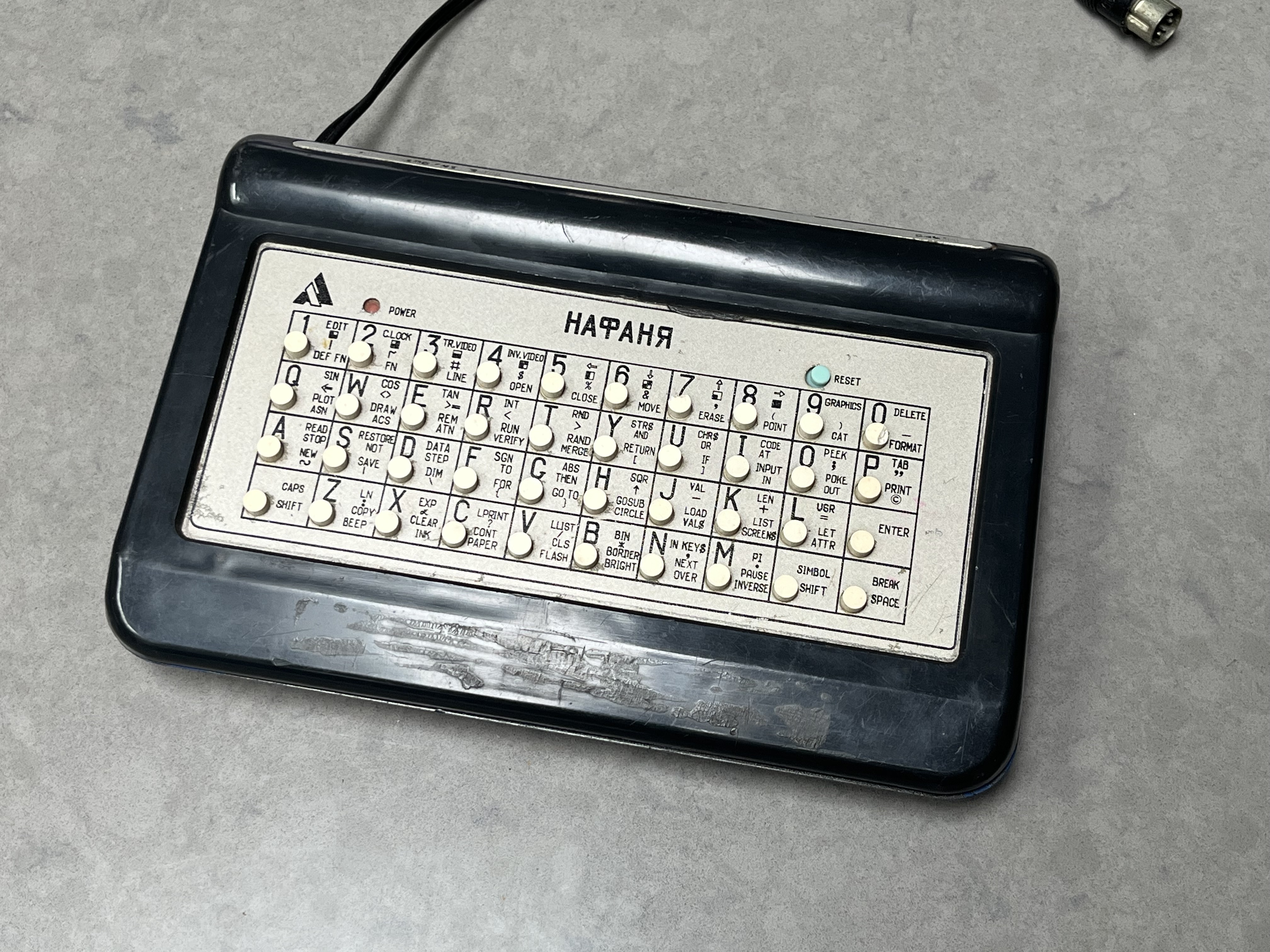

Nafanya, from the project README
From the project README

Nafanya bill of materials (BOM)

56 components, 49 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Speaker/Reset/Power
J1
1
Columns
J2
1
Rows
J3
1
Faceplate GND
J4
1
Speaker
LS1
1
1
SW1
1
2
SW2
1
3
SW3
1
4
SW4
1
5
SW5
1
6
SW6
1
7
SW7
1
8
SW8
1
9
SW9
1
0
SW10
1
Q
SW11
1
W
SW12
1
E
SW13
1
R
SW14
1
T
SW15
Show 29 more
QtyPartRefs
1
Y
SW16
1
U
SW17
1
I
SW18
1
O
SW19
1
P
SW20
1
A
SW21
1
S
SW22
1
D
SW23
1
F
SW24
1
G
SW25
1
H
SW26
1
J
SW27
1
K
SW28
1
L
SW29
1
ENTER
SW30
1
CAPS_SHIFT
SW31
1
Z
SW32
1
X
SW33
1
C
SW34
1
V
SW35
1
B
SW36
1
N
SW37
1
M
SW38
1
SYMBOL_SHIFT
SW39
1
BREAK_SPACE
SW40
1
RESET/СБРОС
SW41
1
POWER
D1
1
300Ω
R1
8
10KΩ
R2, R3, R4, R5, R6, R7, R8, R9

Nafanya design files

The KiCad project lives in the BrettHallen/Nafanya repository on GitHub; these links point at the commit this page was built from.

Nafanya: common questions

How big is the Nafanya PCB?

The Nafanya measures 193 × 102.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nafanya?

56 components, from 49 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nafanya design files?

From the BrettHallen/Nafanya repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Nafanya design in my own project?

The repository has no license, so all rights stay with BrettHallen. Use it as a reference, and ask the author before reusing the design.
