BFK9kv2-left

bruj0·BFK9000·BFK9kv2-left/BFK9kv2-left.kicad_pcb

BFK9kv2-left PCB layout, top view — open source board by bruj0

About the BFK9kv2-left PCB

BFK9kv2-left is an open source PCB design by bruj0, published on GitHub. It is a 2-layer board measuring 188.3 × 117.9 mm, with 162 components from 10 distinct parts.

By type, the board carries 54 resistors, 52 relays, 52 diodes, 3 connectors and 1 transistor.

It belongs with the keyboards designs in this gallery.

From the project

A custom split keyboard

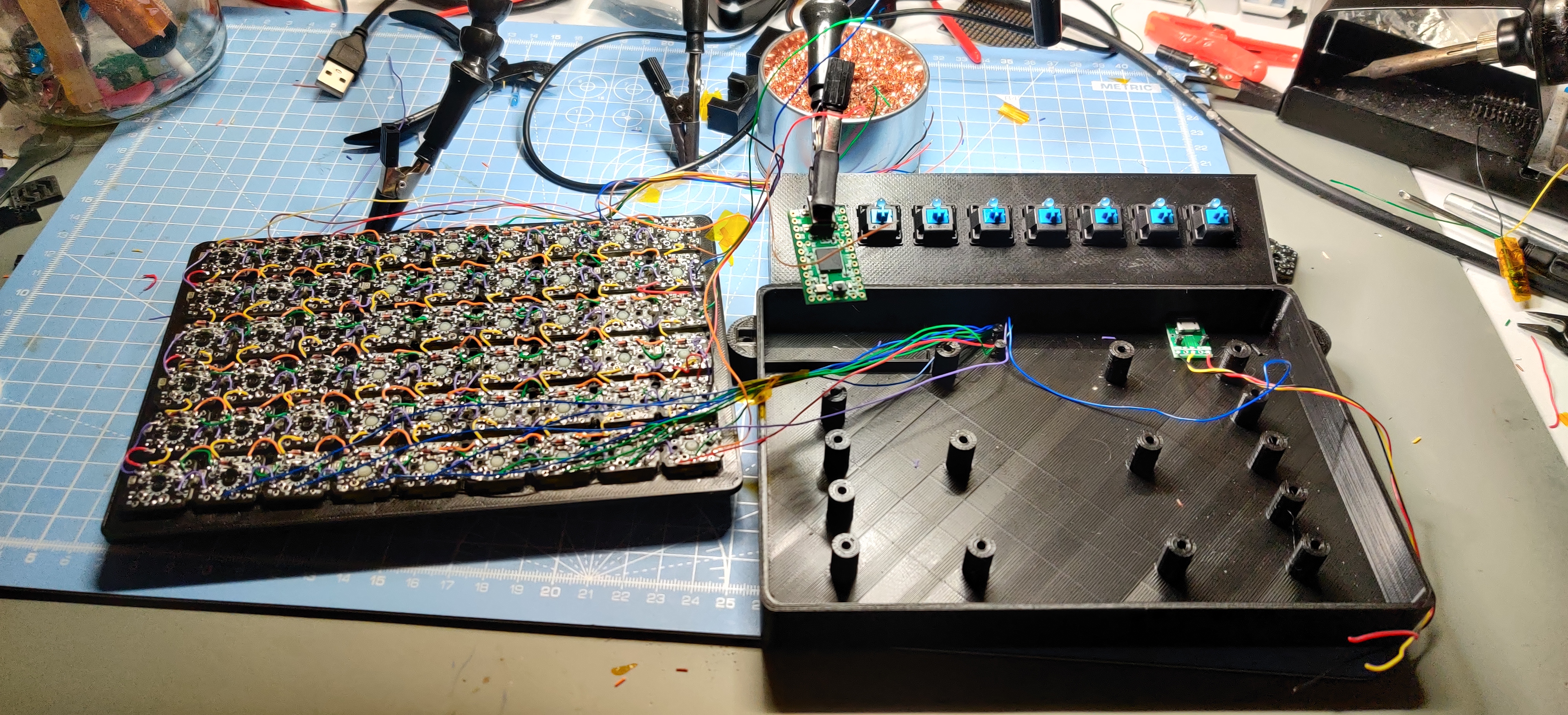

BFK9kv2-left, from the project README
From the project README

BFK9kv2-left bill of materials (BOM)

162 components, 10 distinct parts.

QtyPartRefs
1
BC817
Q1
2
Conn_01x08_MountingPin
J1, J2
1
Conn_01x04_MountingPin
J3
43
CherryMX_LED
K1-1, K1-2, K1-3, K1-5, K1-6, K1-7, K1-8, K1-9 +35
8
CherryMX_LED
K1-4, K2-4, K3-4, K4-4, K5-4, K6-4, K6-5, K6-6
1
CherryMX_LED
K6-7
52
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +44
52
R
R1, R2, R3, R4, R5, R6, R7, R8 +44
1
470R
R48
1
10k
R49

BFK9kv2-left design files

The KiCad project lives in the bruj0/BFK9000 repository on GitHub; these links point at the commit this page was built from.

BFK9kv2-left: common questions

How big is the BFK9kv2-left PCB?

The BFK9kv2-left measures 188.3 × 117.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BFK9kv2-left?

162 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the BFK9kv2-left design files?

From the bruj0/BFK9000 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the BFK9kv2-left design in my own project?

The repository has no license, so all rights stay with bruj0. Use it as a reference, and ask the author before reusing the design.
