KeyTestBox PCB layout, top view — open source STM32 board by Brunomvsilva

About the KeyTestBox PCB

KeyTestBox is an open source STM32 PCB design by Brunomvsilva, published on GitHub. It is a 2-layer board measuring 198.1 × 108.7 mm, with 14 components from 9 distinct parts.

Its main chip is the STM32F767VIT6, from the STM32 family. By type, the board carries 11 connectors, 2 switches and 1 IC.

From the project

Embedded platform developed at Preh Portugal to integrate automotive HMI key-testing systems in production environments

Embedded platform designed to integrate automotive HMI key-testing systems in production environments.

This project was developed at Preh Portugal as part of my Master’s thesis.

- Preview - Introduction - Typical Key Test Output - Incremental vs Continuous Tests - Incremental Tests - Continuous Tests - Problem Statement - Problem 1: Delay when reading UUT data via CAN or LIN - Problem 2: Low resolution and missed events - Consequence: Forced to use expensive continuous test systems - Solution, Main Goals and Requirements - Main Goals - Hardware Requirements - Software Requirements -…

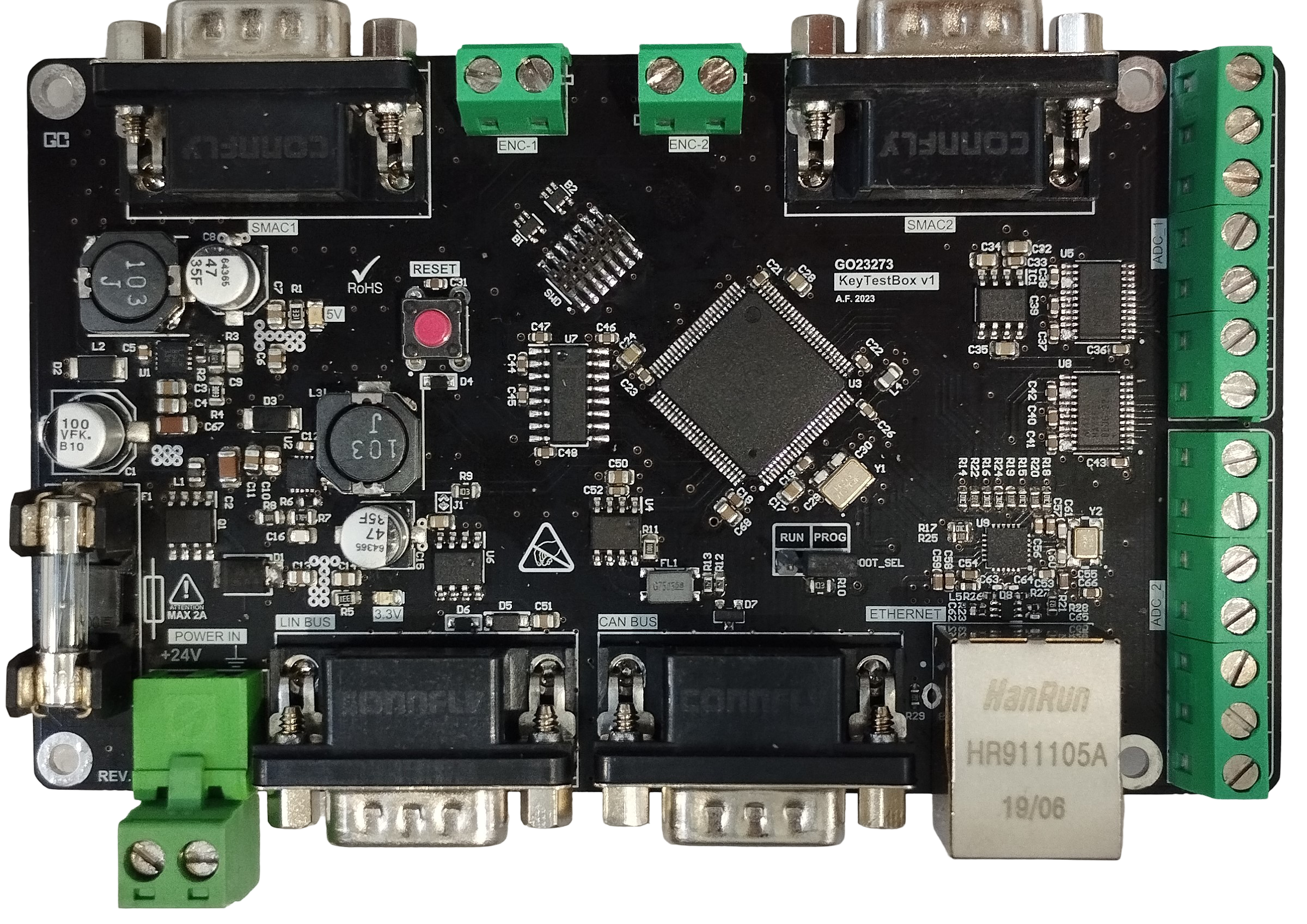

KeyTestBox, from the project README
From the project README

Main components on the KeyTestBox

STM32F767VIT6

KeyTestBox bill of materials (BOM)

14 components, 9 distinct parts.

QtyPartRefs
1
STM32F767VIT6
U1
1
Conn_02x07_Odd_Even
J1
3
Screw_Terminal_01x02
J2, J11, J12
1
SCREW_TERM_1x7
J3
1
RJHSE-5384
J4
4
DB9
J5, J6, J7, J8
1
Screw_Terminal_01x07
J9
1
SW_SPDT
SW1
1
ResetButton
SW2

KeyTestBox design files

The KiCad project lives in the Brunomvsilva/KeyTestBox repository on GitHub; these links point at the commit this page was built from.

KeyTestBox: common questions

What microcontroller does the KeyTestBox use?

The KeyTestBox is built around the STM32F767VIT6, from the STM32 family.

How big is the KeyTestBox PCB?

The KeyTestBox measures 198.1 × 108.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KeyTestBox?

14 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the KeyTestBox design files?

From the Brunomvsilva/KeyTestBox repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KeyTestBox design in my own project?

The repository has no license, so all rights stay with Brunomvsilva. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the KeyTestBox without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
