FPGA Pre Test
About the FPGA Pre Test PCB
FPGA Pre Test is an open source PCB design by bsiyoung, published on GitHub under the MIT license. It is a 2-layer board measuring 50.5 × 34.8 mm, with 43 components from 26 distinct parts.
Other key parts include the ZMR330FTA, LM3880MFX-1AB/NOPB and TPS62147RGXT. By type, the board carries 21 resistors, 11 capacitors, 4 ICs, 2 connectors, 2 switches and 2 inductors.
From the project

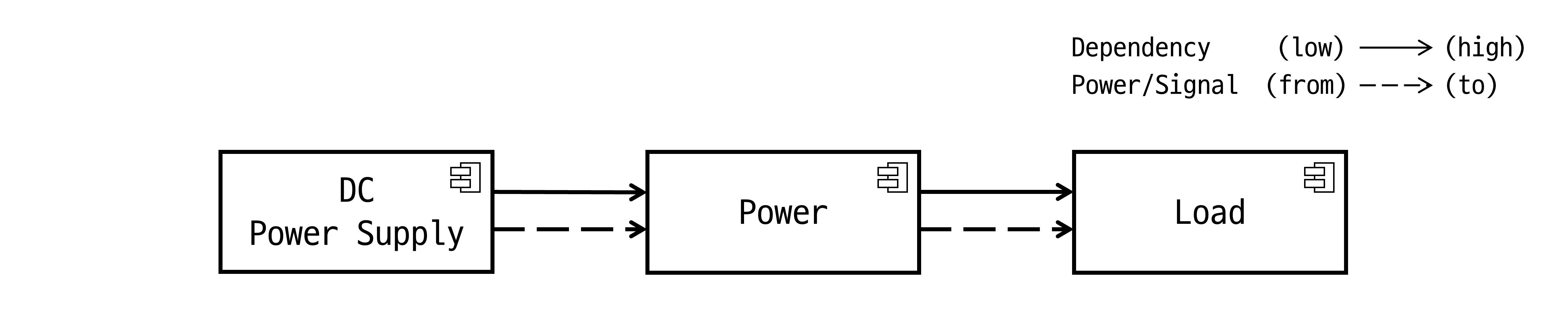

Testing power rails and oscillator waveforms for FPGA use.
This simple project is for testing power rails and external oscillator to use them on FPGA circuit design.
Main components on the FPGA Pre Test
FPGA Pre Test bill of materials (BOM)
43 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ZMR330FTA | ZMR330FTA | IC1 |
| 1 | LM3880MFX-1AB/NOPB LM3880MFX-1AB_NOPB | SOT95P280X145-6N | IC2 |
| 2 | TPS62147RGXT | TPS62147RGXT | IC3, IC4 |
| 1 | ASDMB-25.000MHZ-XY-T | AbraconASDMB | Y1 |
| 2 | T50201500000G | T50201500000G | J1, J2 |
| 1 | JS202011SCQN | JS202011SCQN | S1 |
| 1 | 219-4MST | 2194MST | S2 |
| 2 | 74479325207222 | 74479325207222 | L1, L2 |
| 1 | 22uF | C_1206_3216Metric | C1 |
| 1 | 4.7uF | C_0805_2012Metric | C2 |
| 1 | 4.7uF | C_0603_1608Metric | C3 |
| 2 | 22nF | C_0402_1005Metric | C4, C6 |
| 2 | 22uF | C_0805_2012Metric | C5, C8 |
| 1 | 10uF | C_0603_1608Metric | C7 |
| 1 | 47uF | C_1210_3225Metric | C9 |
| 2 | 100uF | C_1206_3216Metric | C10, C11 |
| 1 | 33k | R_0603_1608Metric | R1 |
| 5 | 100k | R_0603_1608Metric | R2, R3, R4, R5, R8 |
| 3 | 205k | R_0603_1608Metric | R6, R10, R12 |
| 2 | 130k | R_0603_1608Metric | R7, R11 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 226k | R_0603_1608Metric | R9 |
| 1 | 54.9k | R_0603_1608Metric | R13 |
| 1 | 634k | R_0603_1608Metric | R14 |
| 1 | 102k | R_0603_1608Metric | R15 |
| 5 | 0 | R_1206_3216Metric | R16, R17, R18, R19, R20 |
| 1 | 14.7k | R_0603_1608Metric | R21 |
FPGA Pre Test design files
The KiCad project lives in the bsiyoung/FPGA_Pre_Test repository on GitHub; these links point at the commit this page was built from.
FPGA Pre Test: common questions
How big is the FPGA Pre Test PCB?
The FPGA Pre Test measures 50.5 × 34.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the FPGA Pre Test?
43 components, from 26 distinct parts. The full bill of materials is listed on this page.
Where can I download the FPGA Pre Test design files?
From the bsiyoung/FPGA_Pre_Test repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the FPGA Pre Test design in my own project?
Yes, under the terms of its MIT license, which bsiyoung chose for the repository.
