Igs rom adapter

buffis·igs_rom_adapter·adapter/everstar.kicad_pcb

Igs rom adapter PCB layout, top view — open source board by buffis
Simulate this board

About the Igs rom adapter PCB

Igs rom adapter is an open source PCB design by buffis, published on GitHub. It is a 2-layer board measuring 90.2 × 62.2 mm, with 9 components from 5 distinct parts.

By type, the board carries 5 resistors and 4 connectors.

From the project

Adapter for dumping IGS/Everstar ROMs

Simple adapter for dumping IGS/Everstar EV29LV160 and EV29LV640 ROMs with any programmer supporting M27V322 EPROMs.

These ROMs appear on IGS-made boards, and are not supported by most programmers.

Note that these ROMs are 3.3V. Make sure your programmer uses 3.3V supply voltage for M27V322.

Gerbers ready for fabrication is available in adapter/gerber/gerber.zip

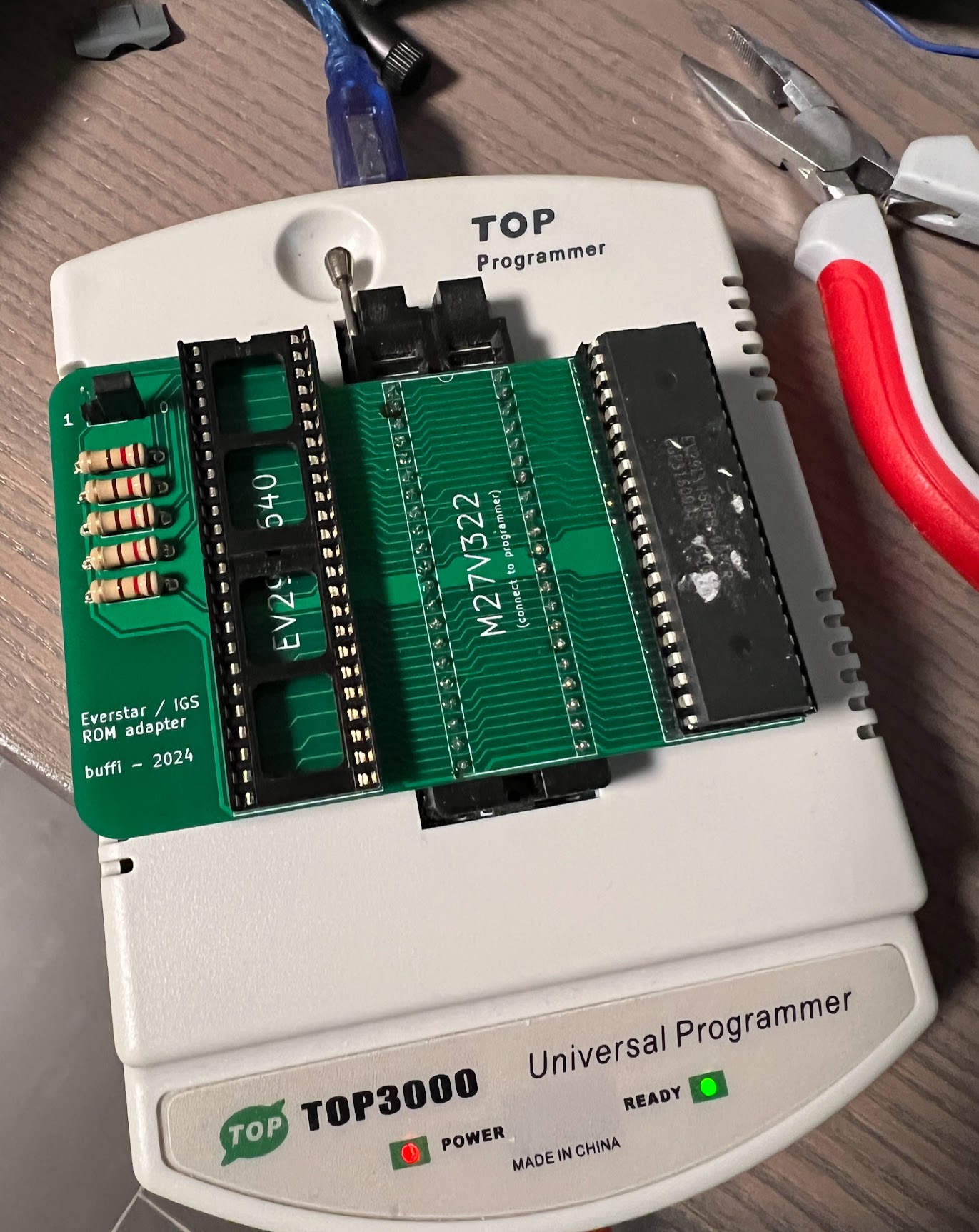

Igs rom adapter, from the project README
