About the Ramboard PCB
Ramboard is an open source PCB design by c0pperdragon, published on GitHub. It is a 4-layer board measuring 40.6 × 17.8 mm, with 4 components from 3 distinct parts.
Other key parts include the CY62167ELL-45ZXIT. By type, the board carries 2 ICs and 2 connectors.
From the project

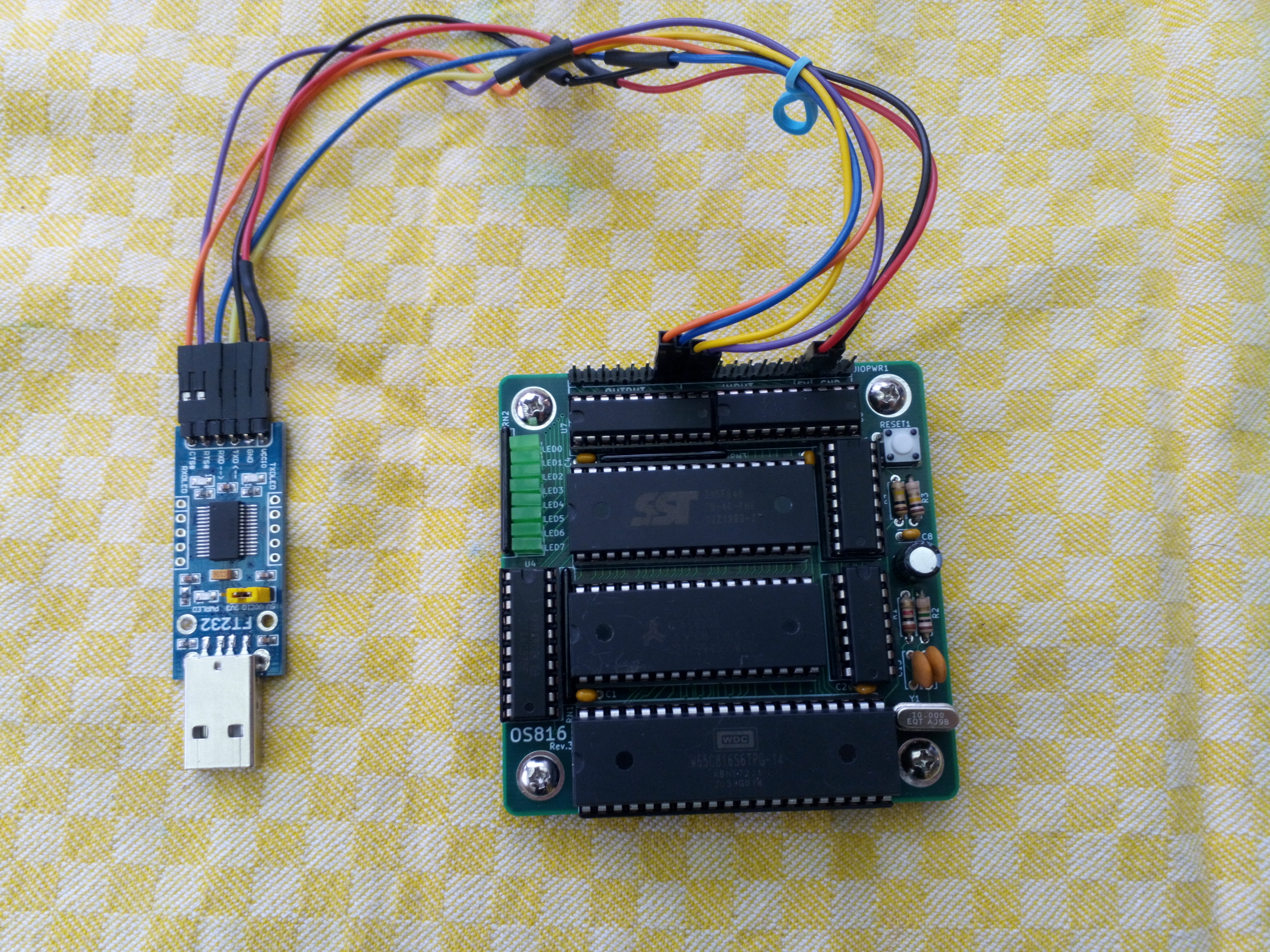

An experimental single-board computer using the 65C816
A small single board computer using the 65C816 processor running at 10MHz, together with 512KB of RAM, 512KB of flash and a simple but effective I/O circuitry.
I made a small boot loader program for this hardware sitting in the top 4KB of flash to upload further code via a serial connection to avoid the need of swapping the Flash IC in and out of the board all the time.

Main components on the Ramboard
Ramboard bill of materials (BOM)
4 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | CY62167ELL-45ZXIT | TSOP-I-48_18.4x12mm_P0.5mm_shortpad | U1, U2 |
| 1 | Conn_02x16_Counter_Clockwise | DIP-32_W15.24mm_Socket | J1 |
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J2 |
Ramboard design files
The KiCad project lives in the c0pperdragon/OS816 repository on GitHub; these links point at the commit this page was built from.
- Layoutramboard/ramboard.kicad_pcb
- Schematicramboard/ramboard.kicad_sch
- BOMmainboard/BOM.md
Ramboard: common questions
How big is the Ramboard PCB?
The Ramboard measures 40.6 × 17.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Ramboard?
4 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ramboard design files?
From the c0pperdragon/OS816 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Ramboard design in my own project?
The repository has no license, so all rights stay with c0pperdragon. Use it as a reference, and ask the author before reusing the design.
