Syzygy octosdi
calebfletcher·syzygy-octosdi

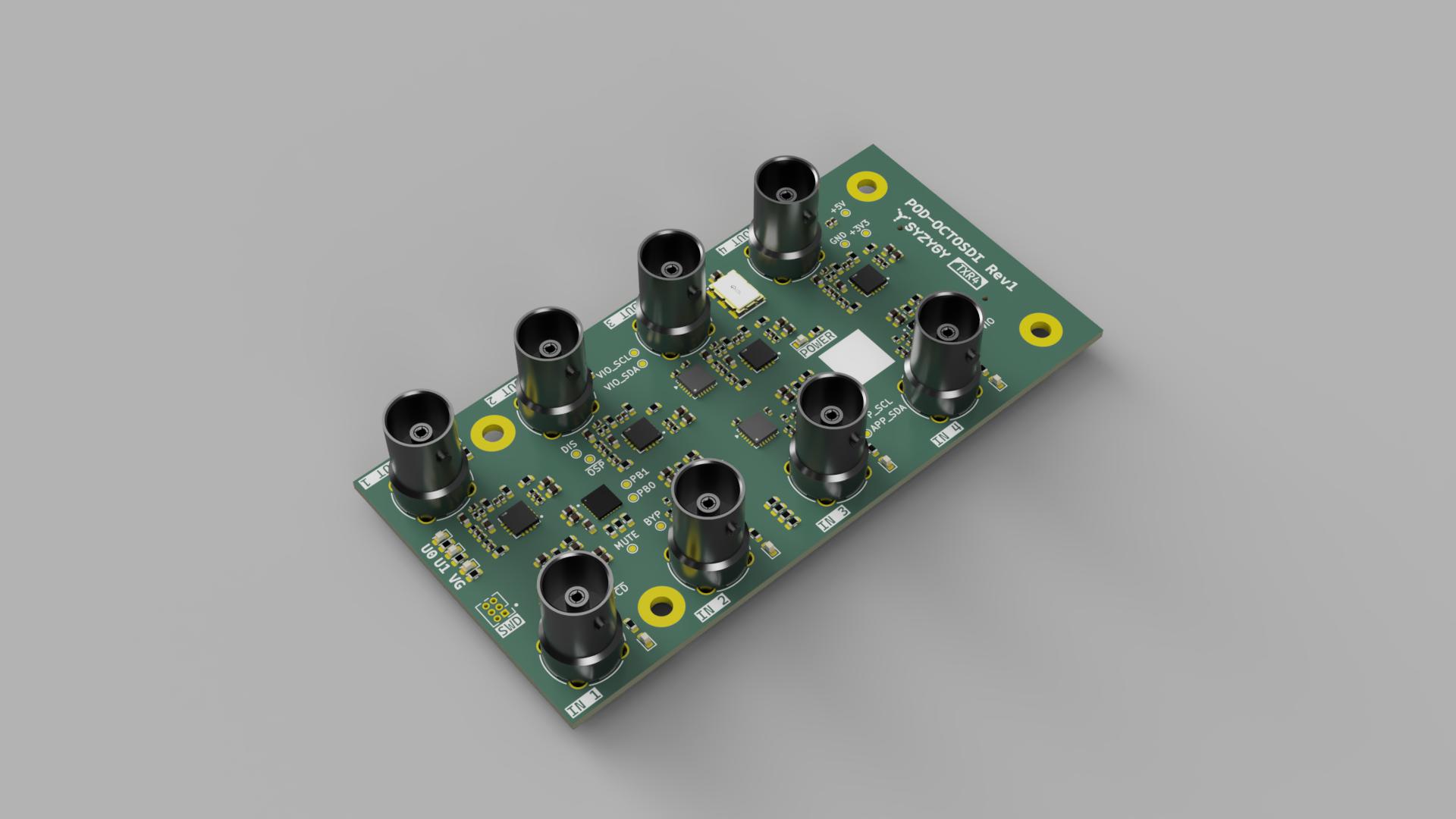

About the Syzygy octosdi PCB
Syzygy octosdi is an open source STM32 PCB design by calebfletcher, published on GitHub. It is a 4-layer board measuring 100 × 50 mm, with 211 components from 29 distinct parts.
Its main chip is the STM32G031G8Ux, from the STM32 family. Other key parts include the LMH0344SQE_NOPB, PCAL6416AHF and GS2988-INE3. By type, the board carries 87 capacitors, 83 resistors, 12 diodes, 11 ICs, 9 connectors and 8 inductors.
From the project
SYZYGY TXR4 Compatible SDI-3G Pod, with quad inputs and quad outputs.
SYZYGY™ TXR4 Compatible 3G-SDI Pod, with quad inputs and quad outputs.
Compatible with the SYZYGY Specification Version 1.1.1. The "SYZYGY™" mark is owned by Opal Kelly.
Four layers, 1.6 mm, 1 oz outer/0.5 oz inner, JLC04161H-7628 stackup, controlled impedance.
Following the pod compatibility table in Appendix A of the SYZYGY Specification Version 1.1.1:
The current budgets are conservative estimates from the schematic and component specifications; they have not been verified by measurement. The 5V pin is routed only to a test point. VIO powers the I/O side of the two expanders and the…

Main components on the Syzygy octosdi
Syzygy octosdi bill of materials (BOM)
211 components, 29 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | LMH0344SQE_NOPB Texas Instruments | WQFN-16-1EP_4x4mm_P0.65mm_EP2.6x2.6mm_ThermalVias | U1, U2, U3, U4 |
| 2 | PCAL6416AHF | HVQFN-24-1EP_4x4mm_P0.5mm_EP2.1x2.1mm | U5, U6 |
| 4 | GS2988-INE3 SEMTECH | GS2988-INE3 | U7, U8, U9, U10 |
| 1 | STM32G031G8Ux | UFQFPN-28_STM | U11 |
| 1 | SX7DF148_500B20F30DNN Shenzhen SCTF Elec | SX7DF148_500B20F30DNN | X1 |
| 1 | QTH-020-01-F-D-DP-A Samtec | QTH-020-01-F-D-DP-A | CN1 |
| 8 | Conn_BNC Molex | CONN_73171-1900_MOL | J1, J2, J3, J4, J5, J6, J7, J8 |
| 1 | LED Red | LED_0603_1608Metric | D1 |
| 10 | LED Green | LED_0603_1608Metric | D2, D3, D4, D5, D6, D7, D8, D9 +2 |
| 1 | LED Orange | LED_0603_1608Metric | D12 |
| 4 | 3n9 | L_0402_1005Metric | L1, L2, L3, L4 |
| 4 | 5n6 | L_0402_1005Metric | L5, L6, L7, L8 |
| 18 | 10n | C_0402_1005Metric | C1, C2, C45, C46, C51, C52, C55, C56 +10 |
| 26 | 4u7 | C_0603_1608Metric | C3, C9, C10, C18, C19, C27, C28, C36 +18 |
| 11 | 100n | C_0603_1608Metric | C4, C12, C13, C21, C22, C30, C31, C39 +3 |
| 8 | C | C_0402_1005Metric | C5, C14, C23, C32, C53, C63, C73, C83 |
| 8 | 1u | C_0402_1005Metric | C6, C7, C15, C16, C24, C25, C33, C34 |
| 8 | 1u | C_0603_1608Metric | C8, C11, C17, C20, C26, C29, C35, C38 |
| 8 | 100n | C_0402_1005Metric | C41, C42, C43, C44, C49, C59, C69, C79 |
| 9 | 1k | R_0603_1608Metric | R1, R9, R16, R23, R30, R36, R47, R58 +1 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 26 | 10k | R_0603_1608Metric | R2, R3, R4, R5, R10, R11, R17, R18 +18 |
| 24 | 75 | R_0402_1005Metric | R6, R7, R13, R14, R20, R21, R27, R28 +16 |
| 4 | 37.4 | R_0402_1005Metric | R8, R15, R22, R29 |
| 4 | 0 | R_0603_1608Metric | R12, R19, R26, R33 |
| 8 | 49.9 | R_0402_1005Metric | R34, R35, R45, R46, R56, R57, R67, R68 |
| 4 | 750 1% | R_0603_1608Metric | R37, R48, R59, R70 |
| 2 | 2k2 | R_0603_1608Metric | R78, R79 |
| 1 | 10k 1% | R_0603_1608Metric | R80 |
| 1 | 4k7 | R_0603_1608Metric | R83 |
Syzygy octosdi design files
The KiCad project lives in the calebfletcher/syzygy-octosdi repository on GitHub; these links point at the commit this page was built from.
- Layoutsyzygy-octosdi.kicad_pcb
- Schematicsyzygy-octosdi.kicad_sch
Syzygy octosdi: common questions
What microcontroller does the Syzygy octosdi use?
The Syzygy octosdi is built around the STM32G031G8Ux, from the STM32 family.
How big is the Syzygy octosdi PCB?
The Syzygy octosdi measures 100 × 50 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Syzygy octosdi?
211 components, from 29 distinct parts. The full bill of materials is listed on this page.
Where can I download the Syzygy octosdi design files?
From the calebfletcher/syzygy-octosdi repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Syzygy octosdi design in my own project?
The repository has no license, so all rights stay with calebfletcher. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Syzygy octosdi without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
