HSMC-GPIO
About the HSMC-GPIO PCB
HSMC-GPIO is an open source PCB design by calebreister, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 63.5 × 78.1 mm, with 113 components from 14 distinct parts.
Other key parts include the MC78M05_TO252 and PCA9507. By type, the board carries 44 resistors, 42 diodes, 20 capacitors, 4 connectors, 2 ICs and 1 jumper.
From the project

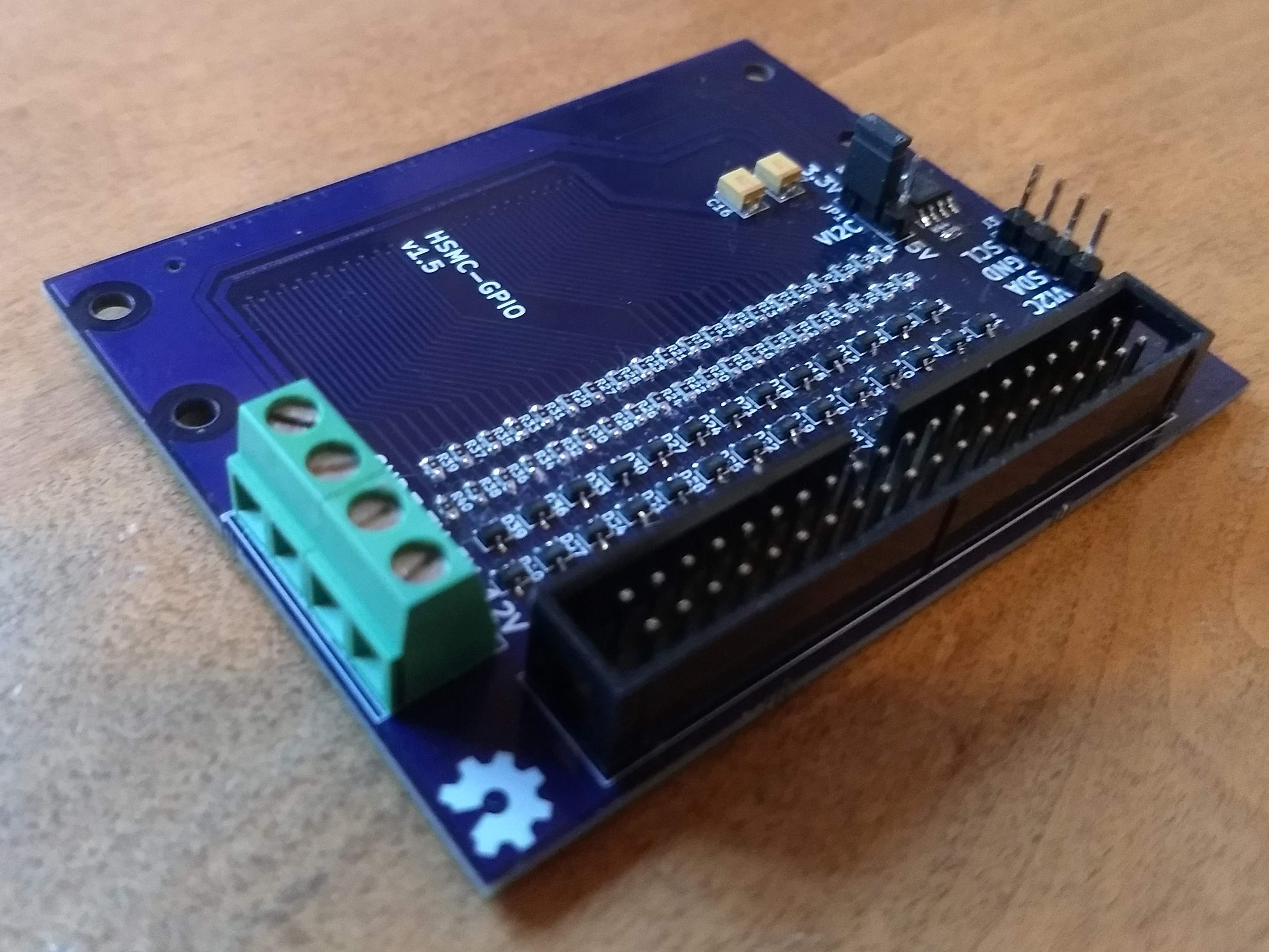

This is a project created to test my new HSMC Card KiCad footprints. It is based loosely on the Terasis HSTC-GPIO Card. In small quantities, the cost is comparable to the HSTC-GPIO Card.
Main components on the HSMC-GPIO
HSMC-GPIO bill of materials (BOM)
113 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC78M05_TO252 | TO-252-2 | U1 |
| 1 | PCA9507 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | Conn_02x20_Odd_Even | IDC-Header_2x20_P2.54mm_Vertical | J1 |
| 1 | HSMC_Card_QTH | Samtec_HSMC_Card_QTH-090-01-x-D-A_3.076x0.932in_P0.5mm_Vertical | J2 |
| 1 | I2C | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | Screw_Terminal_01x04 | TerminalBlock_bornier-4_P5.08mm | J4 |
| 1 | Jumper_3_Bridged12 | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 40 | BAT54S | SOT-323_SC-70 | D1, D2, D3, D4, D5, D6, D7, D8 +32 |
| 2 | BAT54S | SOT-23 | D41, D42 |
| 15 | 100n | C_0805_2012Metric | C1, C2, C3, C4, C5, C6, C7, C8 +7 |
| 5 | 10u | CP_EIA-3528-21_Kemet-B | C16, C17, C18, C19, C20 |
| 40 | 50 | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 +32 |
| 2 | 10k | R_0603_1608Metric | R41, R42 |
| 2 | 2k | R_0603_1608Metric | R43, R44 |
HSMC-GPIO design files
The KiCad project lives in the calebreister/HSMC-GPIO-kicad repository on GitHub; these links point at the commit this page was built from.
HSMC-GPIO: common questions
How big is the HSMC-GPIO PCB?
The HSMC-GPIO measures 63.5 × 78.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HSMC-GPIO?
113 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the HSMC-GPIO design files?
From the calebreister/HSMC-GPIO-kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the HSMC-GPIO design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which calebreister chose for the repository.
