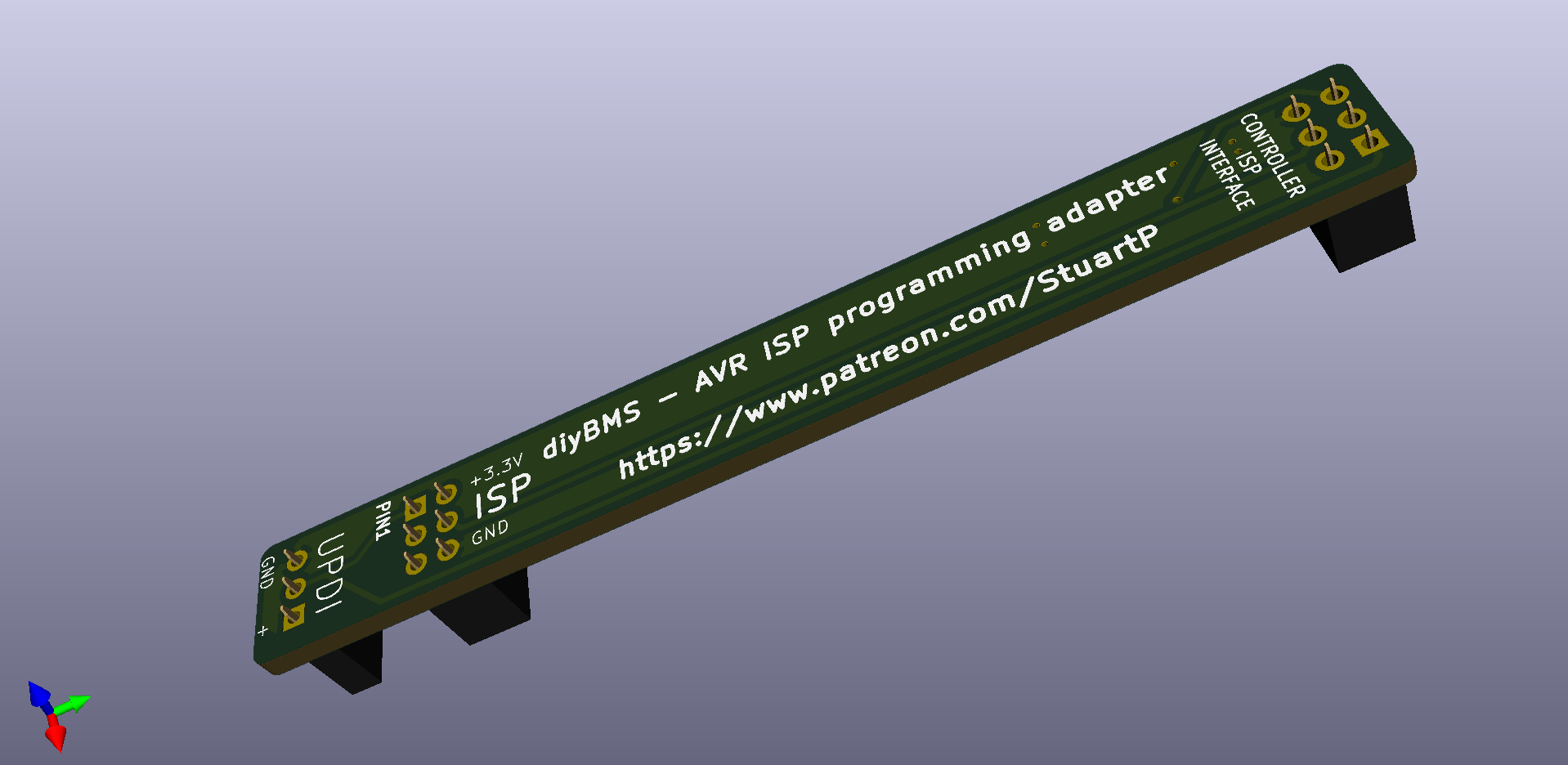

ProgrammingAdapter
About the ProgrammingAdapter PCB
ProgrammingAdapter is an open source PCB design by chipsi, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 10.5 × 83 mm, with 3 components from 3 distinct parts.
From the project
Note this is a simple PCB which connects the 6 pin ISP header to a 6 pin ISP header (straight through)
Note this is a simple PCB which connects the 6 pin ISP header to a 6 pin ISP header (straight through)
It is often simpler to use a ribbon cable and two 6 pin plugs!
ProgrammingAdapter bill of materials (BOM)
3 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AVR-ISP-6 | PinSocket_2x03_P2.54mm_Vertical | J1 |
| 1 | SCREWTERMINAL3PIN AVR-ISP-6 | PinSocket_2x03_P2.54mm_Vertical | J2 |
| 1 | SCREWTERMINAL3PIN Conn_01x03_Female | PinSocket_1x03_P2.54mm_Vertical | J3 |
ProgrammingAdapter design files
The KiCad project lives in the chipsi/diyBMSv4 repository on GitHub; these links point at the commit this page was built from.
ProgrammingAdapter: common questions
How big is the ProgrammingAdapter PCB?
The ProgrammingAdapter measures 10.5 × 83 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ProgrammingAdapter?
3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ProgrammingAdapter design files?
From the chipsi/diyBMSv4 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the ProgrammingAdapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
