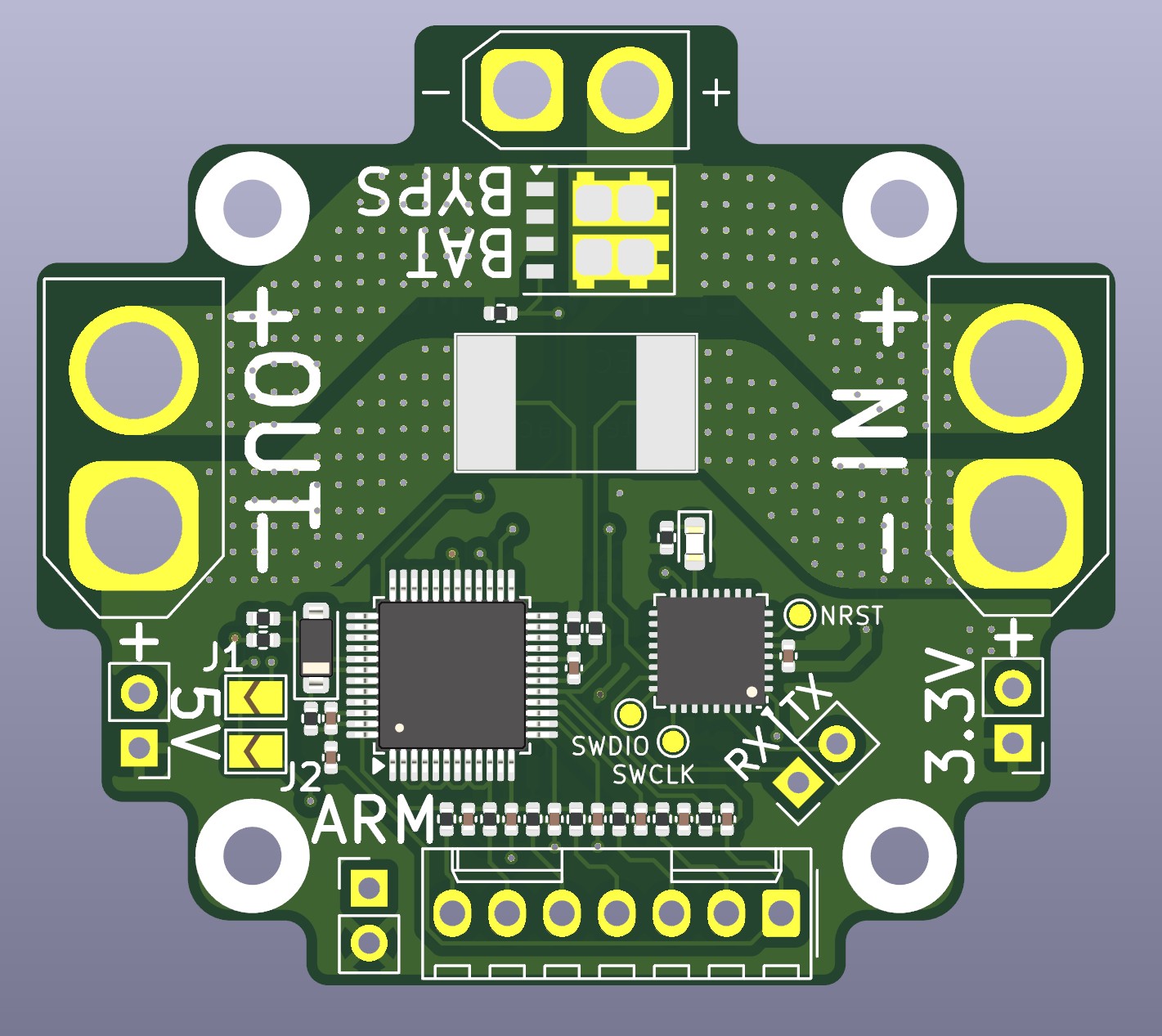

About the CoCEL-Battery-Monitor PCB
CoCEL-Battery-Monitor is an open source STM32 PCB design by CoCEL-Team-Drone, published on GitHub. It is a 4-layer board measuring 50 × 44.5 mm, with 61 components from 30 distinct parts.
Its main chip is the STM32G031K8UX, from the STM32 family. Other key parts include the BQ76942 and BD9E302EFJ. By type, the board carries 25 capacitors, 25 resistors, 4 ICs, 2 jumpers, 2 diodes and 2 inductors.
It belongs with the power & battery designs in this gallery.
From the project
LiPo battery monitor for 4~6s multicopters
A high-current LiPo battery monitor with individual cell voltage sensing
[!IMPORTANT] This project is currently under development! Especially cell voltage monitoring circuit. Please stay tuned for future updates.
The CoCEL LiPo Battery Monitor is a dedicated power management and monitoring solution for multicopters. It measures total pack voltage, discharge current, and individual cell voltages, interfacing with a FC via UART.

Main components on the CoCEL-Battery-Monitor
CoCEL-Battery-Monitor bill of materials (BOM)
61 components, 30 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BQ76942 | TQFP-48_7x7mm_P0.5mm | U1 |
| 1 | STM32G031K8UX STM32G031K8Ux | QFN-32-1EP_5x5mm_P0.5mm_EP3.45x3.45mm | U2 |
| 2 | BD9E302EFJ | HTSOP-8-1EP_3.9x4.9mm_P1.27mm_EP2.4x3.2mm | U3, U4 |
| 1 | STL325N4LF8AG | ST_PowerFLAT-6L_5x6mm_P1.27mm | Q1 |
| 2 | JUMPER_2_SMALL_OPEN Jumper_2_Small_Open | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP1, JP2 |
| 1 | S1AFL | D_SOD-123 | D1 |
| 1 | LED | LED_0603_1608Metric | D2 |
| 1 | 4.7UH 4.7uH | L_7.3x7.3_H4.5 | L1 |
| 1 | 3.3UH 3.3uH | L_7.3x7.3_H4.5 | L2 |
| 7 | 0.22UF 0.22uF | C_0402_1005Metric | C1, C2, C3, C4, C5, C6, C7 |
| 1 | 1UF 1uF | C_0402_1005Metric | C8 |
| 1 | 0.47UF 0.47uF | C_0402_1005Metric | C9 |
| 2 | 0.1UF 0.1uF | C_0402_1005Metric | C10, C14 |
| 1 | 0.1uF | C_0402_1005Metric | C11 |
| 1 | 0.47uF | C_0402_1005Metric | C13 |
| 4 | 0.1UF 0.1uF | C_0603_1608Metric | C15, C17, C22, C23 |
| 2 | 10UF 10uF | C_1210_3225Metric | C16, C21 |
| 2 | 6.8NF 6.8nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C18, C24 |
| 4 | 22UF 22uF | C_1210_3225Metric | C19, C20, C25, C26 |
| 7 | 47 | R_0402_1005Metric | R1, R2, R3, R4, R5, R6, R7 |
Show 10 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 100 | R_0402_1005Metric | R8, R10, R11, R22 |
| 1 | 1M | R_0402_1005Metric | R9 |
| 1 | 0.001 | R_3920_10052Metric | R12 |
| 5 | 10K 10k | R_0402_1005Metric | R13, R17, R21, R26, R27 |
| 1 | 430K 430k | R_0402_1005Metric | R14 |
| 1 | 82K 82k | R_0402_1005Metric | R15 |
| 1 | 6.8K 6.8k | R_0402_1005Metric | R18 |
| 1 | 75K 75k | R_0402_1005Metric | R19 |
| 1 | 24K 24k | R_0402_1005Metric | R20 |
| 2 | 10k | R_0402_1005Metric | R28, R29 |
CoCEL-Battery-Monitor design files
The KiCad project lives in the CoCEL-Team-Drone/CoCEL-Battery-Monitor repository on GitHub; these links point at the commit this page was built from.
CoCEL-Battery-Monitor: common questions
What microcontroller does the CoCEL-Battery-Monitor use?
The CoCEL-Battery-Monitor is built around the STM32G031K8UX, from the STM32 family.
How big is the CoCEL-Battery-Monitor PCB?
The CoCEL-Battery-Monitor measures 50 × 44.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the CoCEL-Battery-Monitor?
61 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the CoCEL-Battery-Monitor design files?
From the CoCEL-Team-Drone/CoCEL-Battery-Monitor repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the CoCEL-Battery-Monitor design in my own project?
The repository has no license, so all rights stay with CoCEL-Team-Drone. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the CoCEL-Battery-Monitor without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
