Keeby

codecooker1·keeby·PCB/keeby.kicad_pcb

Keeby PCB layout, top view — open source board by codecooker1
Simulate this board

About the Keeby PCB

Keeby is an open source PCB design by codecooker1, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 147.6 × 127.8 mm, with 244 components from 10 distinct parts.

By type, the board carries 62 switches, 60 capacitors, 58 diodes, 58 inductors, 4 connectors and 2 resistors.

It belongs with the keyboards designs in this gallery.

From the project

A custom ergonomic split keyboard made for HackClub Blueprint based on Corne, Lily58 and Sofle V2

Alternatively, you can view the Onshape design here: https://cad.onshape.com/documents/7252c9cab477090fa80b5ebe/w/9b87afb059b10e97f9e15540/e/26e119e6690b400aabda07c5

For detailed view the .step files is in PCB/3dout/

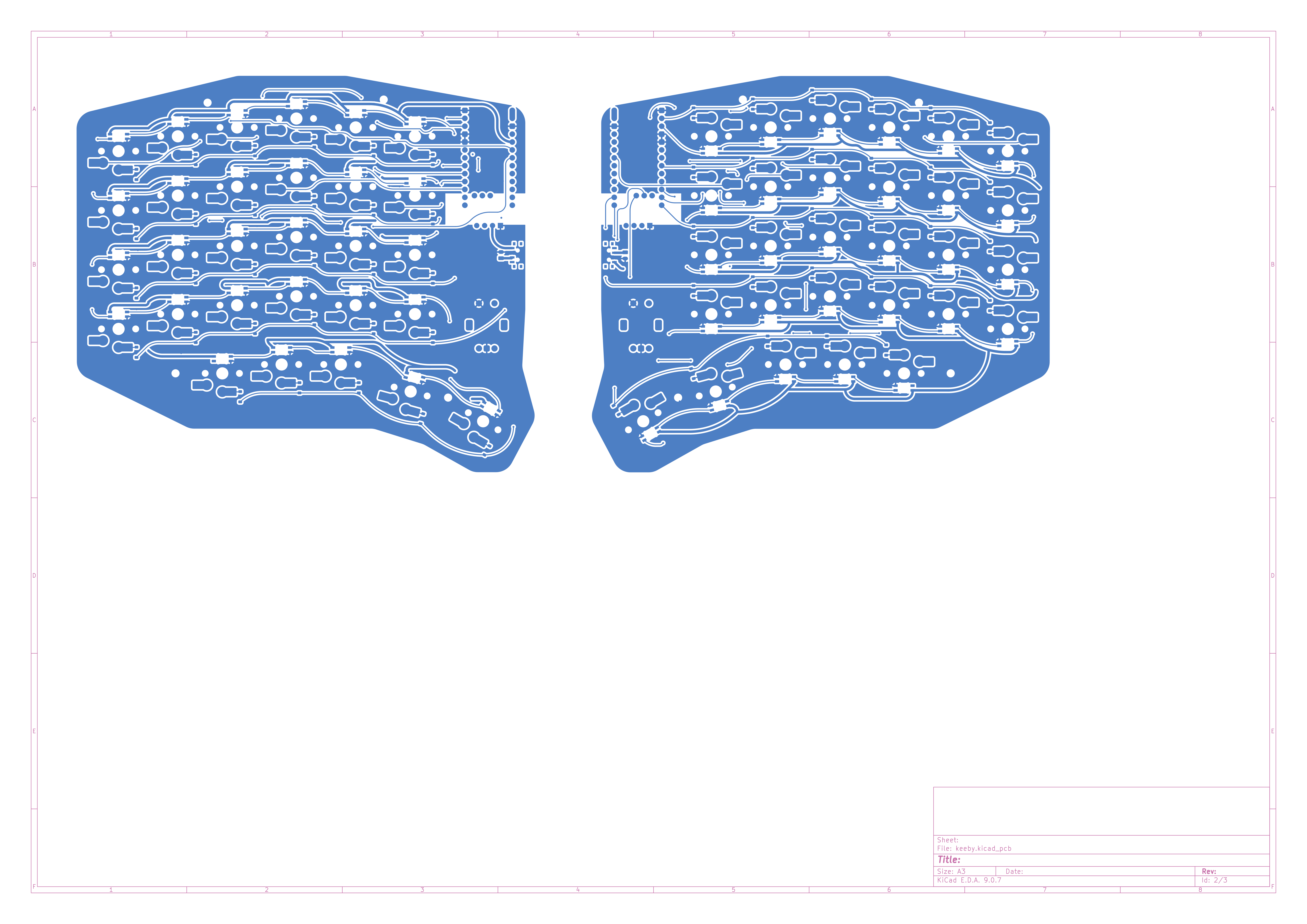

Keeby, from the project README
From the project README

Keeby bill of materials (BOM)

244 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
CONN_01X04_PIN
Conn_01x04_Pin
J1, J2
2
JST_PH
J3, J4
2
RotaryEncoder_Switch
S59, S60
2
S_SPDT
S61, S62
58
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +50
58
D
D1, D2, D3, D4, D5, D6, D7, D8 +50
58
SK6812-MINI-E
L1, L2, L3, L4, L5, L6, L7, L8 +50
58
C_SMALL_0.1UF
C_Small_0.1uF
C1, C2, C3, C4, C5, C6, C7, C8 +50
2
C_Polarized_Small
C59, C60
2
R_470Ω
R1, R2

Keeby design files

The KiCad project lives in the codecooker1/keeby repository on GitHub; these links point at the commit this page was built from.

Keeby: common questions

How big is the Keeby PCB?

The Keeby measures 147.6 × 127.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keeby?

244 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Keeby design files?

From the codecooker1/keeby repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Keeby design in my own project?

Yes, under the terms of its GPL-3.0 license, which codecooker1 chose for the repository.
