Kbd cherry

codepainters·e800j·kbd_cherry/kbd_cherry.kicad_pcb

Kbd cherry PCB layout, top view — open source board by codepainters
Simulate this board

About the Kbd cherry PCB

Kbd cherry is an open source PCB design by codepainters, published on GitHub. It is a 2-layer board measuring 398.1 × 116 mm, with 79 components from 77 distinct parts.

By type, the board carries 76 switches and 1 diode.

It belongs with the keyboards designs in this gallery.

From the project

Elwro 800 Junior replica

this PCB is not a replacement for the original keyboard PCB. The intention here was to create a keyboard for the replica, and not for restoration work. Original switches are nearly impossible to find, so there is little point in replicating the original board anyway. that said, the 10-pin connectors match the original pinout, so this PCB can be connected to the original PCB, for example for testing purposes.

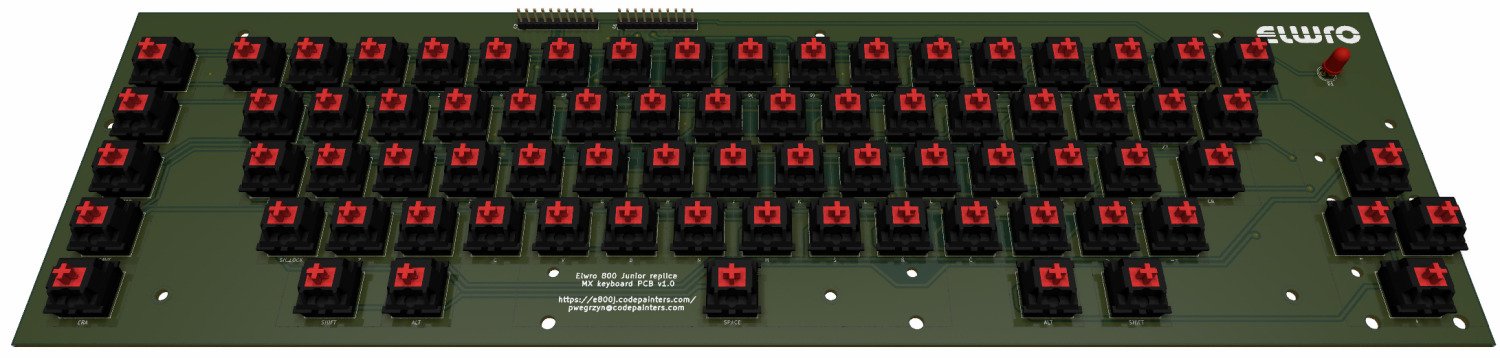

Kbd cherry, from the project README
From the project README

Kbd cherry bill of materials (BOM)

79 components, 77 distinct parts.

QtyPartRefs
2
Conn_01x10_Socket
G1, G2
1
^-
SW1
1
CTRL
SW2
1
B
SW3
1
N
SW4
1
M
SW5
2
ALT
SW6, SW71
1
SPACE
SW7
1
SH_LOCK
SW8
1
TAB
SW9
1
H
SW10
1
J
SW11
1
K
SW12
1
L
SW13
1
CR
SW14
1
BS
SW15
1
ESC
SW16
1
Y
SW17
1
U
SW18
1
I
SW19
Show 57 more
QtyPartRefs
1
O
SW20
1
P
SW21
1
]}
SW22
1
DEL
SW23
1
6&
SW24
1
7'
SW25
1
8(
SW26
1
9)
SW27
1
0-
SW28
1
@\
SW29
1
/?
SW30
1
5%
SW31
1
4$
SW32
1
3#
SW33
1
2"
SW34
1
1!
SW35
1
,<
SW36
1
.>
SW37
1
T
SW38
1
R
SW39
1
E
SW40
1
W
SW41
1
Q
SW42
1
[{
SW43
1
-=
SW44
1
G
SW45
1
F
SW46
1
D
SW47
1
S
SW48
1
A
SW49
1
;+
SW50
1
:*
SW51
1
V
SW52
1
C
SW53
1
X
SW54
1
Z
SW55
1
SHIFT
SW56
1
Ą
SW57
1
Ń
SW58
1
Ź
SW59
1
Ł
SW60
1
Ś
SW61
1
Ó
SW62
1
Ę
SW63
1
Ż
SW64
1
Ć
SW65
1
←
SW66
1
→
SW67
1
↑
SW68
1
↓
SW69
1
DIR
SW70
1
LOAD
SW72
1
DOS
SW73
1
ERA
SW74
1
SAVE
SW75
1
SHIFT
SW76
1
LED
D1

Kbd cherry design files

The KiCad project lives in the codepainters/e800j repository on GitHub; these links point at the commit this page was built from.

Kbd cherry: common questions

How big is the Kbd cherry PCB?

The Kbd cherry measures 398.1 × 116 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kbd cherry?

79 components, from 77 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kbd cherry design files?

From the codepainters/e800j repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kbd cherry design in my own project?

The repository has no license, so all rights stay with codepainters. Use it as a reference, and ask the author before reusing the design.
