Stm32-lqfp64-test board

cpey·stm32-lqfp64-test-board·stm32_lqfp64_test_board/stm32_lqfp64_test_board.kicad_pcb

Stm32-lqfp64-test board layout, top view — open source STM32 board by cpey

About the Stm32-lqfp64-test board

Stm32-lqfp64-test board is an open source STM32 PCB design by cpey, published on GitHub under the MIT license. It is a 2-layer board measuring 61.2 × 47.5 mm, with 39 components from 20 distinct parts.

Its main chip is the STM32F302R8Tx, from the STM32 family. By type, the board carries 14 resistors, 11 capacitors, 7 connectors, 2 transistors, 2 crystals and 1 IC.

It belongs with the usb & debug tools designs in this gallery.

From the project

Test board for STM32 LQFP64 package

A test board designed for STM32 microcontrollers in LQFP64 package. It is intended for use with the STM32F3 and STM32F0 64-pin MCUs, which are mostly pin-to-pin compatbile. The board is programmable via JTAG and SWD using the STLINK-V3MINIE programmer.

Check out the schematic and the MCU pin configuration for more details.

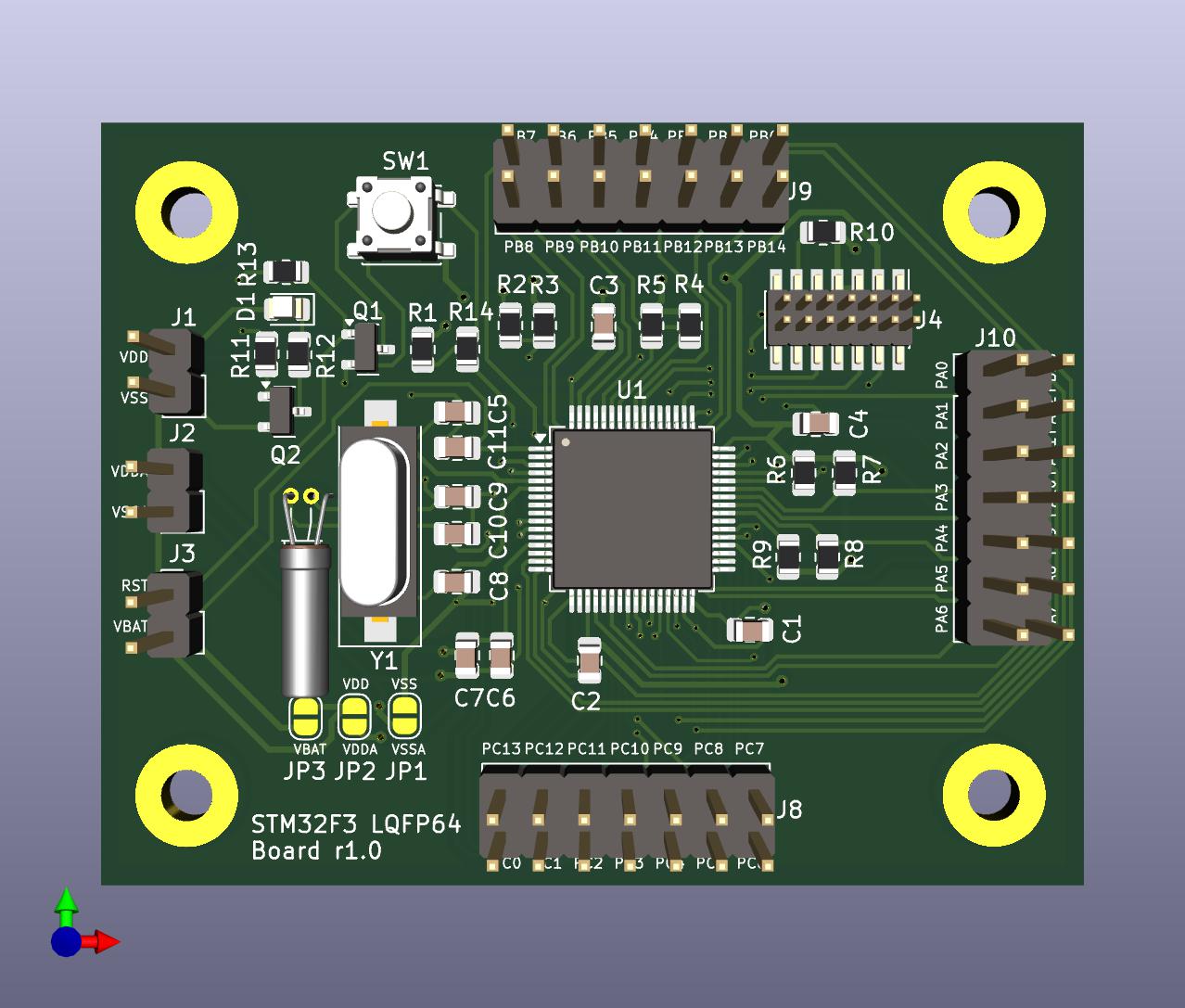

Stm32-lqfp64-test board, from the project README
From the project README

Main components on the Stm32-lqfp64-test board

STM32F302R8Tx

Stm32-lqfp64-test board bill of materials (BOM)

39 components, 20 distinct parts.

QtyPartRefs
1
STM32F302R8Tx
U1
1
AO3400A
Q1
1
BC817
Q2
1
8MHz
Y1
1
32.768KHz
Y2
3
Conn_01x02
J1, J2, J3
1
Conn_02x07_Odd_Even
J4
3
Conn_02x07_Odd_Even
J8, J9, J10
1
SW_MEC_5E
SW1
1
LED
D1
6
0.1uF
C1, C2, C3, C4, C6, C11
2
30pF
C5, C8
1
1uF
C7
2
1pF
C9, C10
2
49K9
R1, R13
8
10K
R2, R3, R4, R5, R6, R7, R8, R9
1
100
R10
1
2K1
R11
1
64.9
R12
1
2K0
R14

Stm32-lqfp64-test board design files

The KiCad project lives in the cpey/stm32-lqfp64-test-board repository on GitHub; these links point at the commit this page was built from.

Stm32-lqfp64-test board: common questions

What microcontroller does the Stm32-lqfp64-test board use?

The Stm32-lqfp64-test board is built around the STM32F302R8Tx, from the STM32 family.

How big is the Stm32-lqfp64-test board?

The Stm32-lqfp64-test board measures 61.2 × 47.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32-lqfp64-test board?

39 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm32-lqfp64-test board design files?

From the cpey/stm32-lqfp64-test-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stm32-lqfp64-test board design in my own project?

Yes, under the terms of its MIT license, which cpey chose for the repository.

Can I test firmware for the Stm32-lqfp64-test board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
