About the ${title} PCB

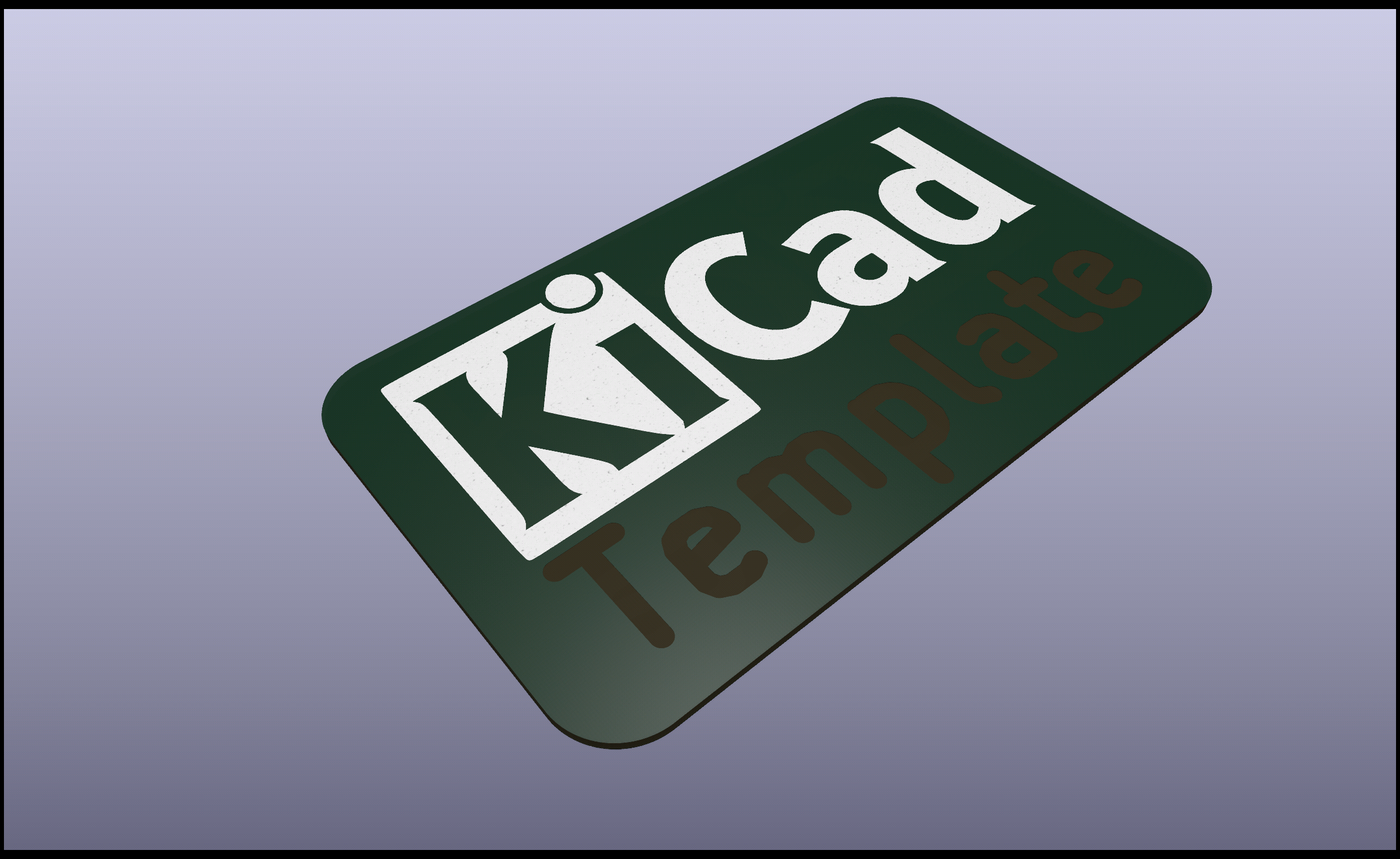

${title} is an open source PCB design by cyber-murmel, published on GitHub under the MIT license. It is a 2-layer board measuring 120 × 70 mm, with 0 components from 0 distinct parts.
From the project
KiCad project template with document export automation
For KiCad Version: 8.99.0-77eaa75db1, release build
Browse the files on KiCanvas - by Stargirl Flowers
Click [](https://github.com/cyber-murmel/kicad-template/generate) to create a new repository and clone it to your machine.
Afterwards commit the changes to your template.
The template makes use of Text Variables. You can edit these in the Schematic or PCB Editor. Go to File > Schematic Setup > Project > Text Variables or File > Board Setup > Text & Graphics > Text Variables respectively. In there you can change properties like project ID, revision, author and company name. These then…
${title} design files
The KiCad project lives in the cyber-murmel/kicad-template repository on GitHub; these links point at the commit this page was built from.
${title}: common questions
How big is the ${title} PCB?
The ${title} measures 120 × 70 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ${title}?
0 components, from 0 distinct parts. The full bill of materials is listed on this page.
Where can I download the ${title} design files?
From the cyber-murmel/kicad-template repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the ${title} design in my own project?
Yes, under the terms of its MIT license, which cyber-murmel chose for the repository.
