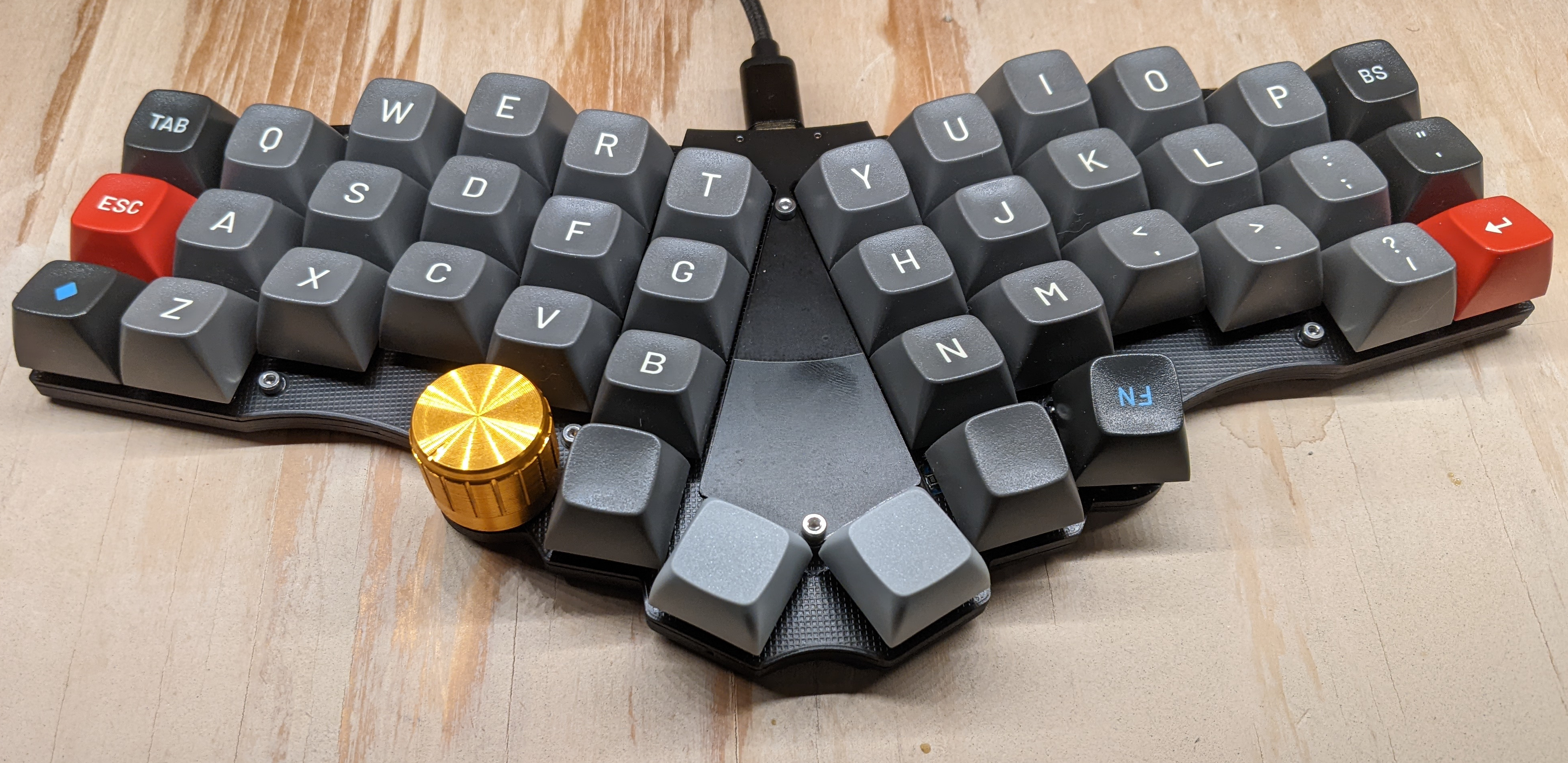

7teen
About the 7teen PCB
7teen is an open source PCB design by cyril279, published on GitHub under the MIT license. It is a 2-layer board measuring 95.3 × 76.2 mm, with 35 components from 5 distinct parts.
Other key parts include the SeeeduinoXIAO-keebMCU.
It belongs with the keyboards designs in this gallery.
Main components on the 7teen
7teen bill of materials (BOM)
35 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SeeeduinoXIAO-keebMCU | Seeeduino_XIAO_dual_tht | U0 |
| 17 | D_Small | D_MiniMELF_bsides | D_A0, D_A1, D_A2, D_A3, D_B0, D_B1, D_B2, D_B3 +9 |
| 15 | SW_Push | pg1353_dual | SwA0, SwA1, SwA2, SwA3, SwB0, SwB1, SwB2, SwB3 +7 |
| 1 | Rotary_Encoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SwC4 |
| 1 | SW_Push | pg1353_reversible_2u | SwD3 |
7teen design files
The KiCad project lives in the cyril279/keyboards repository on GitHub; these links point at the commit this page was built from.
7teen: common questions
How big is the 7teen PCB?
The 7teen measures 95.3 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 7teen?
35 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 7teen design files?
From the cyril279/keyboards repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 7teen design in my own project?
Yes, under the terms of its MIT license, which cyril279 chose for the repository.
