PiRF
About the PiRF PCB
PiRF is an open source PCB design by danchouzhou, published on GitHub. It is a 2-layer board measuring 25 × 12.2 mm, with 4 components from 4 distinct parts.
Other key parts include the Ai-Thinker NF-03. By type, the board carries 1 IC, 1 connector, 1 diode and 1 resistor.

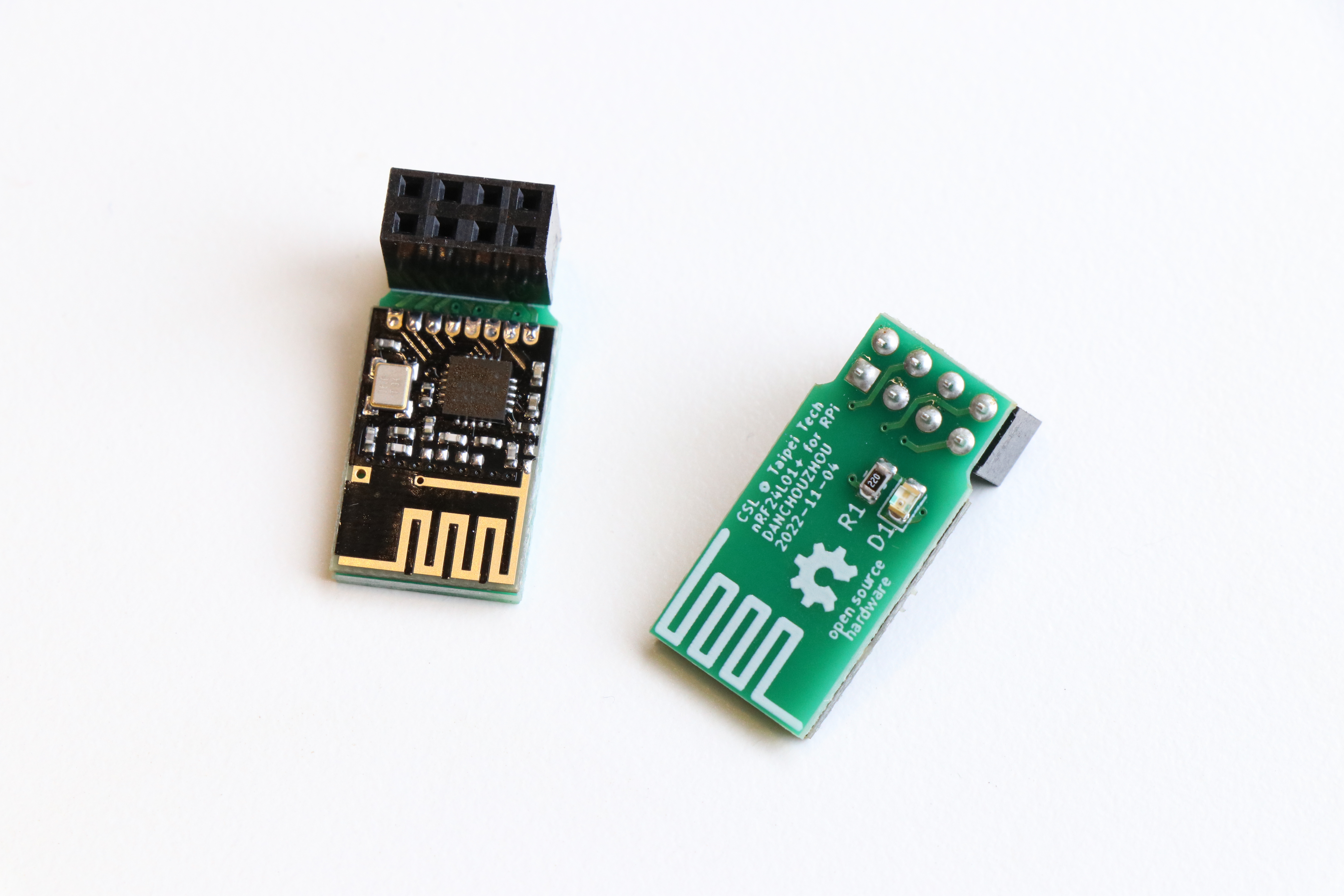

From the project
Gain 2.4G for your raspberry pi
Main components on the PiRF
PiRF bill of materials (BOM)
4 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Ai-Thinker NF-03 | Ai-Thinker-NF-03 | U1 |
| 1 | Conn_02x04_Odd_Even | PinSocket_2x04_P2.54mm_Vertical | J1 |
| 1 | LTST-C170KFKT | LED_0805_2012Metric | D1 |
| 1 | 22R | R_0805_2012Metric | R1 |
PiRF design files
The KiCad project lives in the danchouzhou/PiRF repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/remote-rpi.kicad_pcb
- Schematickicad/remote-rpi.kicad_sch
PiRF: common questions
How big is the PiRF PCB?
The PiRF measures 25 × 12.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PiRF?
4 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the PiRF design files?
From the danchouzhou/PiRF repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PiRF design in my own project?
The repository has no license, so all rights stay with danchouzhou. Use it as a reference, and ask the author before reusing the design.
