OctoPrint-ShutdownButtonLEDBuzzer
About the OctoPrint-ShutdownButtonLEDBuzzer PCB
OctoPrint-ShutdownButtonLEDBuzzer is an open source PCB design by danieleborgo, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 17.8 × 35.6 mm, with 6 components from 6 distinct parts.
By type, the board carries 2 connectors, 1 buzzer, 1 switch, 1 diode and 1 resistor.
From the project

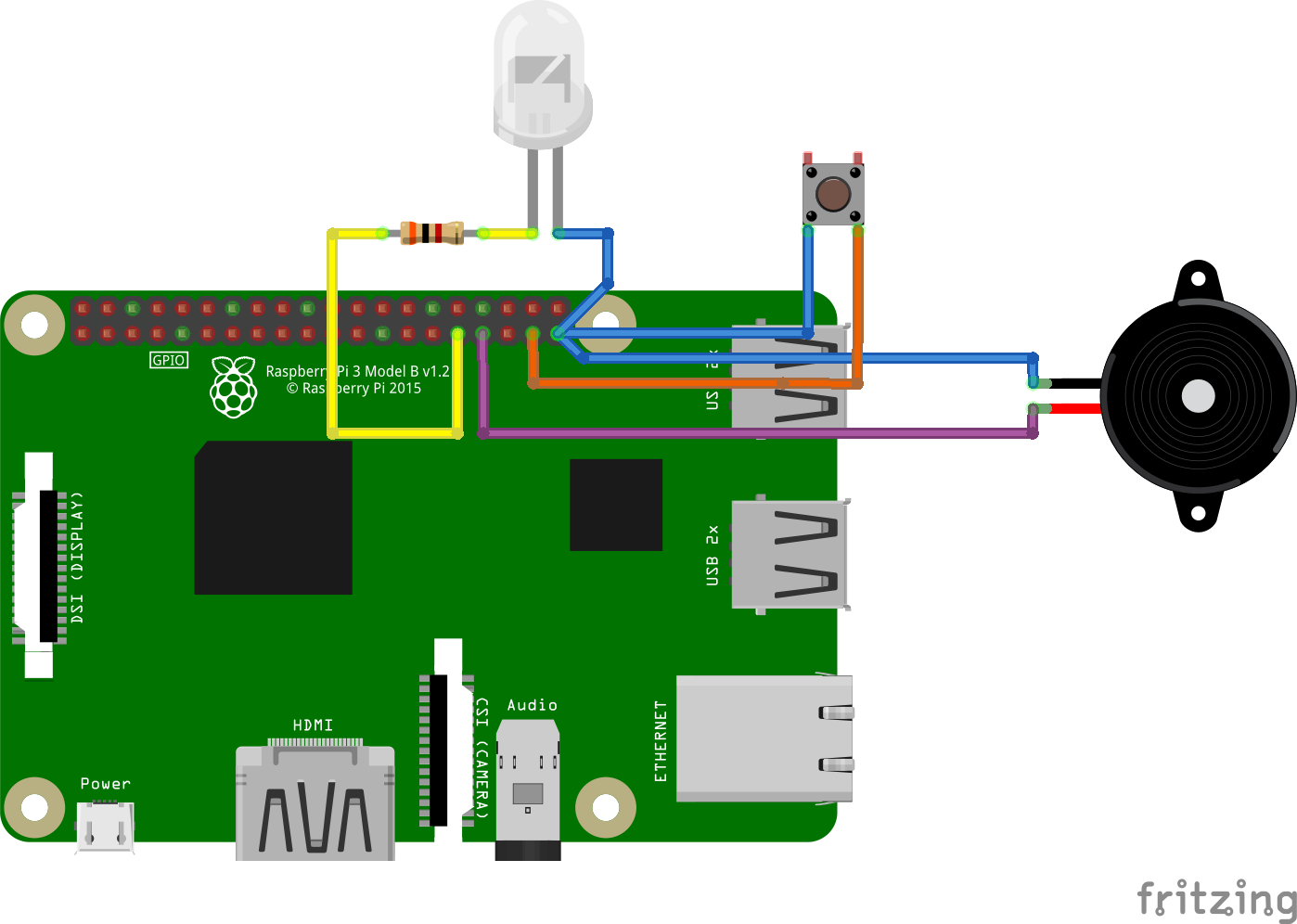

This OctoPrint plugin implements a shutdown physical button for the Rasperry Pi, with a buzzer and a status LED.
This OctoPrint plugin implements a shutdown physical button for the Raspberry Pi. It offers also a status LED to know when OctoPrint is ready and a buzzer to signal the startup and the shutdown. Remember that these signals may vary of few seconds.
By default, this plugin shuts down the Raspberry without checking of there are ongoing jobs. In settings, there is a flag to disable the button when printing.
OctoPrint-ShutdownButtonLEDBuzzer bill of materials (BOM)
6 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Jumper | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | Buzzer | Buzzer_12x9.5RM7.6 | BZ1 |
| 1 | SW | SW_Tactile_Straight_KSA0Axx1LFTR | SW1 |
| 1 | LED | LED_D5.0mm | D1 |
| 1 | 10 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
OctoPrint-ShutdownButtonLEDBuzzer design files
The KiCad project lives in the danieleborgo/OctoPrint-ShutdownButtonLEDBuzzer repository on GitHub; these links point at the commit this page was built from.
OctoPrint-ShutdownButtonLEDBuzzer: common questions
How big is the OctoPrint-ShutdownButtonLEDBuzzer PCB?
The OctoPrint-ShutdownButtonLEDBuzzer measures 17.8 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the OctoPrint-ShutdownButtonLEDBuzzer?
6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OctoPrint-ShutdownButtonLEDBuzzer design files?
From the danieleborgo/OctoPrint-ShutdownButtonLEDBuzzer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OctoPrint-ShutdownButtonLEDBuzzer design in my own project?
Yes, under the terms of its GPL-3.0 license, which danieleborgo chose for the repository.
