Ios macropad

daprice·ios-macropad·PCB/imacro.kicad_pcb

Ios macropad PCB layout, top view — open source board by daprice
Simulate this board

About the Ios macropad PCB

Ios macropad is an open source PCB design by daprice, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 57.2 × 83.3 mm, with 28 components from 6 distinct parts.

Other key parts include the Feather32u4Bluefruit. By type, the board carries 13 switches, 13 diodes, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

(WIP) a tiny iOS-oriented keypad using low profile mechanical keyboard switches

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

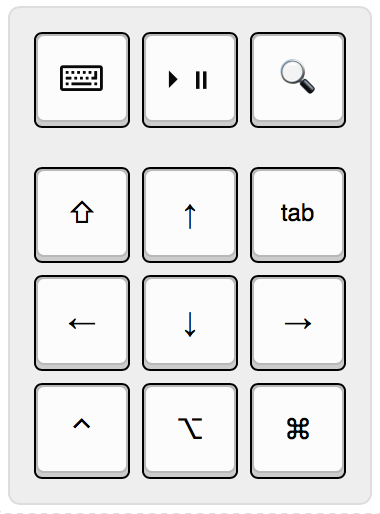

Ios macropad, from the project README
From the project README

Main components on the Ios macropad

Feather32u4Bluefruit

Ios macropad bill of materials (BOM)

28 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Feather32u4Bluefruit
U1
1
QI_Receiver
QI1
12
Choc
SW0:0, SW0:1, SW0:2, SW1:0, SW1:1, SW1:2, SW2:0, SW2:1 +4
1
TOGGLE
SW1
12
1N4148
D0:0, D0:1, D0:2, D1:0, D1:1, D1:2, D2:0, D2:1 +4
1
MBR120
D1

Ios macropad design files

The KiCad project lives in the daprice/ios-macropad repository on GitHub; these links point at the commit this page was built from.

Ios macropad: common questions

How big is the Ios macropad PCB?

The Ios macropad measures 57.2 × 83.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ios macropad?

28 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ios macropad design files?

From the daprice/ios-macropad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Ios macropad design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which daprice chose for the repository.
