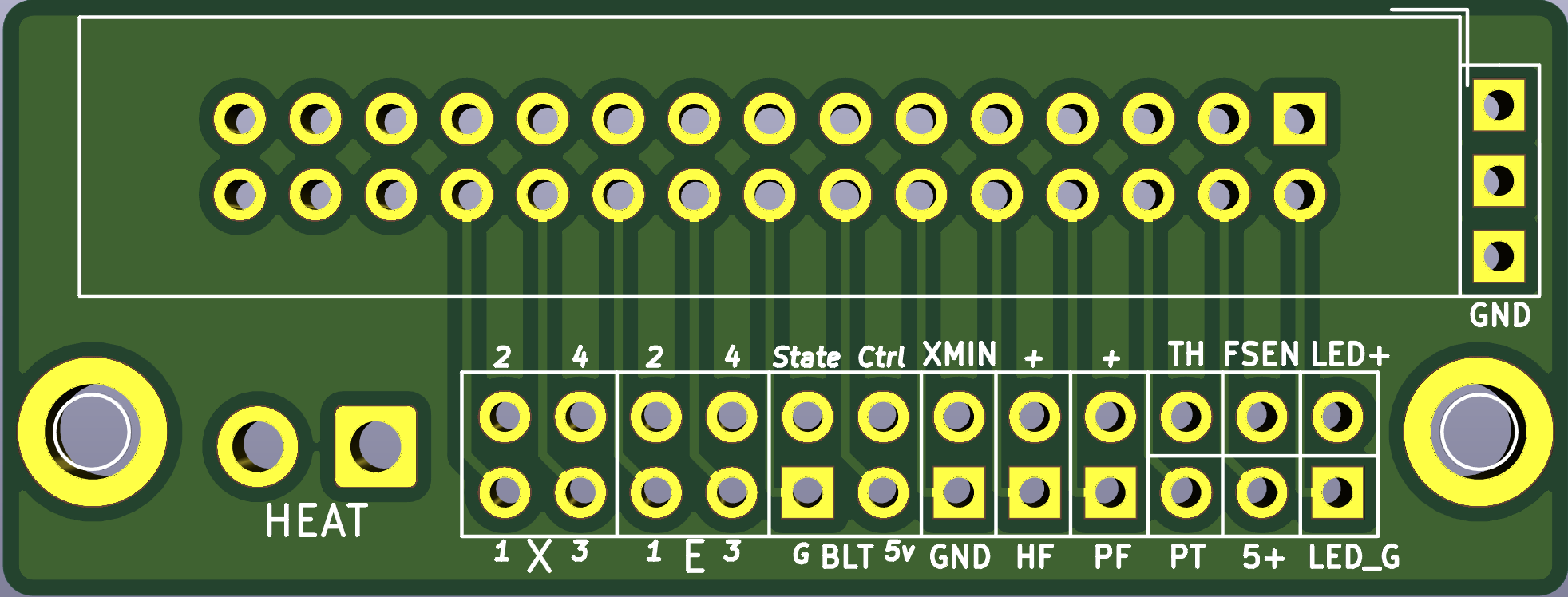

RibbonCable MB BreakdownBoard pt
About the RibbonCable MB BreakdownBoard pt PCB
RibbonCable MB BreakdownBoard pt is an open source PCB design by darknode, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 52.5 × 20 mm, with 3 components from 3 distinct parts.
From the project
Hardware modifications for CR-10S Pro 3D printer
RibbonCable MB BreakdownBoard pt bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | CONN_GND1 |
| 1 | Conn_01x24 | PinHeader_2x12_P2.54mm_Vertical | PIN_HEADER1 |
| 1 | Ribbon30 | IDC-Header_2x15_P2.54mm_Vertical | Ribbon1 |
RibbonCable MB BreakdownBoard pt design files
The KiCad project lives in the darknode/cr-10s-pro-mods repository on GitHub; these links point at the commit this page was built from.
RibbonCable MB BreakdownBoard pt: common questions
How big is the RibbonCable MB BreakdownBoard pt PCB?
The RibbonCable MB BreakdownBoard pt measures 52.5 × 20 mm, has 2 copper layers and is 1.5 mm thick.
How many components are on the RibbonCable MB BreakdownBoard pt?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the RibbonCable MB BreakdownBoard pt design files?
From the darknode/cr-10s-pro-mods repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the RibbonCable MB BreakdownBoard pt design in my own project?
Yes, under the terms of its TAPR-OHL-1.0 license, which darknode chose for the repository.
