KOSMOS LFO6 Jack Panel
About the KOSMOS LFO6 Jack Panel PCB
KOSMOS LFO6 Jack Panel is an open source PCB design by DavesKosmoModules, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 96 × 69.1 mm, with 10 components from 2 distinct parts.
From the project

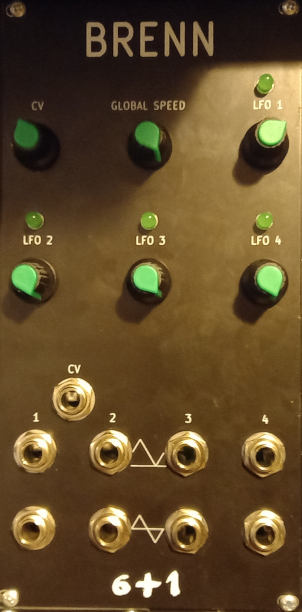

- 4 Lfo's - Each has a cycle duration between a few seconds and a few minutes, approx 6 sec 12 minutes - Each LFO has it's own speed control - A single global speed control - CV control for the global speed (not 1V/Oct) - Each LFO has both unipolar and bipolar outputs
- 4 Lfo's - Each has a cycle duration between a few seconds and a few minutes, approx 6 sec 12 minutes - Each LFO has it's own speed control - A single global speed control - CV control for the global speed (not 1V/Oct) - Each LFO has both unipolar and bipolar outputs
I have been using the lfo for slow evolving movement of sounds, it is not a replacement for a standard lfo, normal tremolo and vibrato can not be realized with this module.
KOSMOS LFO6 Jack Panel bill of materials (BOM)
10 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x12_Female | PinHeader_1x12_P2.54mm_Vertical | J1 |
| 9 | AudioJack2 | Jack_6.35mm_PJ_629HAN | J2, J3, J4, J5, J6, J7, J8, J9 +1 |
