Function Generator Jacks
About the Function Generator Jacks PCB
Function Generator Jacks is an open source PCB design by DavesKosmoModules, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 96 × 61.7 mm, with 9 components from 2 distinct parts.
From the project

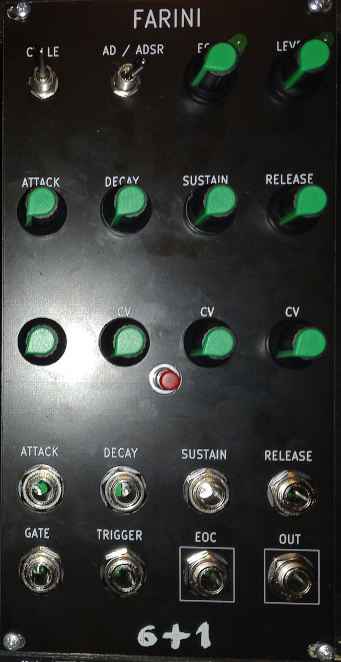

- Envelope generator switchable between ADSR & AD - Loopable - End Of Cycle output - Output can be inverted for ducking
- Envelope generator switchable between ADSR & AD - Loopable - End Of Cycle output - Output can be inverted for ducking
- When in AD mode use the trigger input - When in ADSR mode, use the gate input to start envelope, the trigger input will retigger the attach phase - When in cycle mode use no inputs
Contained are schematics & gerber files for pcb fabrication of both electrical and front panel. This is sutiable for entry level however a basic level of electronics, soldering, fault finding, and some basic tools are required.
Function Generator Jacks bill of materials (BOM)
9 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | AudioJack2_SwitchT | Jack_6.35mm_PJ_629HAN | J1, J2, J4, J5, J6, J7, J8, J9 |
| 1 | Conn_01x10_Female | PinSocket_1x10_P2.54mm_Vertical | J3 |
Function Generator Jacks design files
The KiCad project lives in the DavesKosmoModules/Farini-VC-ADSR repository on GitHub; these links point at the commit this page was built from.
Function Generator Jacks: common questions
How big is the Function Generator Jacks PCB?
The Function Generator Jacks measures 96 × 61.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Function Generator Jacks?
9 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Function Generator Jacks design files?
From the DavesKosmoModules/Farini-VC-ADSR repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Function Generator Jacks design in my own project?
Yes, under the terms of its CC0-1.0 license, which DavesKosmoModules chose for the repository.
