Constant current driver LM3404

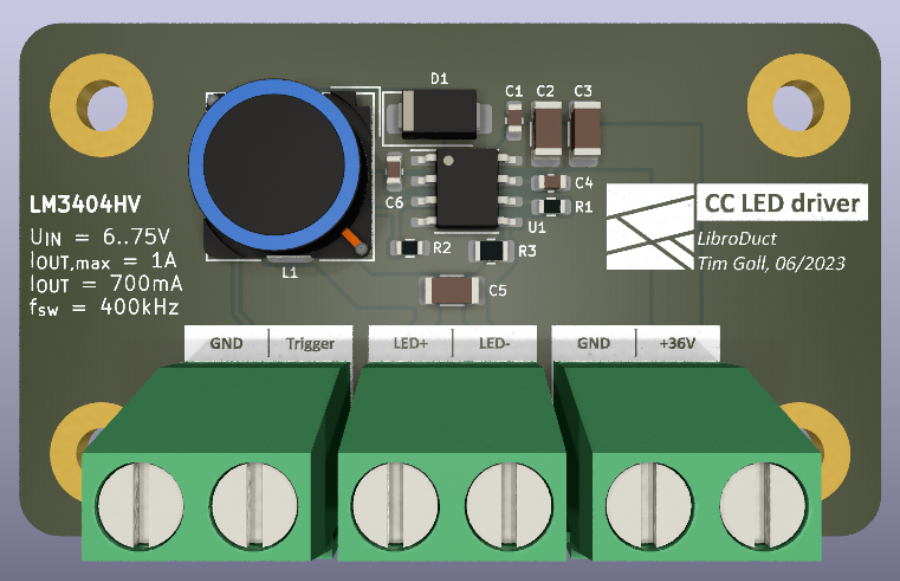

About the Constant current driver LM3404 PCB
Constant current driver LM3404 is an open source PCB design by DIaLOGIKa-GmbH, published on GitHub under the MIT license. It is a 2-layer board measuring 53.3 × 31.8 mm, with 15 components from 11 distinct parts.
Other key parts include the LM3404HVMA. By type, the board carries 6 capacitors, 3 connectors, 3 resistors, 1 IC, 1 diode and 1 inductor.
From the project
Testing PCBs for different constant current driver ICs
This project is part of LibroDuct. We decided to publish some results of our LED driver designs to support the opensource maker scene. Feel free to use those results in your designs.
All those designs were tested with 9 IR-LEDs in series. These had a forward voltage of 14.0V.
The LM3404 and LM3404HV devices are monolithic switching regulators designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, these devices contain a high-side N-channel MOSFET switch with a current limit of 1.5A (typical) for step-down (Buck)…
Main components on the Constant current driver LM3404
Constant current driver LM3404 bill of materials (BOM)
15 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM3404HVMA | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 3 | Conn_01x02 | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J1, J2, J3 |
| 1 | SS34 | D_SMA | D1 |
| 1 | 74u 1.4A 120mR | L_TDK_SLF10145 | L1 |
| 2 | 100n | C_0603_1608Metric | C1, C4 |
| 2 | 2u2 | C_1206_3216Metric | C2, C3 |
| 1 | 1u | C_1206_3216Metric | C5 |
| 1 | 10n | C_0603_1608Metric | C6 |
| 1 | 130k | R_0603_1608Metric | R1 |
| 1 | 10k | R_0603_1608Metric | R2 |
| 1 | 0R33 | R_0805_2012Metric | R3 |
