Rv3032
About the Rv3032 PCB
Rv3032 is an open source PCB design by dizcza, published on GitHub. It is a 2-layer board measuring 14 × 16 mm, with 5 components from 4 distinct parts.
Other key parts include the RV-3032. By type, the board carries 3 capacitors, 1 IC and 1 resistor.
From the project
RV-3032 Kicad PCB Replacement of DS3231

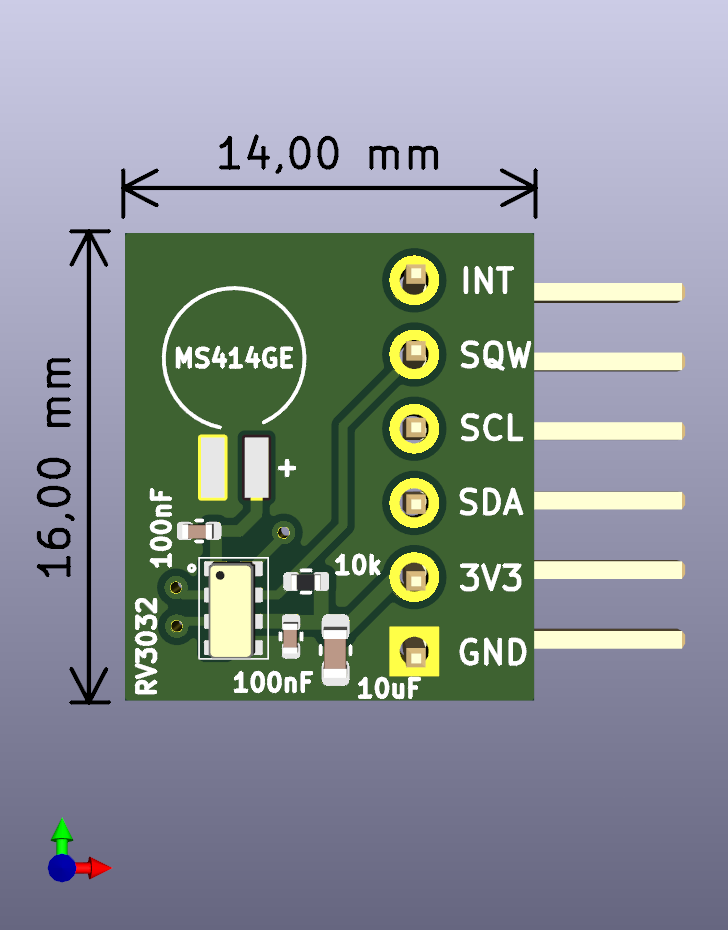

A replacement of the DS3231 with the same board pinout:
Main components on the Rv3032
Rv3032 bill of materials (BOM)
5 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RV-3032 | RV-3032 | U1 |
| 1 | 10uF | C_0603_1608Metric | C1 |
| 2 | 100nF | C_0402_1005Metric | C2, C3 |
| 1 | 10k | R_0402_1005Metric | R1 |
Rv3032 design files
The KiCad project lives in the dizcza/rv3032-kicad repository on GitHub; these links point at the commit this page was built from.
- Layoutrv3032_board.kicad_pcb
- Schematicrv3032_board.kicad_sch
Rv3032: common questions
How big is the Rv3032 PCB?
The Rv3032 measures 14 × 16 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rv3032?
5 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rv3032 design files?
From the dizcza/rv3032-kicad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rv3032 design in my own project?
The repository has no license, so all rights stay with dizcza. Use it as a reference, and ask the author before reusing the design.
