BrodBoost-C2-rebuild

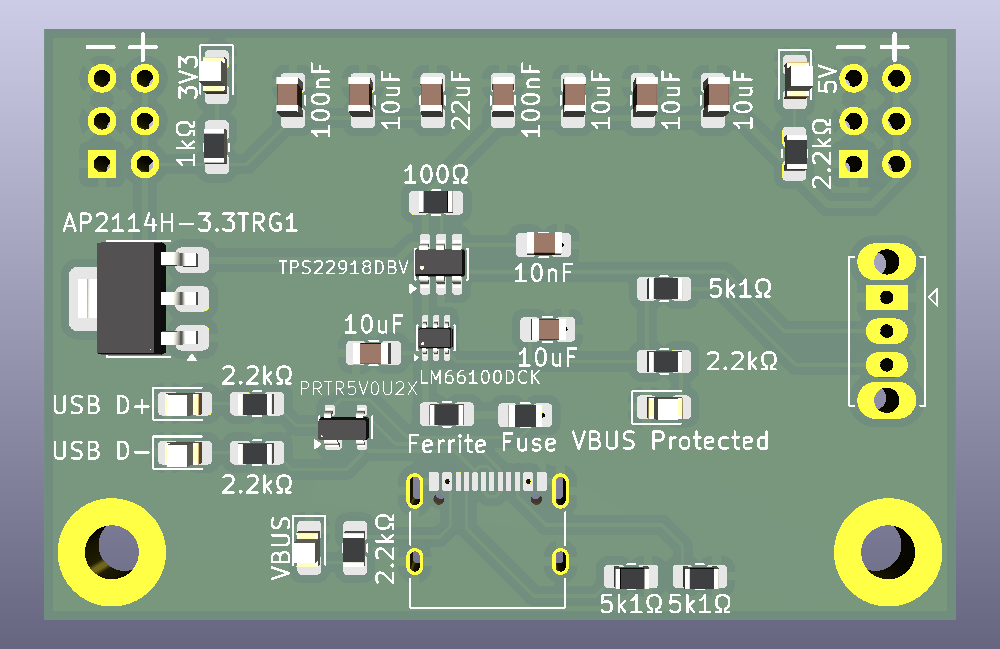

About the BrodBoost-C2-rebuild PCB
BrodBoost-C2-rebuild is an open source PCB design by domesticmouse, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 54 × 35 mm, with 36 components from 24 distinct parts.
Other key parts include the LM66100DCK, TPS22918DBV and AP2114H-3.3TRG1. By type, the board carries 10 capacitors, 10 resistors, 7 diodes, 3 ICs, 3 connectors and 1 fuse.
From the project
This is a rebuild of Axiometa's BrodBoost C2.
Main components on the BrodBoost-C2-rebuild
BrodBoost-C2-rebuild bill of materials (BOM)
36 components, 24 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM66100DCK | SOT-363_SC-70-6 | U1 |
| 1 | TPS22918DBV | SOT-23-6 | U2 |
| 1 | AP2114H-3.3TRG1 | SOT-223-3_TabPin2 | U3 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_XKB_U262-16XN-4BVC11 | J1 |
| 1 | 5v Power Rail | PinHeader_2x03_P2.54mm_Vertical | J2 |
| 1 | 3V3 Power Rail | PinHeader_2x03_P2.54mm_Vertical | J3 |
| 1 | C22363531 Fuse | Fuse_0805_2012Metric_Pad1.15x1.40mm_HandSolder | F1 |
| 1 | C2939725 SW_SPDT | SW_Slide_SPDT_Straight_CK_OS102011MS2Q | SW1 |
| 1 | PRTR5V0U2X | SOT-143 | D1 |
| 1 | C84256 5V | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2 |
| 1 | 3V3 | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D3 |
| 1 | C84256 USB D- | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D4 |
| 1 | C84256 USB D+ | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D5 |
| 1 | C84256 VBUS | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D6 |
| 1 | C84256 VBUS Protected | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D7 |
| 1 | Ferrite | FerriteBead_0805_2012Metric_Pad1.20x1.40mm_HandSolder | FB1 |
| 6 | 10UF 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C6, C9, C10 |
| 1 | 10NF 10nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4 |
| 2 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C7 |
| 1 | 22UF 22uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C8 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 5k1Ω | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R4 |
| 1 | 100Ω | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 5 | 2.2kΩ | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R7, R8, R9, R10 |
| 1 | 1kΩ | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6 |
BrodBoost-C2-rebuild design files
The KiCad project lives in the domesticmouse/BrodBoost-C2-rebuild repository on GitHub; these links point at the commit this page was built from.
BrodBoost-C2-rebuild: common questions
How big is the BrodBoost-C2-rebuild PCB?
The BrodBoost-C2-rebuild measures 54 × 35 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BrodBoost-C2-rebuild?
36 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BrodBoost-C2-rebuild design files?
From the domesticmouse/BrodBoost-C2-rebuild repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BrodBoost-C2-rebuild design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which domesticmouse chose for the repository.
