Pangaea top main

e3w2q·Pangaea-keyboard·design/pangaea_origin/pangaea-top-main.kicad_pcb

Pangaea top main PCB layout, top view — open source board by e3w2q
Simulate this board

About the Pangaea top main PCB

Pangaea top main is an open source PCB design by e3w2q, published on GitHub under the MIT license. It is a 2-layer board measuring 114.3 × 80.2 mm, with 21 components from 3 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

Parts adjustable keyboard.

“Further, we have to be prepared always for the possibility that each new discovery, no matter what science furnishes it, may modify the conclusions we draw.”

Alfred Wegener, The Origins of Continents and Oceans

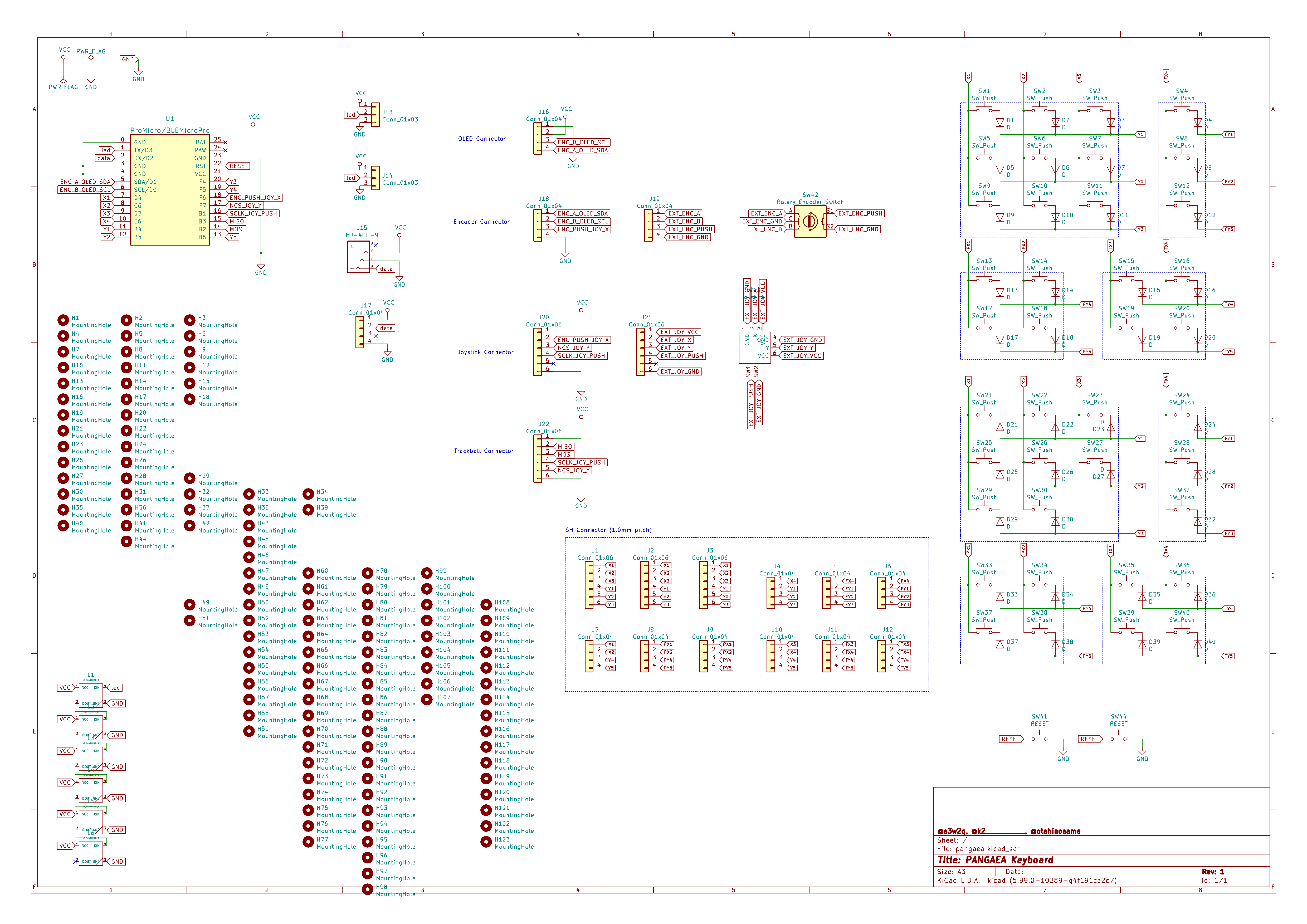

Pangaea top main, from the project README
From the project README

Pangaea top main bill of materials (BOM)

21 components, 3 distinct parts.

QtyPartRefs
4
MountingHole
H3, H4, H5, H6
1
MountingHole
H93
16
SW_Push
SW3, SW4, SW5, SW6, SW9, SW10, SW11, SW12 +8

Pangaea top main design files

The KiCad project lives in the e3w2q/Pangaea-keyboard repository on GitHub; these links point at the commit this page was built from.

Pangaea top main: common questions

How big is the Pangaea top main PCB?

The Pangaea top main measures 114.3 × 80.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pangaea top main?

21 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pangaea top main design files?

From the e3w2q/Pangaea-keyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Pangaea top main design in my own project?

Yes, under the terms of its MIT license, which e3w2q chose for the repository.
