Sensorstrip power-42-square

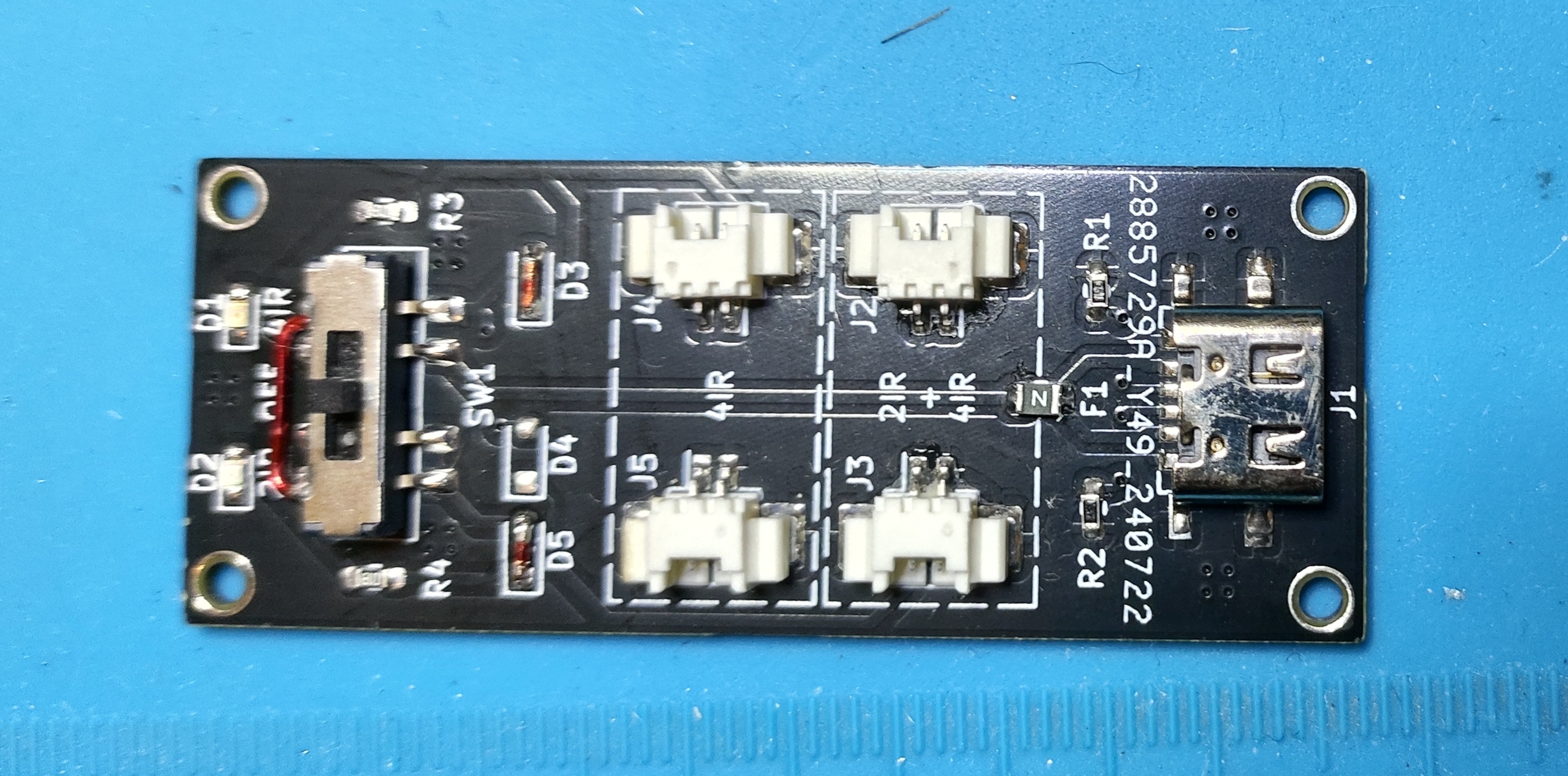

About the Sensorstrip power-42-square PCB
Sensorstrip power-42-square is an open source PCB design by eatnooM, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 50 × 22 mm, with 13 components from 7 distinct parts.
By type, the board carries 5 connectors, 4 resistors, 2 diodes, 1 fuse and 1 switch.
From the project
USB-C powered, slim IR emitter for use with Wii / light guns
This board is only useful if you use 4IR light guns supporting a square LED layout (effectively, top + bottom sensor bars). At present, this is only true of the OpenFIRE project
A board that will take 5V from its USB-C board with 3 power states:
- Off - 2IR (for Wii or 2IR-based light guns) - 4IR (for light guns supporting square layouts)
These boards are ideal if you use one display for both Wii gameplay and light gun games.
Sensorstrip power-42-square bill of materials (BOM)
13 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle_PowerOnly | DEALON USB Type-C 6Pin | J1 |
| 4 | Conn_01x02_MountingPin | Molex_Picoblade_53261-0271-Hybrid | J2, J3, J4, J5 |
| 1 | Polyfuse | Fuse_0805_2012Metric_Pad1.15x1.40mm_HandSolder | F1 |
| 1 | SW_DP3T | K3-2336S-F1 | SW1 |
| 2 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D2 |
| 2 | 5.1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
| 2 | 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R4 |
Sensorstrip power-42-square design files
The KiCad project lives in the eatnooM/sensorstrip repository on GitHub; these links point at the commit this page was built from.
Sensorstrip power-42-square: common questions
How big is the Sensorstrip power-42-square PCB?
The Sensorstrip power-42-square measures 50 × 22 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sensorstrip power-42-square?
13 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sensorstrip power-42-square design files?
From the eatnooM/sensorstrip repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Sensorstrip power-42-square design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which eatnooM chose for the repository.
