Sensorstrip power emitter
About the Sensorstrip power emitter PCB
Sensorstrip power emitter is an open source PCB design by eatnooM, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 56 × 13 mm, with 13 components from 10 distinct parts.
By type, the board carries 4 diodes, 4 resistors, 2 connectors, 1 fuse, 1 jumper and 1 switch.
From the project

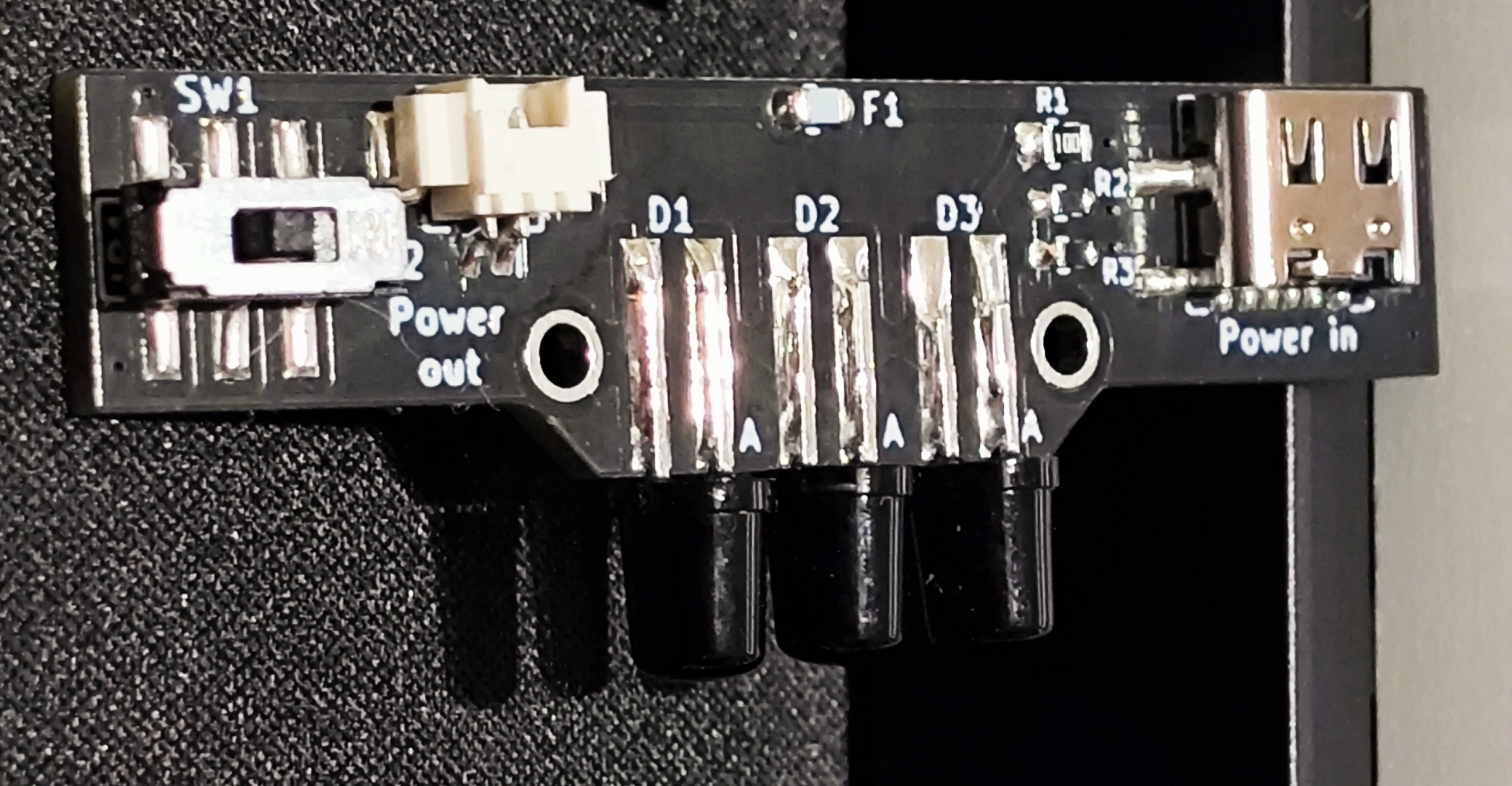

USB-C powered, slim IR emitter for use with Wii / light guns
A small and elegant board that will take 5V from its USB-C board to power its own LEDs and pass it on to any other emitter boards in your setup.
This board is ideal for the smallest setup possible with no dedicated power board.
Sensorstrip power emitter bill of materials (BOM)
13 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle_PowerOnly | DEALON USB Type-C 6Pin | J1 |
| 1 | Conn_01x02_MountingPin | Molex_Picoblade_53261-0271-Hybrid | J2 |
| 1 | Polyfuse | Fuse_0805_2012Metric_Pad1.15x1.40mm_HandSolder | F1 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP1 |
| 1 | SW_DPDT_x2 | JS202011SCQN-Hybrid | SW1 |
| 3 | LED | LED_THT-1.27mm-OrthogonalSMDAndTHT | D1, D2, D3 |
| 1 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D4 |
| 1 | 10R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 2 | 5.1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3 |
| 1 | 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4 |
Sensorstrip power emitter design files
The KiCad project lives in the eatnooM/sensorstrip repository on GitHub; these links point at the commit this page was built from.
Sensorstrip power emitter: common questions
How big is the Sensorstrip power emitter PCB?
The Sensorstrip power emitter measures 56 × 13 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sensorstrip power emitter?
13 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sensorstrip power emitter design files?
From the eatnooM/sensorstrip repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Sensorstrip power emitter design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which eatnooM chose for the repository.
