Dib kicad template
About the Dib kicad template PCB
Dib kicad template is an open source PCB design by eez-open, published on GitHub. It is a 4-layer board measuring 146 × 95 mm, with 20 components from 13 distinct parts.
Other key parts include the M24C32-WMN6P and SI8641BB-B-IS1. By type, the board carries 5 crystals, 5 capacitors, 4 resistors and 3 ICs.
From the project
EEZ DIB KiCad template
The project template makes it easy to start working on a new peripheral module and will need to be copied to your local KiCad template folder.
The template was created using symbols, footprints and 3D models from eez-kicad-libraries, so for proper display it is recommended to install that plugin.

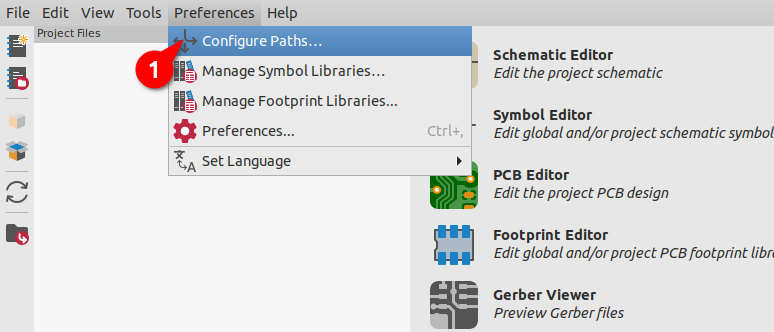

Start KiCad and in Preferences (1) open Configure Paths... (2) where you can see the currently configured Template path that you can change as desired.
Main components on the Dib kicad template
Dib kicad template bill of materials (BOM)
20 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | M24C32-WMN6P | SOIC127P600X173-8N | IC1 |
| 2 | SI8641BB-B-IS1 | SOIC127P600X265-16N | IC2, IC3 |
| 1 | 4907 | 4907 | X1 |
| 1 | ZL263-20DG | SSW-110-02-T-D-RA | X2 |
| 1 | 77317-104-28LF | 77317-104-28LF | X3 |
| 2 | 87833-1032 | DS1014-10RF1B | X4, X5 |
| 1 | ~ | DIB module front mask | FM5 |
| 2 | PCB-MB | PCB-MB-01 | KK1, KK2 |
| 4 | 100n | C_0603_1608Metric | C2, C3, C5, C6 |
| 1 | 4n7/1kV | C_1206_3216Metric | C4 |
| 2 | 470K | R_0805_2012Metric | R1, R2 |
| 1 | DR1206-33R-4/8 | CAY16 | RN1 |
| 1 | DR1206-47K-4/8 | CAY16 | RN2 |
Dib kicad template design files
The KiCad project lives in the eez-open/dib-kicad-template repository on GitHub; these links point at the commit this page was built from.
Dib kicad template: common questions
How big is the Dib kicad template PCB?
The Dib kicad template measures 146 × 95 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Dib kicad template?
20 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dib kicad template design files?
From the eez-open/dib-kicad-template repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dib kicad template design in my own project?
The repository has no license, so all rights stay with eez-open. Use it as a reference, and ask the author before reusing the design.
